What Is Up and Over Glazing

If you're planning a house extension and want to flood your new space with daylight, up and over glazing is a concept worth understanding. This guide explains what it is, how it works, and whether it's the right choice for your project.

Key Takeaways

• Up and over glazing is a continuous run of structural glass that rises vertically from the wall and turns over into a glass roof, typically joined with a frameless glass-to-glass silicone connection and minimal visible framing.

• This technique maximises natural light from multiple angles, making it a perfect way to brighten deep-plan extensions and create seamless indoor outdoor views of the garden and sky.

• Up and over glazing maximises light flow in extensions and is a form of structural glazing that must be carefully engineered for loads, movement, and thermal performance to comply with UK building regulations.

• Recent Fluid Glass projects at Sea Breeze, Courthope Road, Kensington, and Hill Rise demonstrate how the concept works across different UK house types, from coastal homes to London terraces.

• Homeowners should involve an architect and glazing specialist early, understand cost drivers, and consider orientation, solar control, and planning constraints before committing.

Up and over glazing is a glazing arrangement where a vertical pane of structural glass continues uninterrupted up the wall and then turns over into a glass roof or rooflight. The two planes of glass are linked at the eaves with a frameless glass-to-glass joint, forming a continuous L-shape of glass that removes the solid brick wall section you would normally see between a window and a separate rooflight.

Structural glazing allows for frameless glass designs, and structural glazing includes frameless glass systems for extensions. Rather than conventional windows below a separate skylight, up and over glazing uses structural silicone, hidden steel supports, and minimal aluminium profiles to achieve a near-invisible junction. Frameless glazing allows for cleaner glass-to-glass connections, so the result is a seamless opening rather than a framed interruption.

It is used to create a seamless connection between indoor and outdoor spaces. Common applications include residential extensions, glass links, and atriums. You will most often see it in rear kitchen-dining extensions, side-return infills on London terraces, and contemporary glass box extensions on period properties. A typical example might be a full-height glass wall beside the dining table that then turns overhead into a clear glass ceiling running 1.5 to 2.0 metres into the extension.

This glazing technique maximises natural light from multiple angles, bringing daylight from both the side and above. Overhead glazing floods extensions with natural light, meaning rooflights reduce reliance on artificial lighting even in deep-plan rooms where standard windows alone would leave the interior dim. The technique allows for deep, unobstructed natural sunlight to enter interiors that would otherwise depend on electric fixtures throughout the day.

Up and over glazing can enhance the spatial quality of smaller and darker spaces. Overhead glazing visually enlarges rooms by connecting to the sky, giving even a modest floor area a sense of openness and volume. Rooflights should be positioned for optimal light entry to highlight key areas such as a kitchen island or dining table, and the glass roof section above these zones makes the ceiling feel higher and the room feel dramatically larger.

Clients often report that the uninterrupted views to the garden and sky transform how they use their space. The glass corner effect creates a strong connection between the interior and exterior spaces, making a bright, year-round living environment even in winter. From a property perspective, up and over glazing is seen as a premium architectural feature that can set a house extension apart in the resale market, adding both style and perceived value.

In an up and over arrangement, laminated and toughened panes carry wind, snow, and self-weight without bulky frames. Safety glass is often reinforced, heat-treated, and laminated to withstand structural loads, which is especially critical for overhead panels that must retain broken pieces.

The key detail is the joint at the eaves: a frameless glass-to-glass structural silicone connection where the vertical pane meets the glass roof. Hidden support strategies include concealed steel angles, minimal aluminium channels recessed into the floor, wall, and roof build-ups, and careful integration with the waterproofing layer. Large glass panels may require additional structural support depending on span and exposure, and careful engineering is required for structural support and thermal performance on every project.

Thermally broken profiles achieve Uw values of 1.1 to 1.2 W/m²K in double-glazed assemblies, with low-E coatings, argon-filled cavities, and warm-edge spacers helping to reduce heat loss and condensation. Up and over glazing must comply with UK building regulations: Part A for structure, Part L for energy efficiency, and Part K for safety glass requirements overhead. For complex arrangements or exposed coastal sites, finite element analysis may be required to verify the structural requirements.

Design variations range from modest eaves windows to full-height disappearing corners. The strongest current trend is toward frameless glazing and invisible junctions, where carefully detailed structural glass makes the transition between wall and roof almost impossible to see. Overhead glazing enhances the aesthetic appeal of extensions, and rooflights can highlight key areas in open-plan spaces.

Integration with glazed doors is increasingly popular. Up and over glazing running alongside a minimal sliding door track or a folding door system creates a fully glazed wall-and-roof composition. Modern configurations in 2024-2026 UK residential projects typically feature 2.5 to 3.0 metre-high vertical panels turning into 1.2 to 2.5 metre-deep glass roof sections. Advanced systems like Fluid X Vertical can achieve Uw values around 0.58 W/m²K in large-format triple glazing, pushing insulation performance well beyond current Part L minimums.

Material choices include low-iron glass for colour neutrality, ceramic fritting or internal blinds for solar control, and black or bronze aluminium detailing for a contemporary look. Whether the existing house is timber-framed, brick, or rendered, the glazing can be adapted to suit.

These built examples from Fluid Glass show how up and over glazing works in real UK homes across different locations and conditions.

Sea Breeze, Herne Bay (Kent, 2023): This coastal house uses a 2.5 metre-high vertical frameless glass pane silicone-jointed to a 2.0 by 1.8 metre rooflight. The up and over arrangement maximises sea and sky views while using marine-grade finishes, corrosion-resistant fixings, and solar-control glass to withstand wind and salt air. Finite element analysis was carried out to verify durability in this exposed setting.

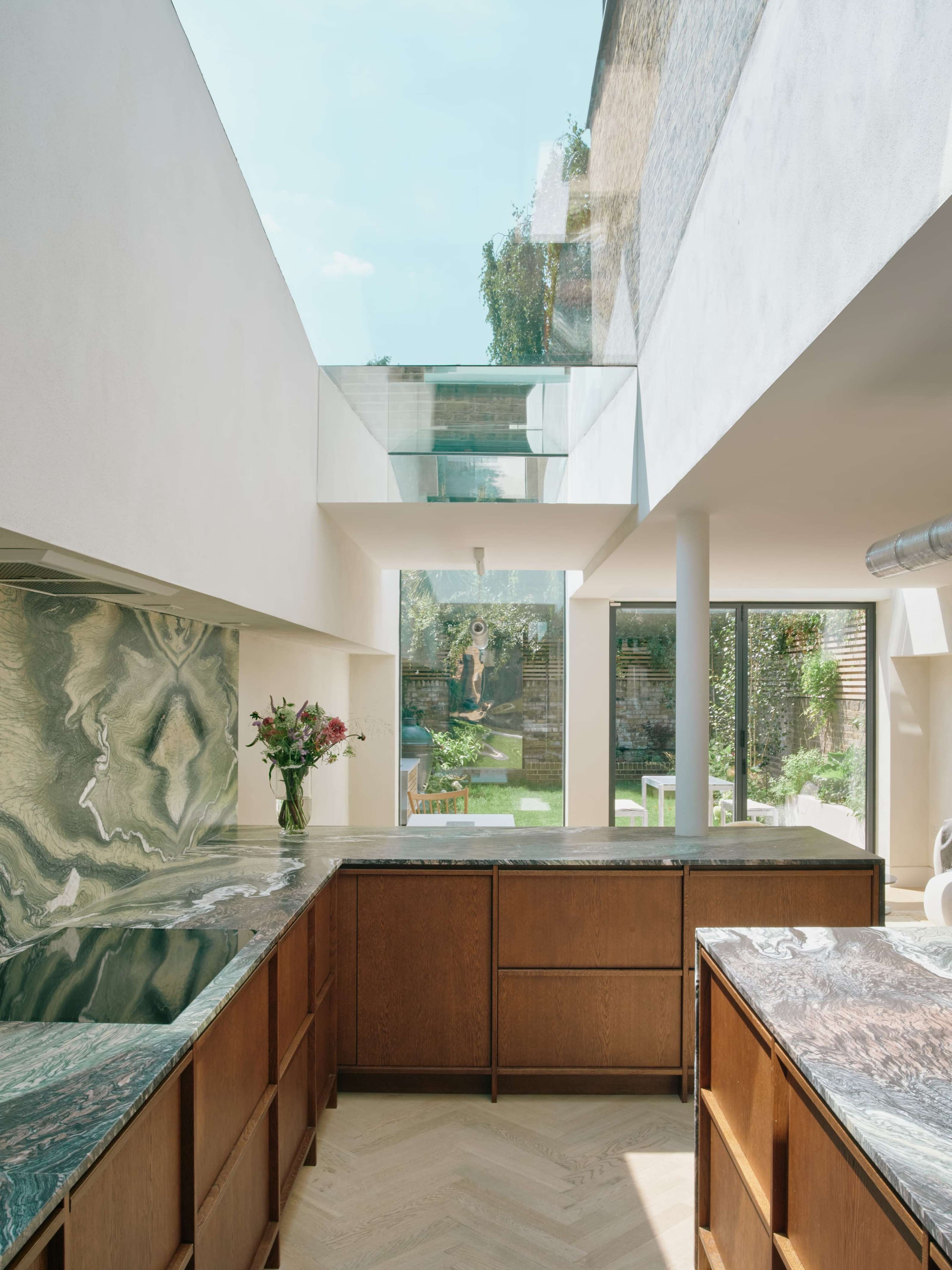

Courthope Road, North West London (2022): Designed by Paul Archer Design, the Fluid X up and over structural glazing detail rises full-height beside the dining area before turning overhead via a frameless glass-to-glass joint. Combined with a folding door and two frameless skylights, the composition delivers extra light and a bright, space-efficient rear glass extension with near-invisible corner framing.

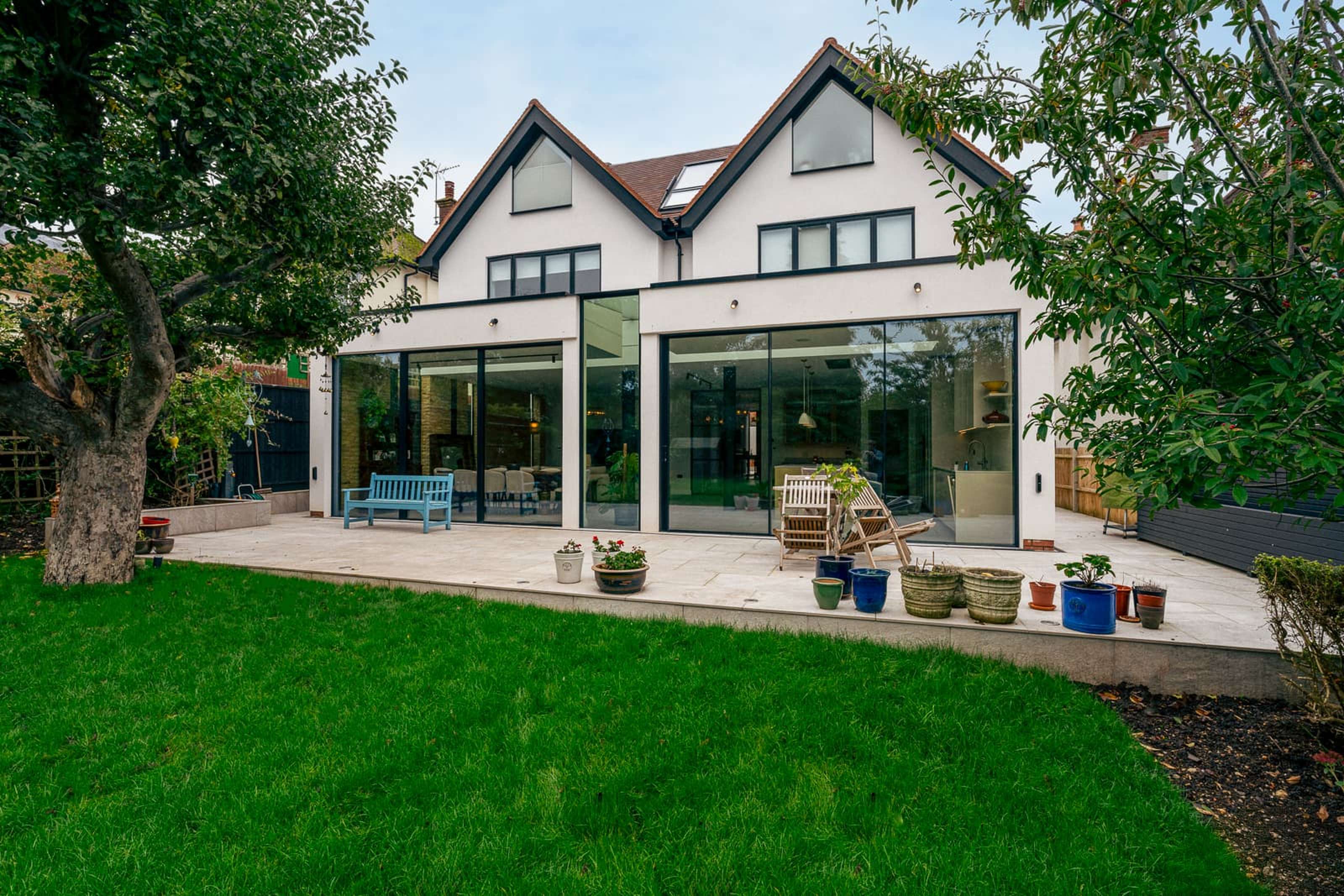

Hill Rise, Rickmansworth (2020): RS Architects specified a frameless structural glass roof and an eaves window that extends up the wall into the roof, creating a seamless up and over effect. Paired with an ultra-slim three-track sliding door, the near-invisible threshold floods the open-plan living room with daylight and creates a strong connection to the garden outdoors.

Kensington, Edwardes Square (2021): This refined glass extension by Richard James Hastings Architecture uses frameless structural glazing, a frameless glass roof, and a full-height structural glass panel around a 3 metre-high aluminium pivot door. Low-emissivity coatings and concealed steel supports achieve both thermal performance and a clean aesthetic that suits the heritage setting.

Up and over glazing is most beneficial for deep-plan kitchen-diner extensions where sunlight struggles to reach the back of the room, side-return infills where neighbouring walls block light from the side, and any project where a strong indoor outdoor connection is a design priority.

Key questions to consider before committing:

• Orientation: South- and west-facing gardens deliver more solar gain but need solar control. North-facing gardens still benefit from overhead daylight.

• Privacy: If neighbours overlook the site, a full glass wall and glass roof may affect comfort. Solid flank walls or fixed privacy panels can help.

• Structure: Existing walls and foundations may need reinforcement to support large glass panels. Your structural engineer will confirm whether new steels or deeper foundations are necessary.

• Planning: In conservation areas or on listed buildings, planners may scrutinise reflectivity and form. Architects experienced in heritage contexts can help navigate these sensitivities.

Up and over glazing can be scaled from a modest 800mm-deep eaves rooflight over a small window to a full-width structural glass roof turning down into a 3-4 metre-wide glass wall. Consider pairing it with minimal sliding or pivot doors, a solid brick wall flank for privacy and storage, and carefully positioned solid roof areas for services and security lighting.

Costs are driven by glass size and thickness, bespoke structural engineering, site access for delivering large panels, and the level of detailing required. A modest up and over detail around 2.0 metres wide might sit in the low five-figure range installed, with larger or coastal compositions increasing cost due to thicker structural glass and more demanding engineering. Glass type impacts thermal efficiency and security, so specification choices directly affect the final price.

Structural glazing can achieve Uw values of 1.1 to 1.2 W/m²K with thermally broken double-glazed units, meeting current Part L energy efficiency standards. Solar control coatings on south- and west-facing panes help manage heat gain, while internal blinds or fritted glass bands reduce glare over seating areas.

Maintenance is straightforward: periodic cleaning of the overhead and vertical panes, checking silicone seals, and keeping gutters clear around the glass junction. Self-cleaning coatings reduce visible dirt on the roof glass. Laminated overhead glass provides safety, and corrosion-resistant fixings on projects like Sea Breeze ensure a long design life with minimal intervention.

Involve a specialist glazing company early in the design of your extension so that glass sizes, deflection limits, and support details can shape the steelwork and roof build-up from the outset. The typical collaboration head involves the architect leading spatial layout and aesthetics, the structural engineer checking loads and movement, and the glazing team coordinating glass thicknesses, joints, tolerances, and installation sequencing.

Before a first conversation, gather your approximate extension dimensions, roof form, orientation, existing drawings if available, and any planning constraints. Up and over glazing will be assessed under building regulations for structure, energy, and safety, and planners may be particularly interested in reflectivity and appearance in tight urban or heritage contexts.

Ask potential glazing suppliers for examples of previous up and over projects, sample details, and performance data. The Fluid Glass projects referenced above demonstrate experience across coastal, suburban, and central London settings, providing a useful benchmark for what can be achieved.
