Fluid Eaves Rooflight: Up-and-Over Glazing at the Eaves

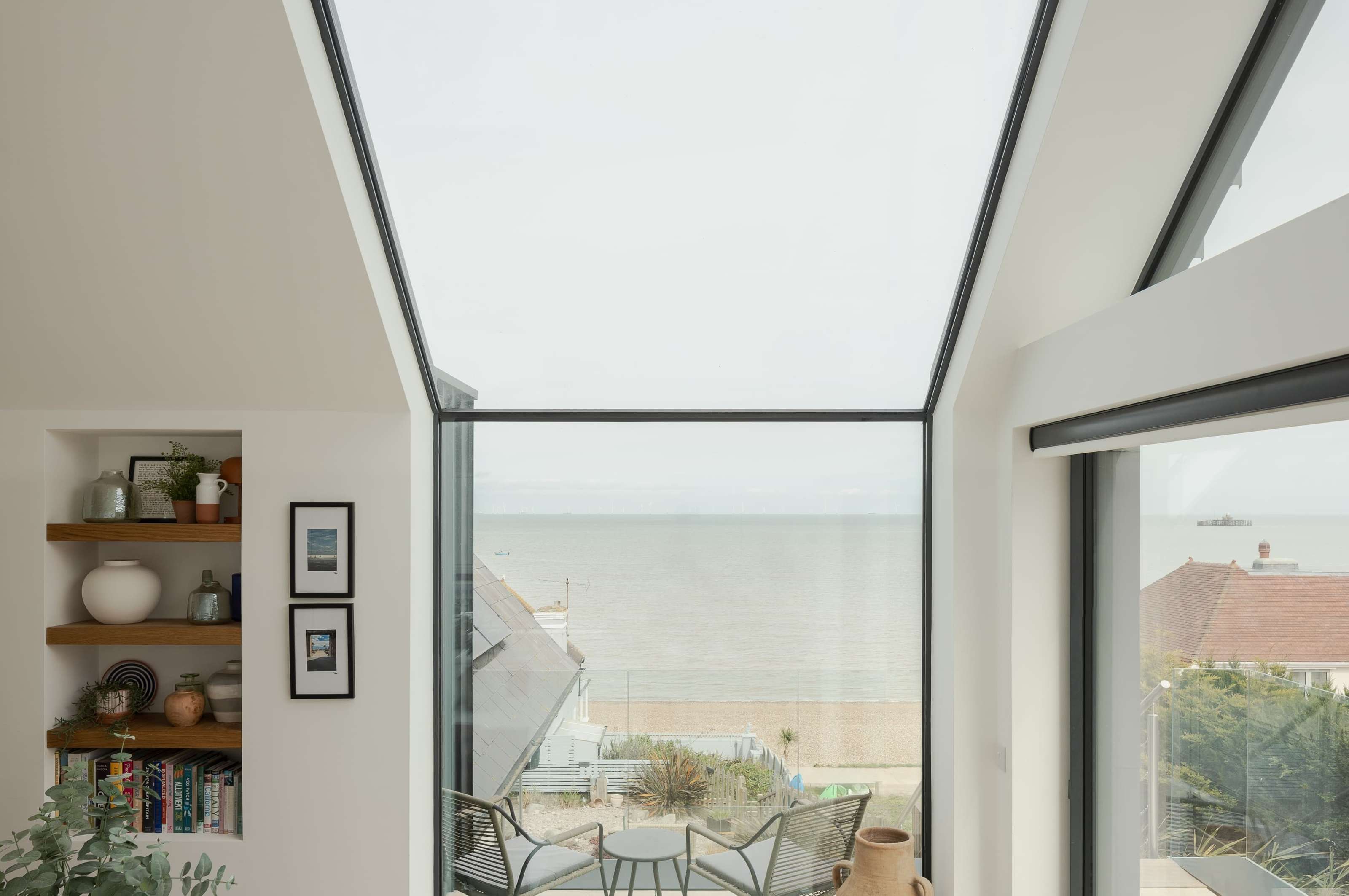

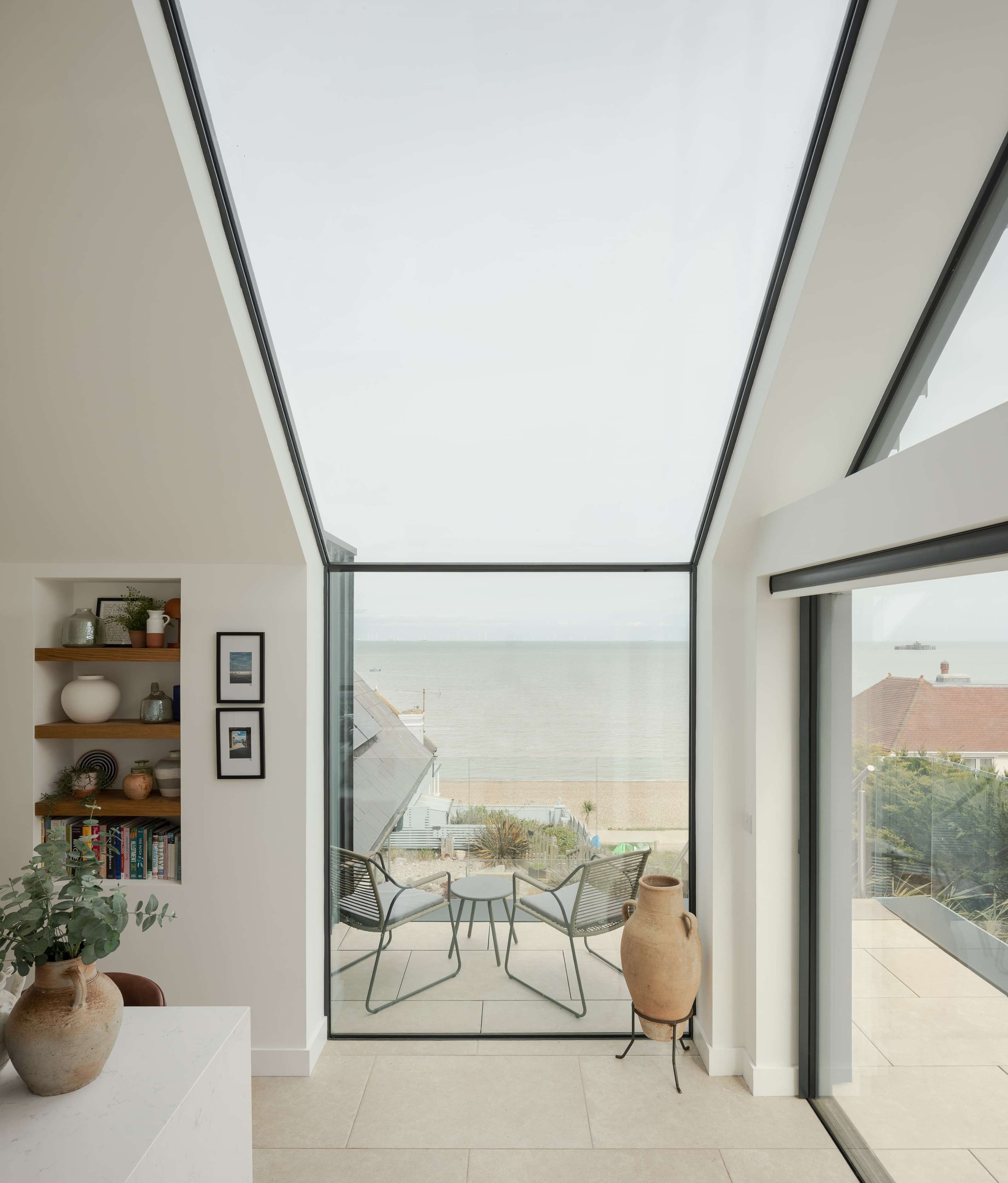

The usual way to light a single-storey extension is a glass wall with a rooflight above it: two systems, a structural upstand between them, and a visible break where one stops and the other starts. An eaves rooflight is a single glazing system that runs from the vertical wall up into the roof plane, joined at the eaves, and it suits extensions and glazed links in buildings where a continuous envelope matters. It brings daylight into the interior from two directions, capturing light from both overhead and vertical angles rather than treating wall glazing and roof glazing as separate elements. For architects, homeowners and developers weighing this approach, this page covers the Fluid Eaves Rooflight in practical terms: its structural junction, thermal performance, drainage, installation, cost, where it works best, and why it can outperform a conventional wall-and-rooflight setup. The extension reads as one form, with a stronger sense of space and openness inside — the kind of interior effect that matters when the ceiling line is as important as the view.

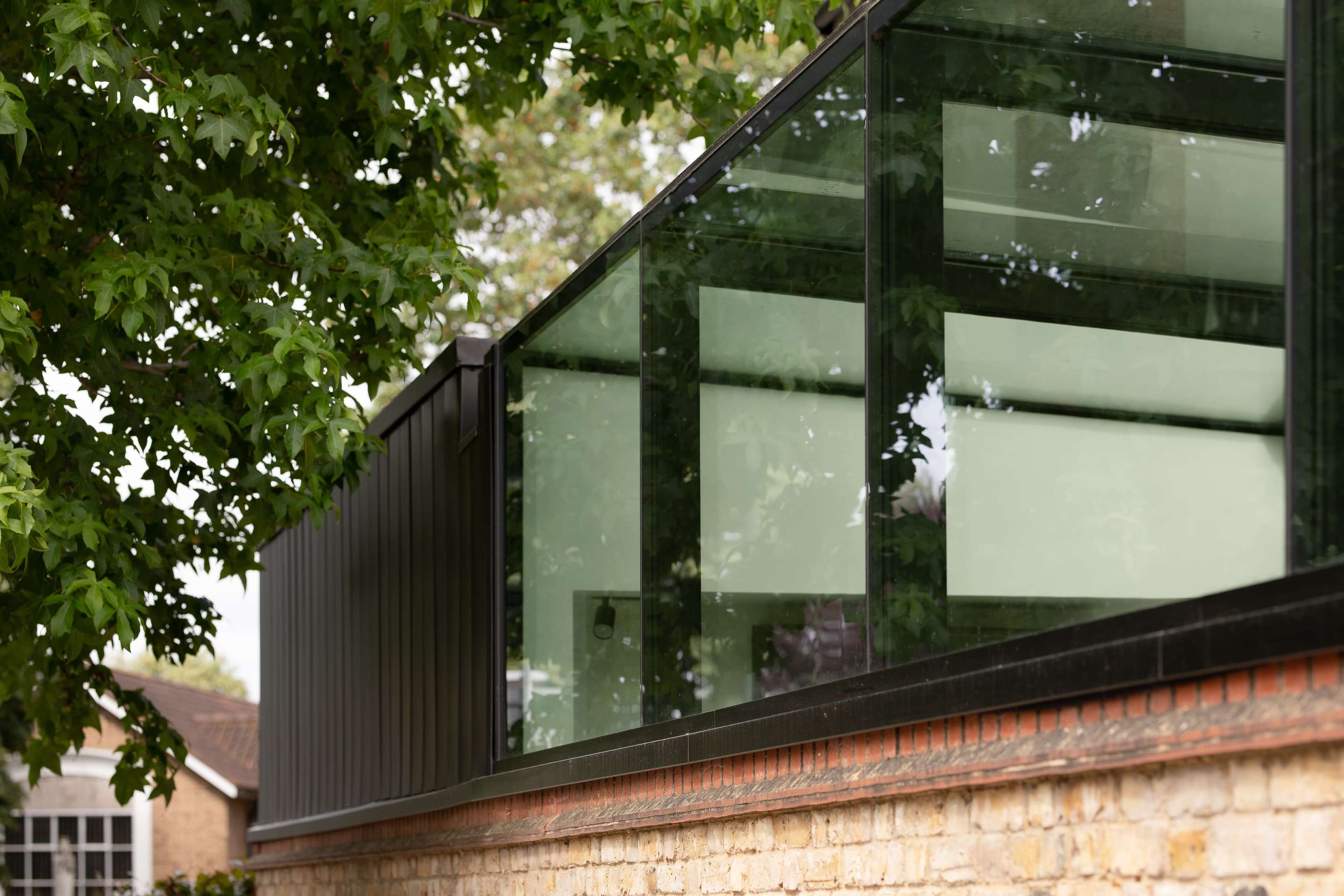

The system that glazes the wall continues into the roof, so the junction is a silicone joint between two panes of the same build-up rather than an interface between a glazing system and a rooflight system. That is the difference between a genuine up-and-over detail and a wall with a rooflight bolted to the top of it, and it is why the sightline holds through the turn.

The roof plane spans 3.6m without a rafter crossing it, on elevations up to 6m in height. Within the range, suitable specifications can also be designed as long elevations or runs, with eaves rooflights reaching depths of nearly 20 metres. On a typical single-storey rear extension that is the full depth of the glazed roof in one unbroken surface. Units run to 69mm triple glazed, and the structure carrying the glass sits outside the glazed area rather than through it.

The glass-to-glass joint where vertical meets overhead has to meet structural requirements, shed water, absorb the differential movement of two planes that expand at different rates, and stay invisible. Ours is structurally silicone jointed with a stepped edge detail, with load support resolved in the supporting structure before installation: the roof pane oversails the head of the vertical pane so run-off carries clear of the joint rather than sitting on it. Most of what goes wrong with up-and-over glazing goes wrong at that joint, and a step is a more reliable answer than a seal alone.

The system is face drained — rainwater runs across the face of the glass and off the edge rather than being collected in a channel and piped away. There is no gutter to block, no internal drainage to fail and no upstand to conceal it. It is the simplest detail available and, over ten years, the one least likely to cause a problem.

The overhead glass is toughened laminated and rated for maintenance loading, with safety in mind for someone accessing it to clean or inspect. It is not walk-on rated and should not be specified as an accessible surface. If you need glass you can walk on, that is a different build-up and a different product: see our walk-on glass floors. This is a fixed overhead glazed section, not an accessible walking surface.

With triple glazed, the system reaches a whole-window U-value of 0.9 W/m²K — frame and glass together, calculated on a 2 × 2m window with a glass U-value of 0.6. Double glazed is 1.1 on a Ug of 1.0. These are Uw figures, not centre-pane. A 30mm polyamide thermal break runs between the inner and outer aluminium, and the system is thermally broken throughout, with fixings passing through the aluminium ahead of the break so no fastener bridges warm to cold; paired with high-performance glazing, that improves thermal performance, reduces heat loss and supports better energy efficiency.

An eaves rooflight is set out across two planes that must align within a few millimetres at the junction, and the silicone is applied on site. As part of the specification process, survey and installation are handled as one coordinated process. We survey, supply and install, with our technical team managing panel sizing and install coordination, so the dimensions that size the panels and the team that sets them are the same. That combination reduces risk on each project. Panels at this scale need a crane or a glass-lifting robot, planned at survey rather than discovered on delivery, with lifting coordination agreed early with builders.

It beats a rooflight where the roof is shallow and single-storey, where the ceiling line is part of the design, where a structural upstand would be visible from inside, and where the glazed area is large enough that a break across it would be conspicuous.

It does not where the glazed area is small, where the roof is steeply pitched, where the glass needs to be walked on, or where budget matters more than the ceiling line — in which case a flat rooflight over a structural glass wall does the same job for less.

Architects — for single-storey extensions where roof and wall should read as one plane. Request the eaves junction detail, span tables and per-configuration U-value calculations.

Homeowners — for a kitchen or garden room where you want the sky in the room rather than a rooflight above it.

Developers — where one glazing system across wall and roof removes an interface, and with it a warranty boundary between two suppliers.
