Fluid X Pivot Door: Oversized Glass Pivot Doors up to 5m High

A pivot door rotates on a pivot point set into the floor and head, rather than on hinges fixed to one side of the frame. Because the weight sits on the pivot and not the jamb, the leaf can be far taller, wider and heavier than a hinged door, opening with very little effort while enhancing aesthetic appeal and bringing in natural light. Glass pivot doors are typically used as a statement front door, a garden or terrace door beside full-height glazing, or an internal pivoting screen between rooms. The Fluid X Pivot Door is the version of that idea built to the same rules as the rest of the Fluid X range: a 45mm sightline, a frame-integrated handle, hidden hardware and evidenced performance, giving it a clean read as a plane of glass rather than a frame.

For architects, homeowners and developers, the decision usually comes down to whether a pivot door can be both the feature and a properly performing external door. This page covers what defines a pivot door, the Fluid X Pivot Door, its sizes and configurations, thermal, acoustic and weather performance, security, compliance with UK building regulations, and where it is specified.

The Fluid X Pivot Door has a 45mm sightline. That is deliberately the same visual width as the Fluid X sliding door's frame and the Fluid X Vertical structural glazing it usually sits beside, so a pivot entrance, a run of sliding doors and a fixed glass wall on the same elevation read as one system rather than three. The handle is integrated into the frame profile, the pivot hardware is concealed in the floor and head with a modern aesthetic in mind, and there are no visible hinges, closers or arms. The frame can be set into the reveal so that only the glass and the 45mm line remain, helping create a clean, minimal finish.

Pivot systems are valued for their ability to support exceptionally large glazed panels, often beyond 3m high and 1.5m wide; the Fluid X Pivot Door carries a single leaf up to 5m high, 8m² and 500kg, on glass up to 44mm thick — enough for a full-height double- or triple-glazed unit. The pivot is engineered for that weight from the outset, so the leaf turns smoothly at maximum size and stays true over years of use.

• Door, one leaf — the standard statement entrance or garden door.

• Door, one leaf between two fixed panels — a wider glazed opening with the pivot as its centre.

• Window, one or two leaves — the same pivot used as a pivoting window or an internal screen.

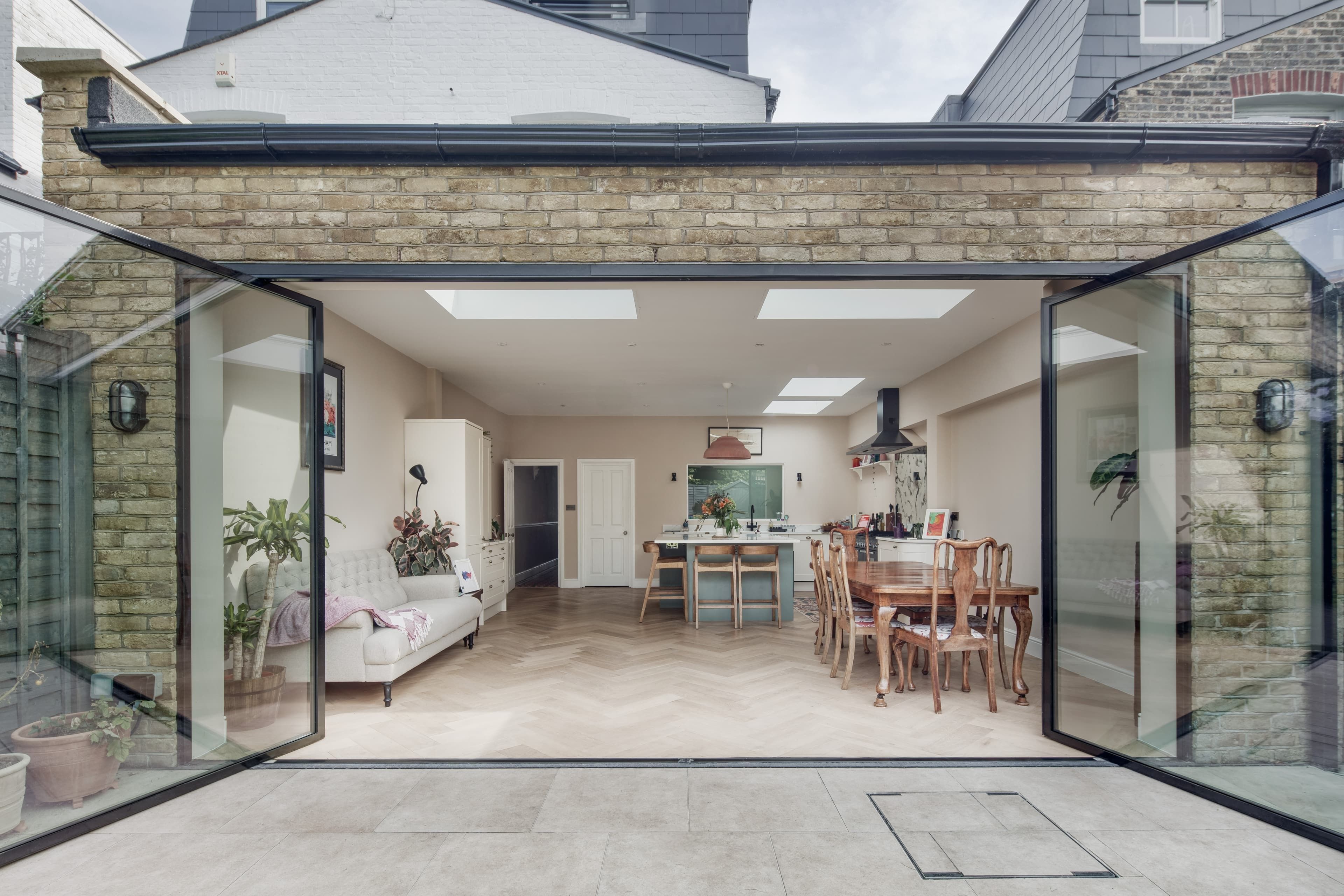

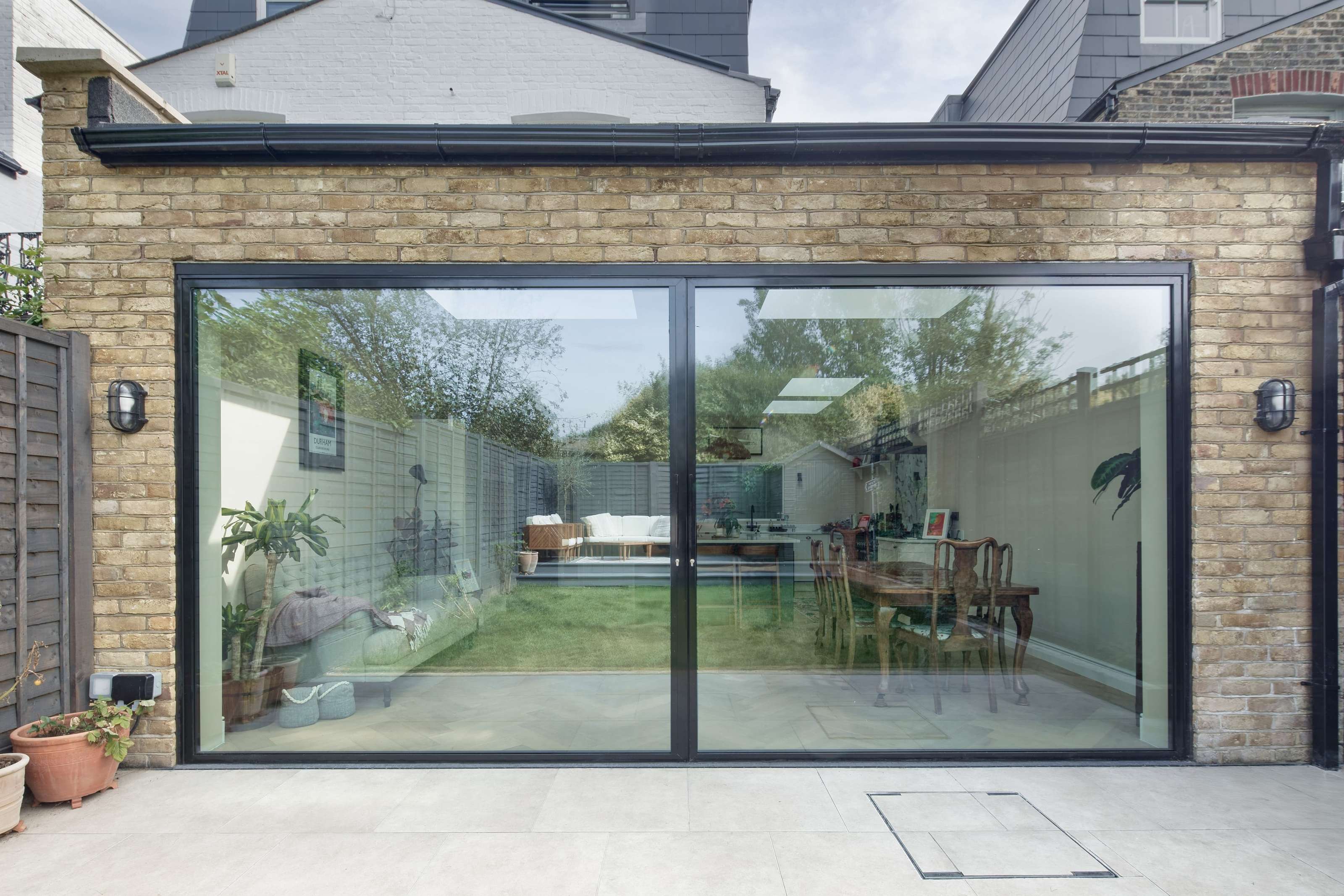

The leaf can be fully glazed, or built as a solid or mixed-material panel (the EXP REV cladded leaf) that takes timber, stone or metal to match the adjoining wall. The opening angle is up to 180°, allowing the door to lie flat against the wall when open. Sufficient clearance space is needed on both sides for the swing movement. At Putney, a pair of 240kg leaves form a 5.2m-wide by 2.5m-high double pivot opening from the living room to the garden; in broader glazed pivot-door arrangements, openings can extend up to 12 metres wide.

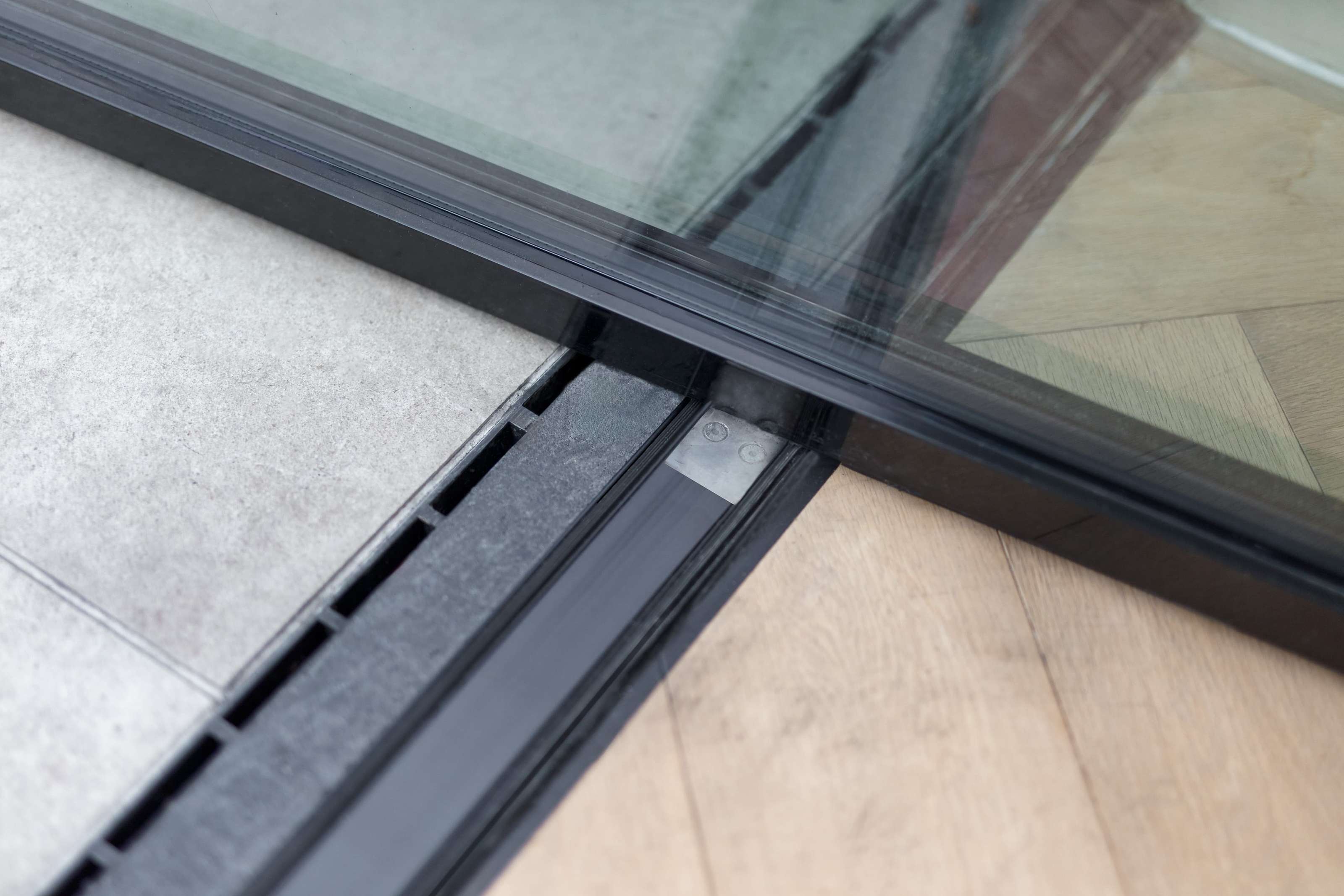

A pivot door is only ideal if it performs as an external door, and this is where the Fluid X differs from a bespoke joinery pivot. The thermally broken aluminium frame and low-E double or triple glazing give a whole-door U-value (Uw) of 1.1 W/m²K, with acoustic insulation up to 41dB. Weather ratings match the sliding door: air permeability Class 4, water tightness Class 9A and wind resistance Class C5. Continuous seals run the full perimeter, including across the pivot point, and an integrated slot drain can be specified at the threshold to manage driven rain on exposed elevations. Performance is evidenced for your exact configuration rather than estimated: under the Future Homes Standard we provide the tested U-value for the door as specified, helping you select the right specification for the project.

The leaf uses a concealed pivot mechanism that lets the door rotate on top and bottom pivot hardware, so nothing shows on the face of the door. The pivot can sit at the edge of the leaf or be offset from it, which changes how the door divides the opening when it stands open, and the pivot mechanism distributes the weight of the glass evenly across the floor and ceiling with controlled resistance so a 500kg door can be moved with one hand in smooth, effortless operation and comes to rest without slamming. Because the floor pivot and the slot drain are set into the floor build-up, they are best planned at design stage with precision: the threshold zone needs to allow for the pivot box and drainage rather than being cut in later.

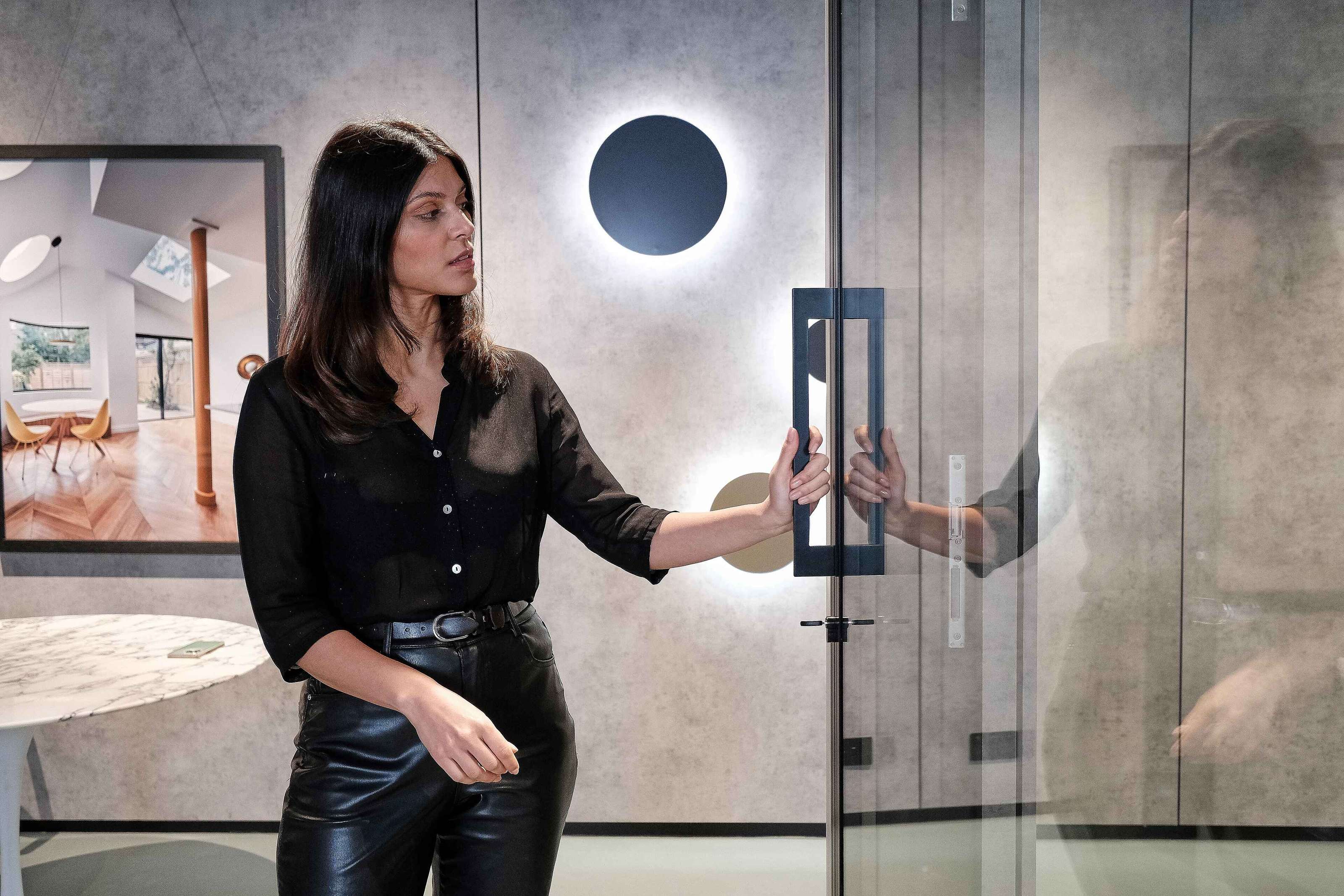

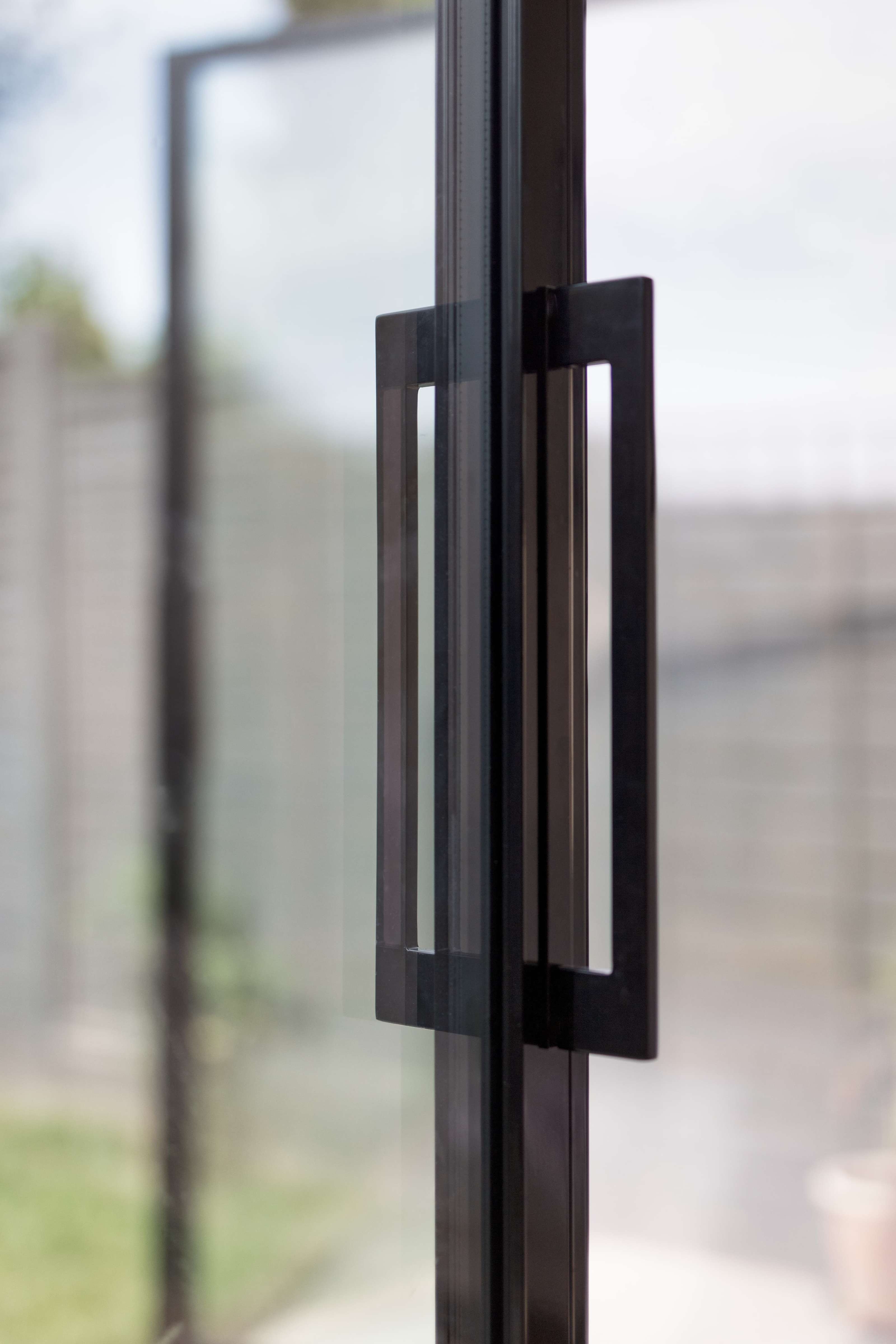

Yes. The Fluid X Pivot Door has multipoint locking that engages along the closing edge, a handle built into the frame profile, and locking from both the inside and the outside, so it works as a front door and not only as a feature. Laminated glass can be specified where enhanced security or sound insulation is required, and an alarm contact can be built into the frame. The micro-ventilation option lets the door stand locked in a slightly open position for airflow.

Correctly specified, yes. Thermal performance is evidenced to Approved Document L and the Future Homes Standard; glazing at low level is safety glass — toughened or laminated — under Approved Document K and BS 6262-4; and where the door is a principal entrance, the threshold and clear opening can be detailed to Approved Document M. Professional installation is part of that compliance: compared with a traditional hinged door, a pivot installation demands more precise structural engineering and preparation to ensure the necessary level, alignment, and strength for seals and locking to perform as tested. It also requires robust overhead header support and a solid subfloor. Before it is installed, check that the rough opening is square and plumb. Also check that side tolerances meet the required 5 mm to 20 mm allowance on each side.

Architects — where the entrance needs to carry the same 45mm language as the glazing around it, at a scale hinges cannot reach. Request CAD details, section drawings and evidenced performance data to specify with confidence.

Homeowners — for a front door, garden door or internal screen that becomes the defining move of a renovation or new build, suiting a contemporary home and different architectural style preferences without giving up warmth, security or weather performance.

Developers — where a single, repeatable entrance detail with evidenced performance supports the positioning of a scheme, and where the same pivot can be used across door and window products from one plot to the next.

Project image: Putney

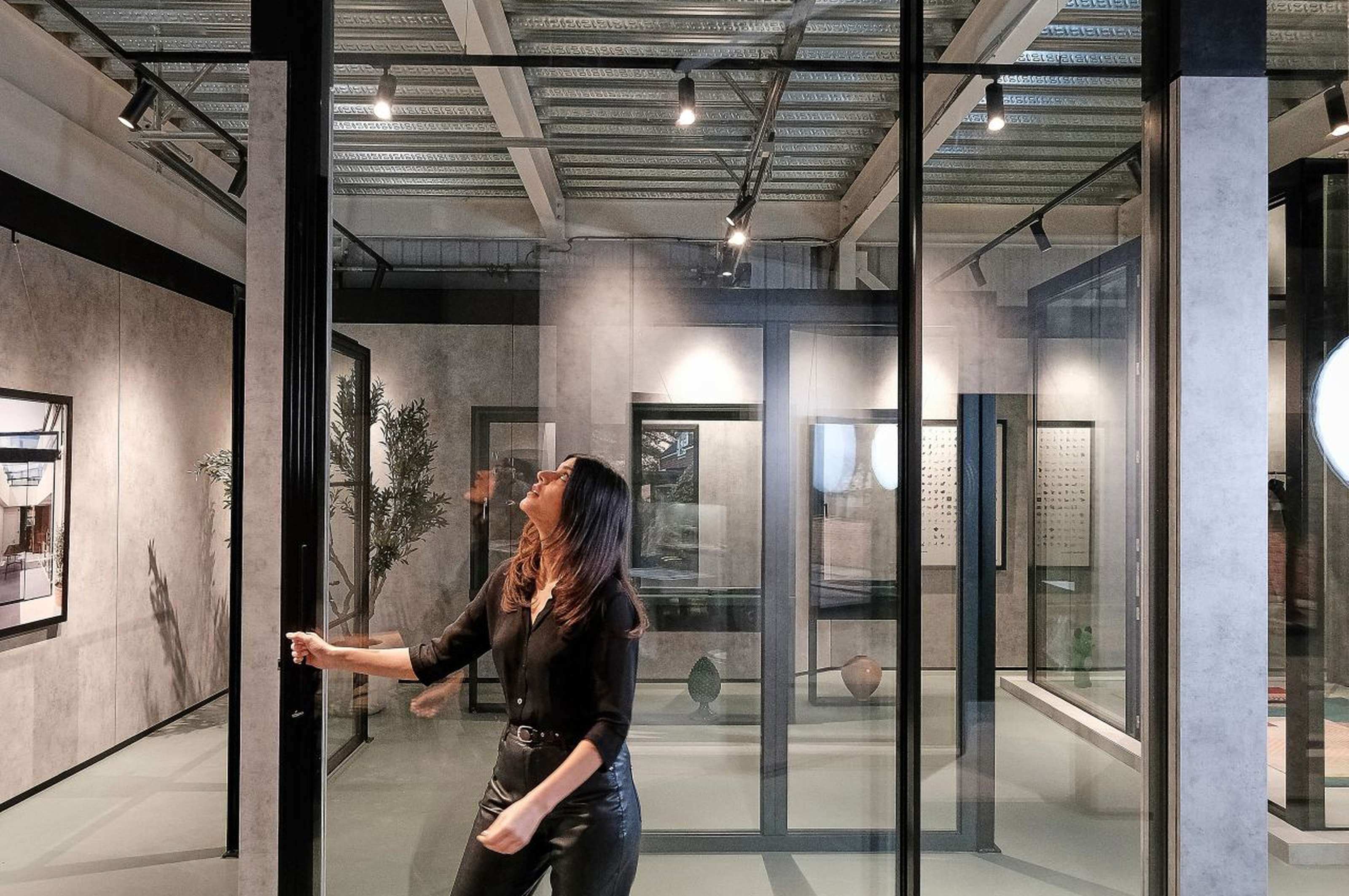

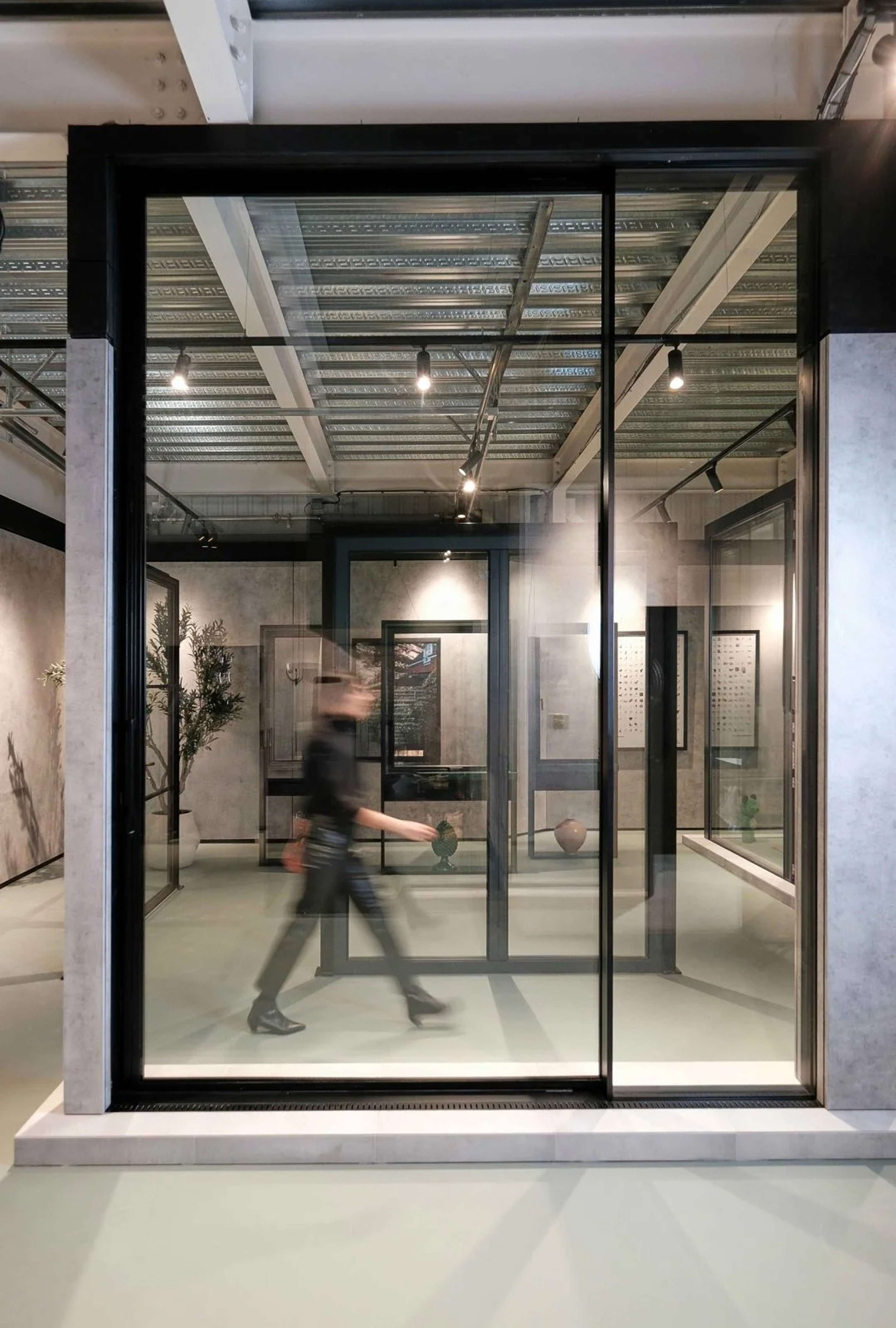

Fluid Glass designs, engineers, fabricates and installs its pivot doors in-house, so the pivot, the floor detail and the glass are coordinated by the same team from drawing to handover. The Fluid X Pivot Door shares its sightline and finishes with the Fluid X Sliding Door and Fluid X Vertical Structural Glazing, so one supplier can deliver the whole elevation. Performance is evidenced rather than estimated, and our work has been featured in Dezeen, Wallpaper*, ArchDaily and the RIBA Journal. See the pivot door at Putney, Kensington and Ashmead Barn, or step into our Watford showroom to open one and experience it in person.
