Fluid TT Window: Tilt and Turn Aluminium Windows, Concealed Handle

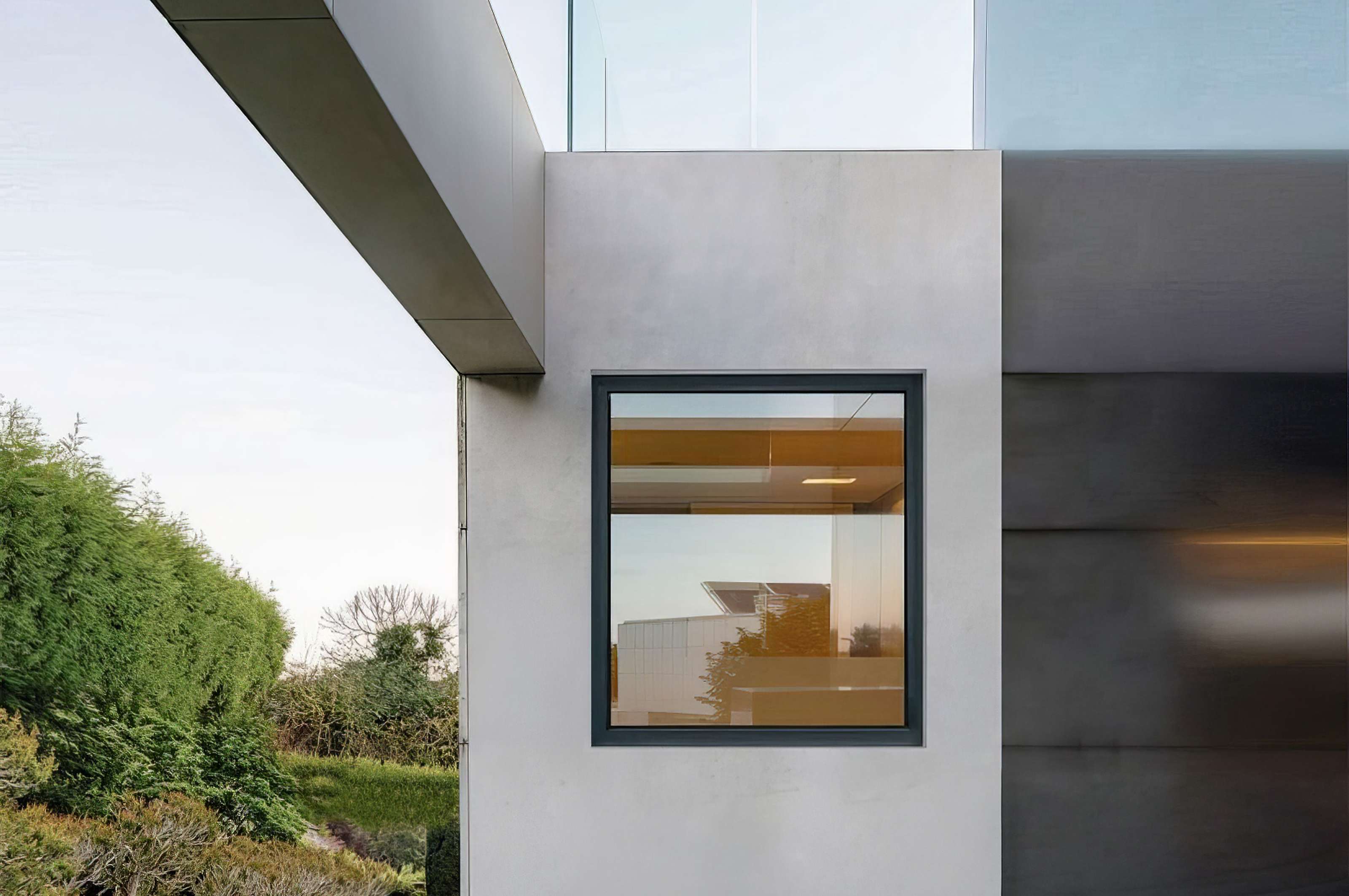

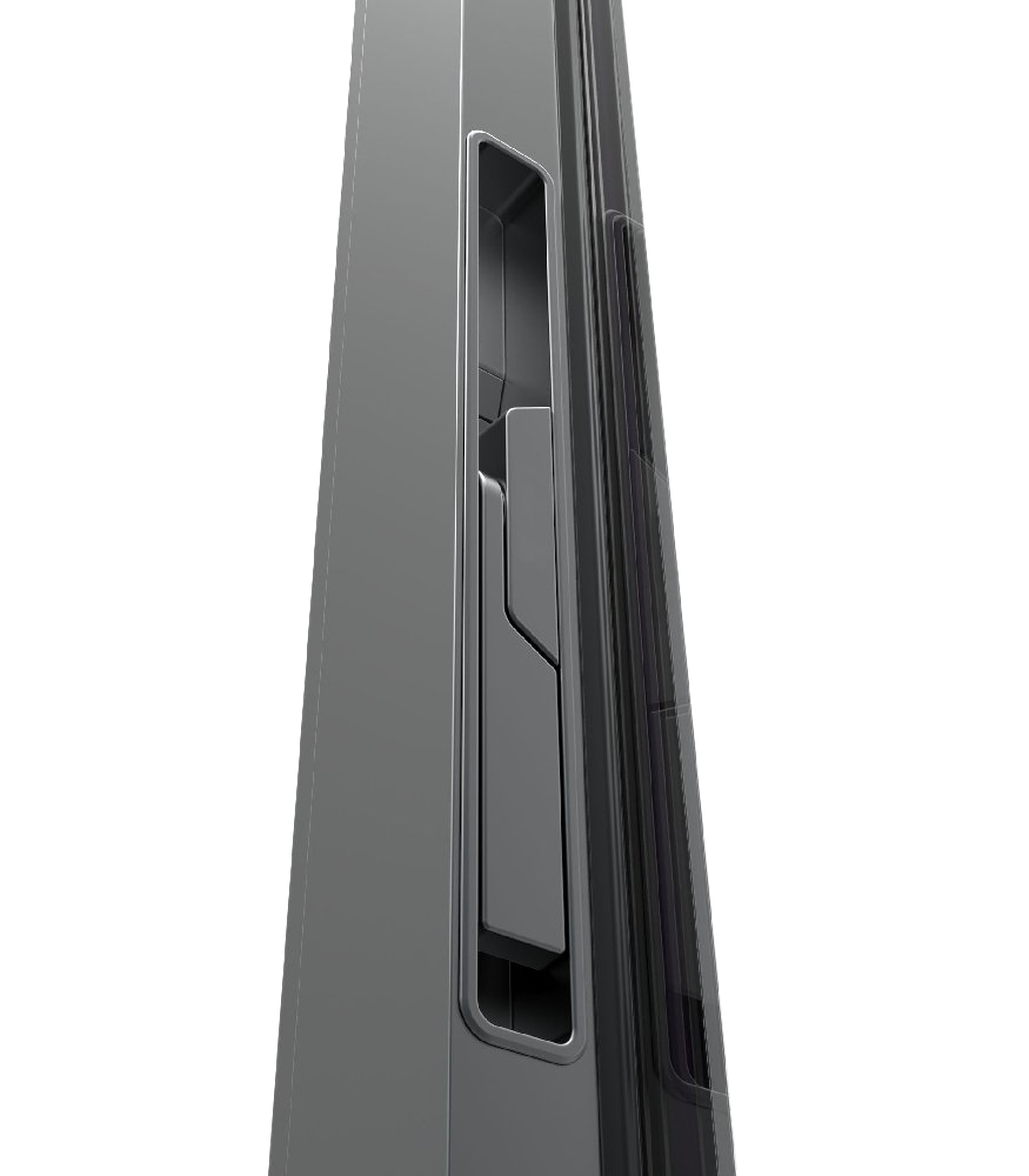

The handle is concealed within the sash, so from inside and outside the window shows no hardware at all and reads as a fixed light, giving it a more modern, elegant style. That is the defining feature of the system and the reason it is specified on elevations where a visible handle would break the composition. Hinges are concealed to match. This concealed detailing also supports large glass areas and slim frames for a cleaner appearance.

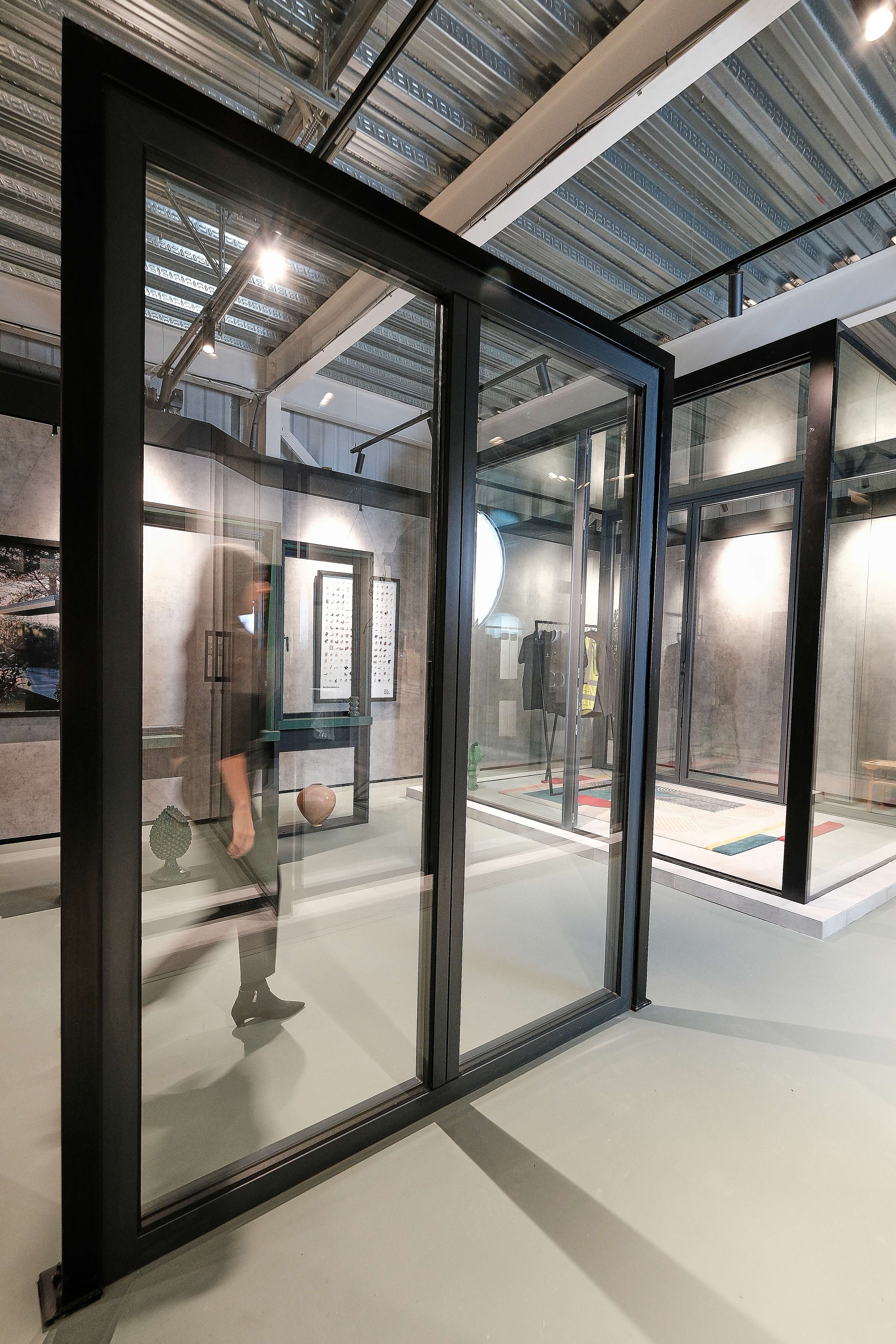

Most aluminium tilt and turn systems stop at around 3m. The Fluid TT Window carries leaves to 3.5m at weights up to 160kg, with a 40mm glazing capacity, which brings full-height openings within reach of an opening window rather than requiring fixed glazing plus a separate vent, while the larger format helps maximise natural light. This can also save space compared with splitting the elevation into separate fixed and opening windows. The 70mm frame depth is what carries the additional weight.

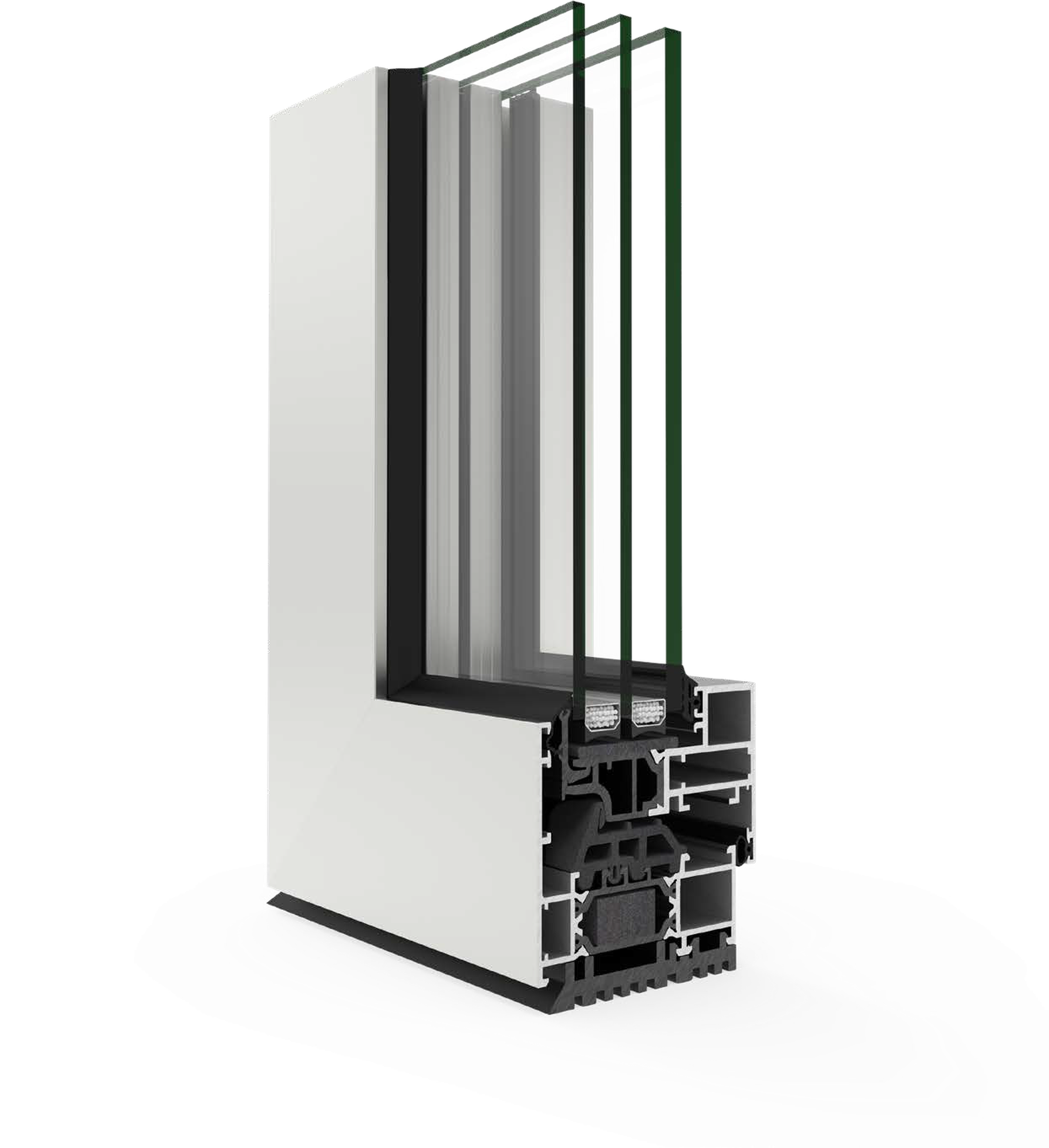

The thermally broken aluminium frame delivers strong thermal performance and energy efficiency, achieving a whole-window U-value of 1.0 W/m²K with acoustic insulation to 46dB — the highest figure across the Fluid Glass window systems, and the reason it is specified on city-centre and roadside elevations. Insulation is further improved by multi-chamber profiles, helping lower energy bills significantly. Air permeability is Class 4 and wind resistance Class C5. double glazed and triple glazing options are available, with triple glazed specifications reducing u-values to 1.2 W/m2K and A-rated energy efficiency ratings achievable depending on specification.

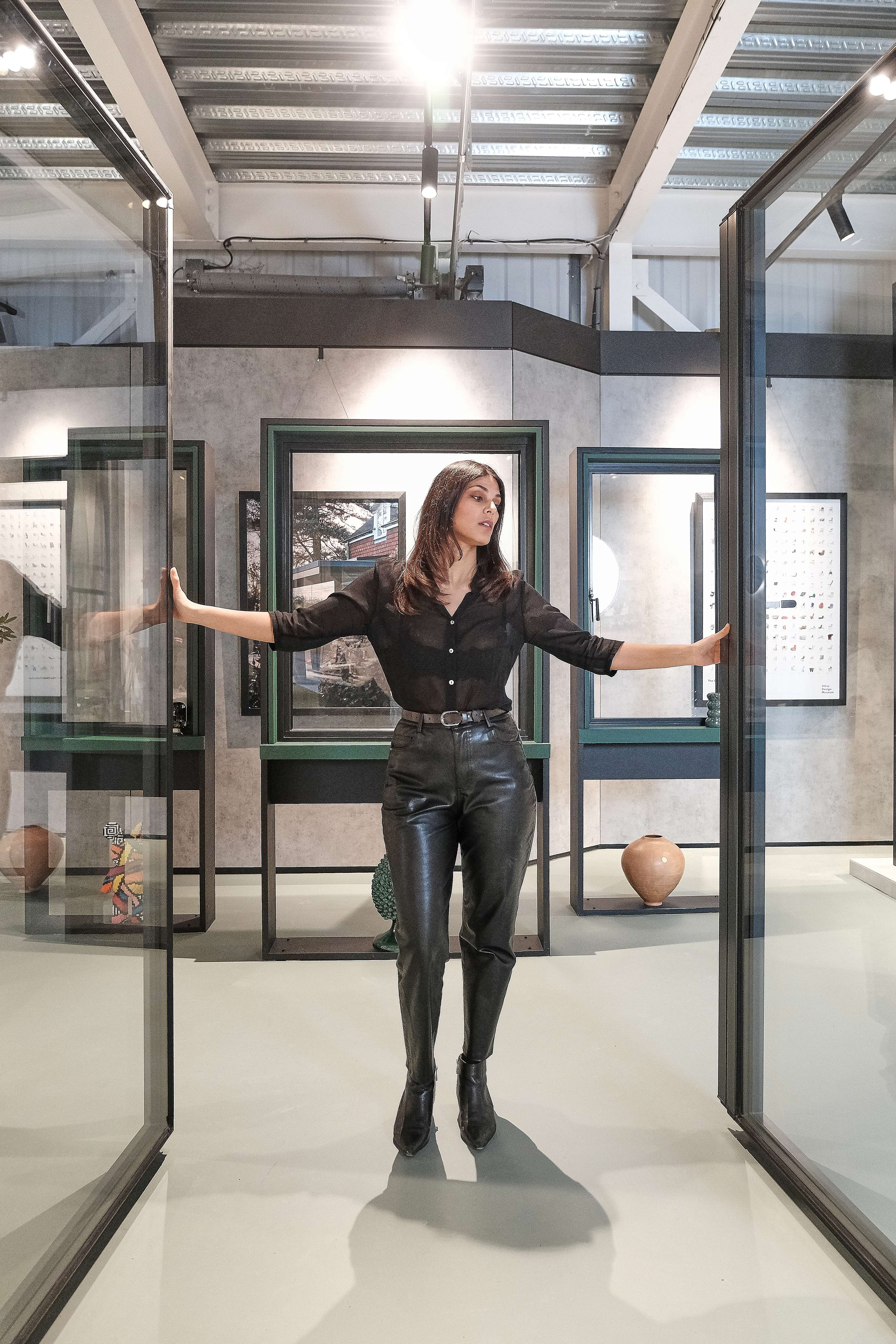

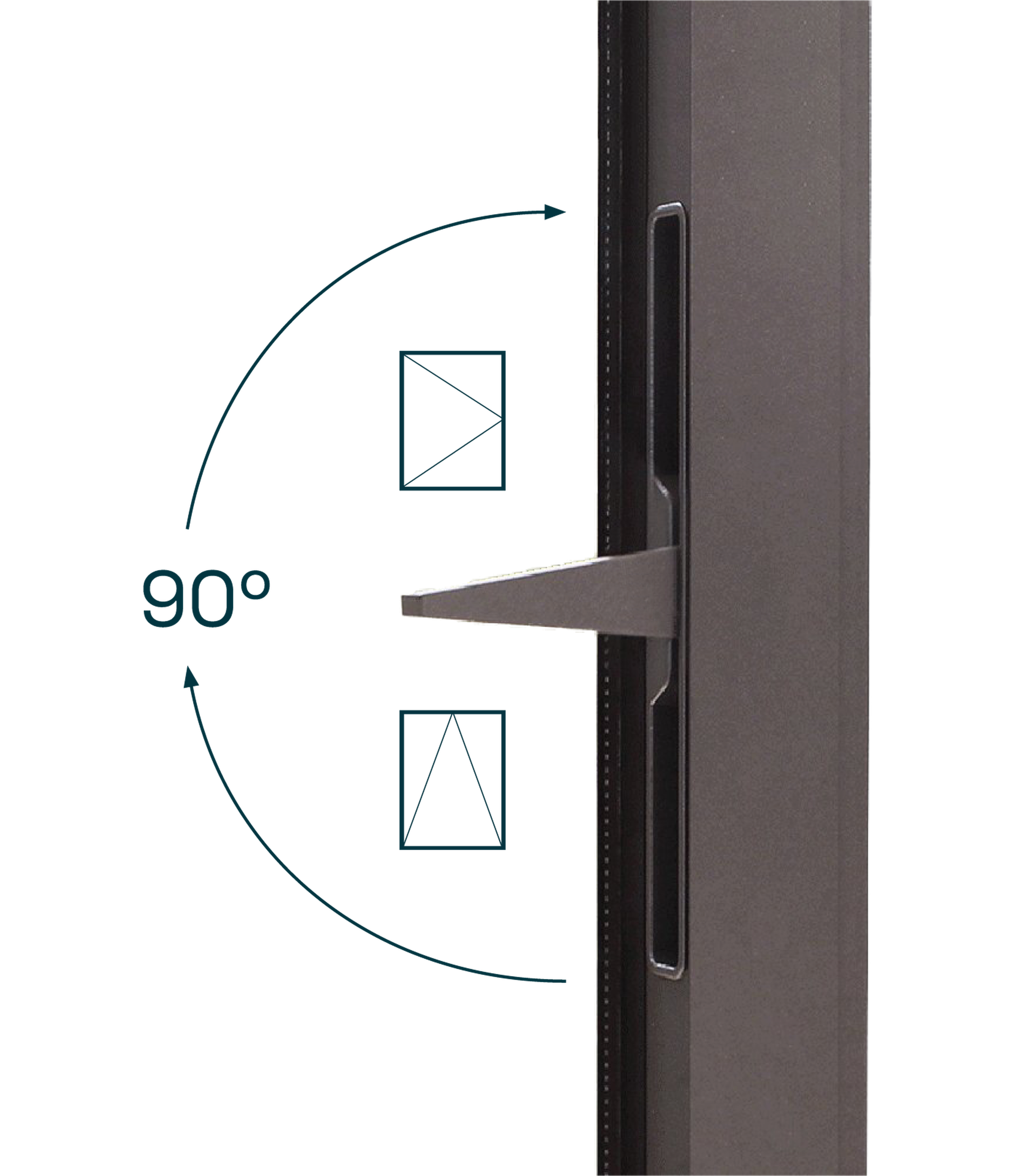

The handle controls two opening functions from one sash: opening tilt at the top for secure background ventilation, or the turn position to open fully inward for access and for cleaning the outer face from inside. In tilt mode, the sash is tilted inwards at the head and can provide airflow in wet weather with less risk of rain entering. The small opening also keeps the main locking points engaged for better ventilation control and is designed to prevent children from falling out. That makes the system practical at upper-floor and inaccessible positions where an outward-opening casement cannot be cleaned safely.

The system is PAS24 and RC2 compliant, with multi-point locking systems. The tilt position is designed to remain secure, which makes it suitable for background ventilation when a building is unoccupied and can enhance child safety by helping prevent falls when the window is only tilted. Glazing at or near floor level is toughened or laminated safety glass under Approved Document K and BS 6262-4, with toughened glass also available as a safety-led specification.

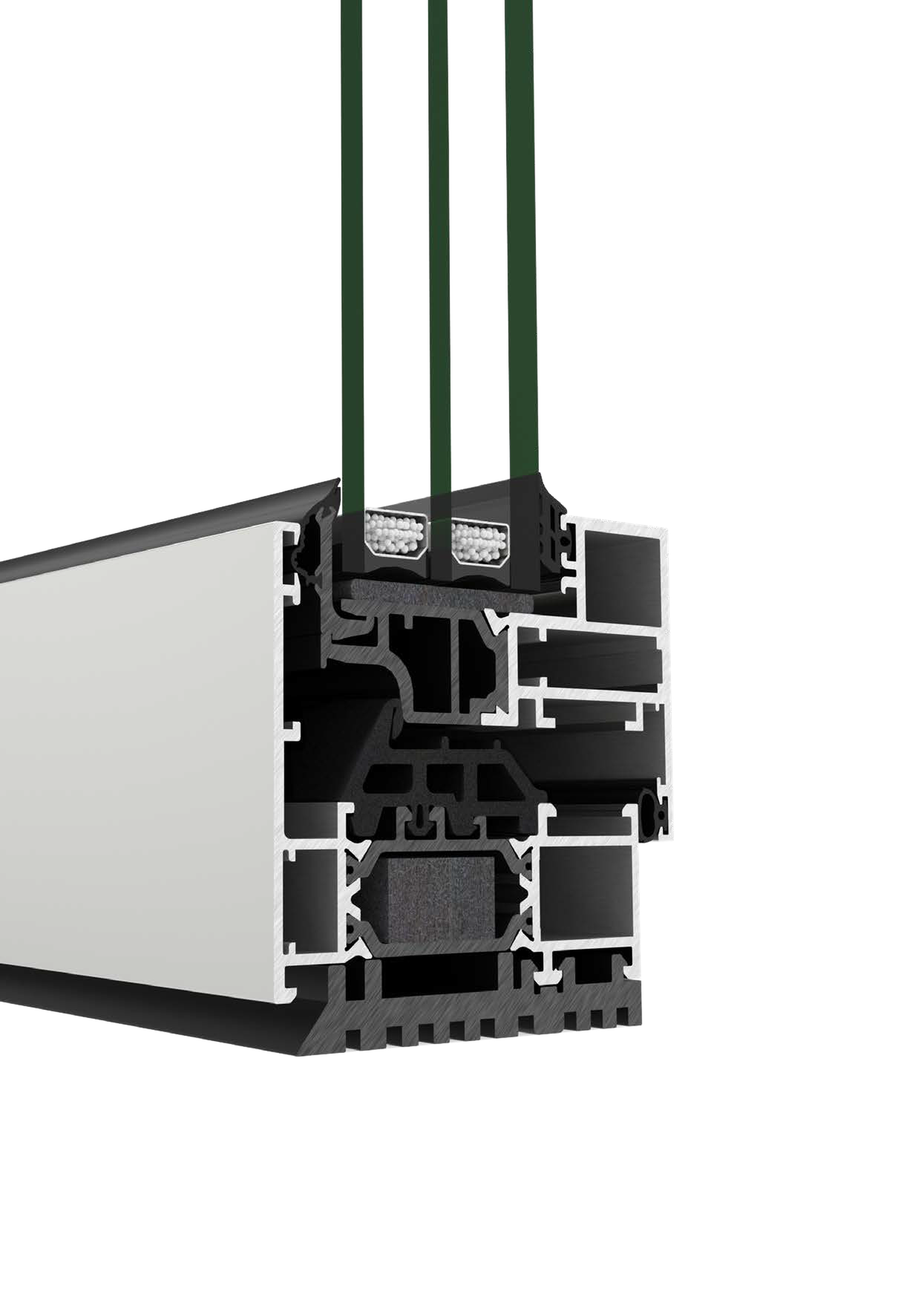

At 66mm the sightline is narrow for a tilt and turn, where the mechanism usually demands a heavier frame than traditional casement windows. The 70mm frame depth accommodates the hardware and the 40mm glazing capacity without widening the visible line. Finishes match the rest of the range, with proportions and finish options that help the window suit both modern and more traditional property style.

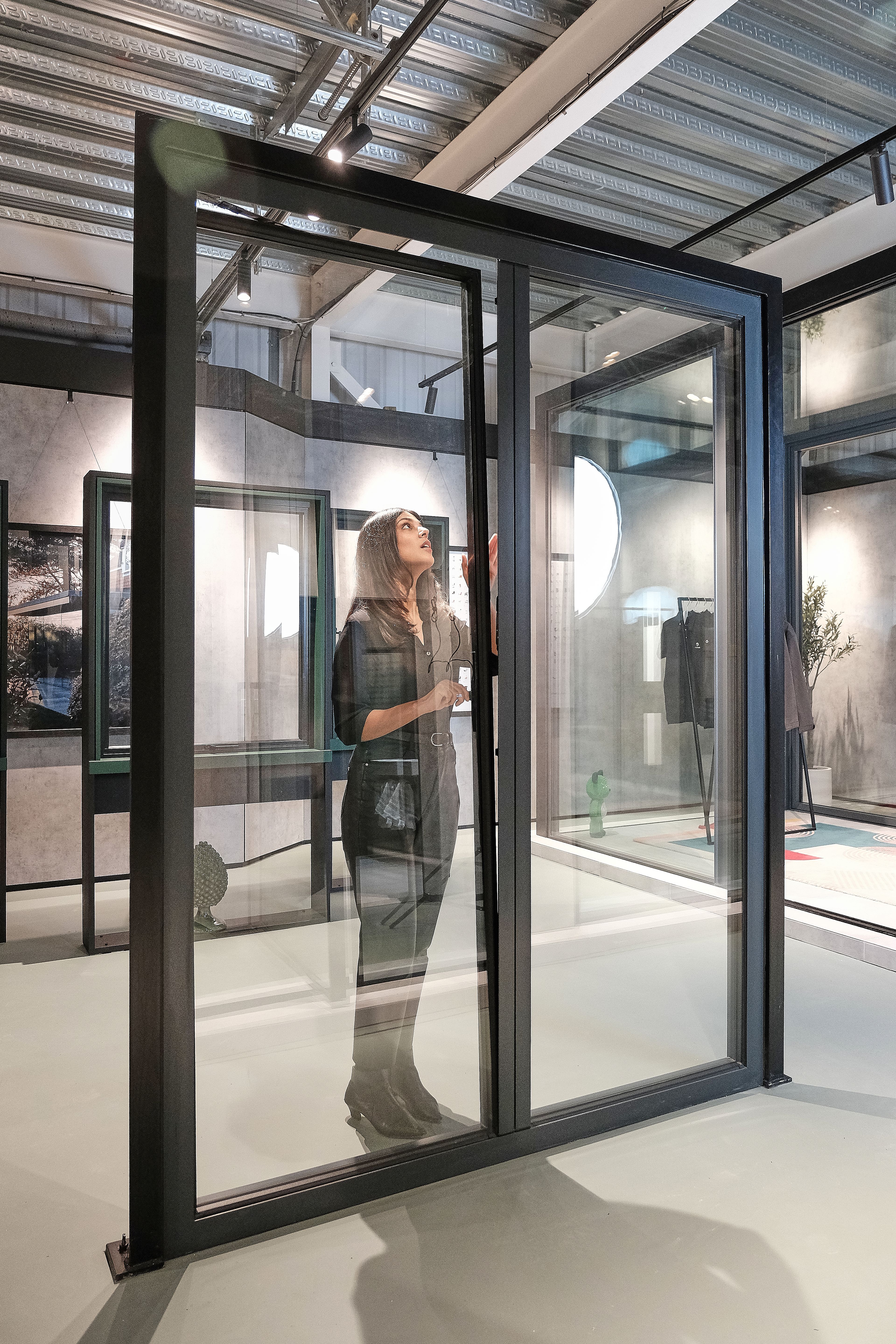

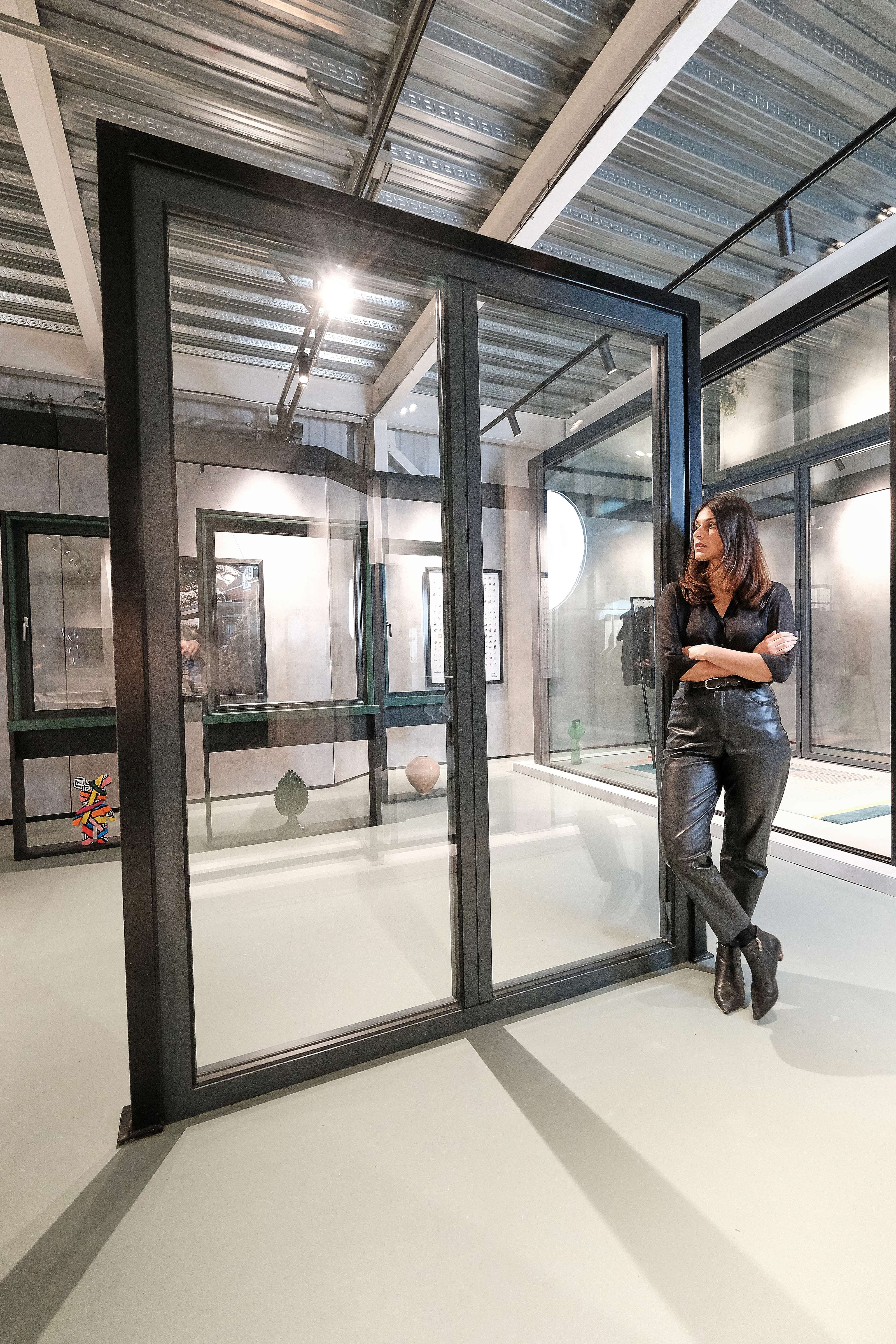

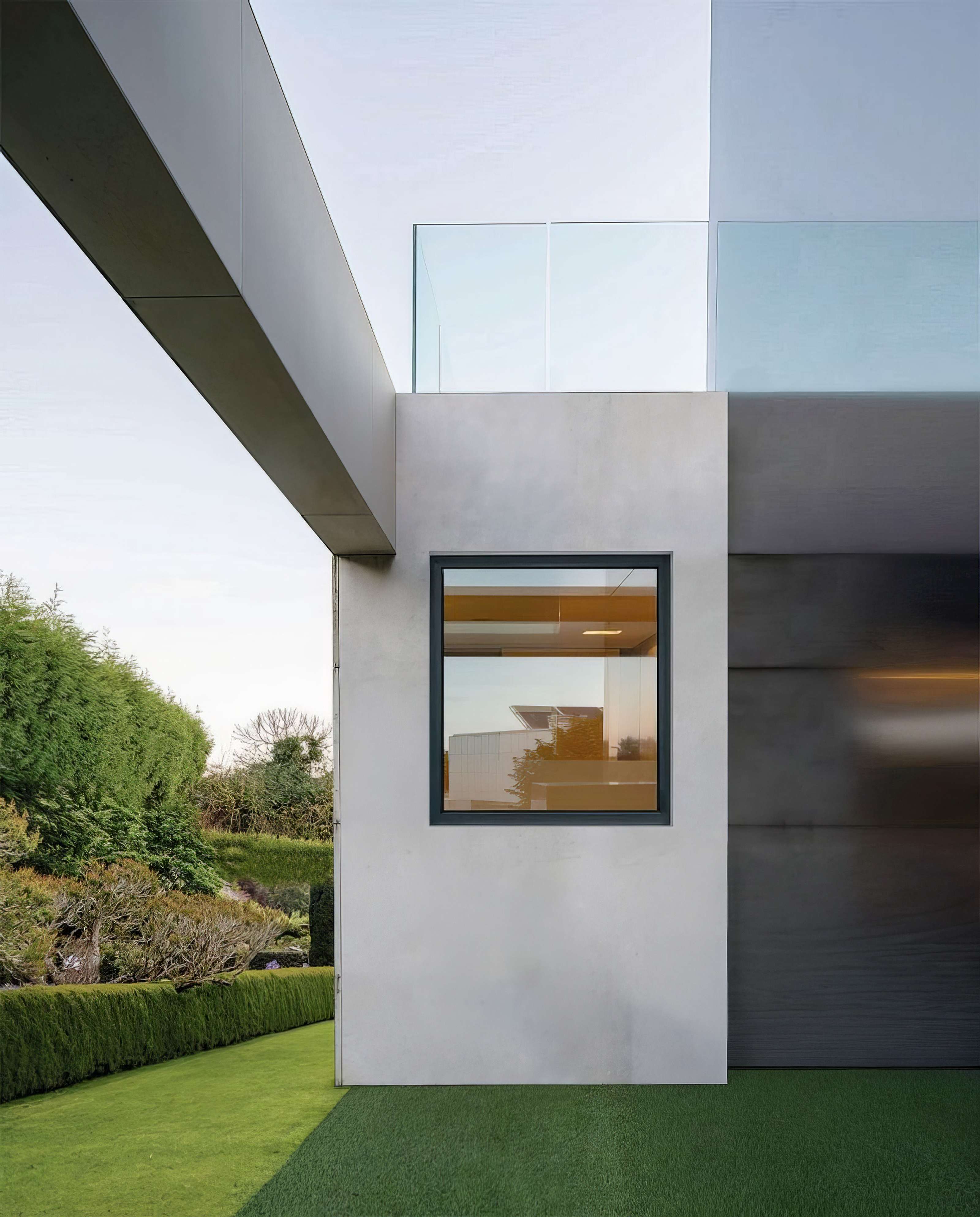

We design, engineer, fabricate and install in-house, so the TT window sits alongside the casements, sliding doors and structural glazing on the same elevation with a coordinated finish, with a wide selection of related systems available across the facade. Performance is evidenced rather than estimated. See the system at The Old Rectory, or see one at our Watford showroom.

Architects — where a ventilating window must not show hardware, and where upper-floor cleaning access has to be solved from inside, making it suitable for high rise buildings and other difficult-to-reach locations.

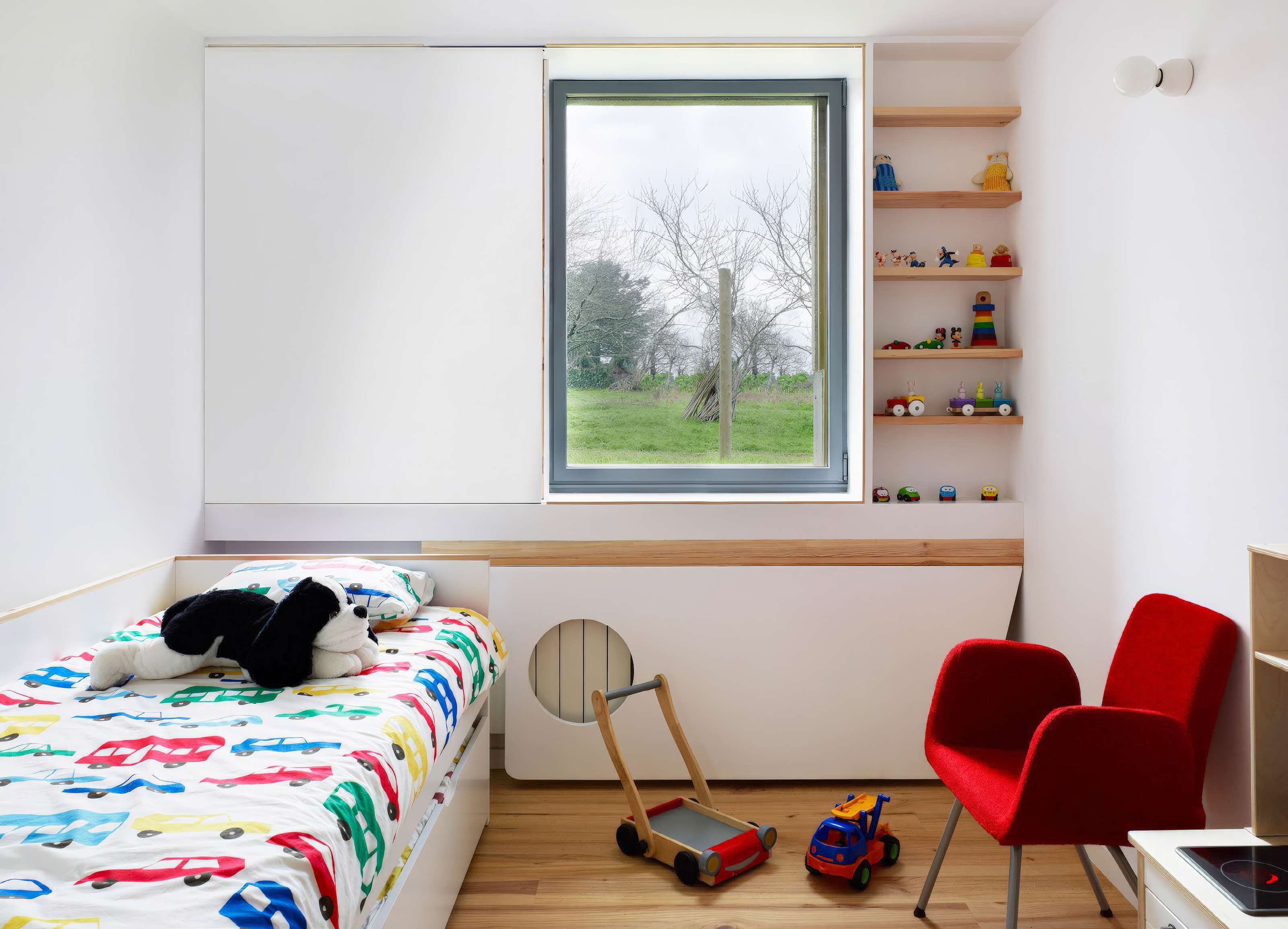

Homeowners — for bedrooms, upper floors and city elevations where secure background ventilation matters and outward opening is impractical; these also work well as replacement windows where new windows need secure ventilation and easy cleaning.

Developers — where one window handles ventilation, cleaning access and acoustic performance on an urban scheme, and can suit different property requirements without visible hardware.
