Fluid Timeless Window: Steel-Look Aluminium Windows

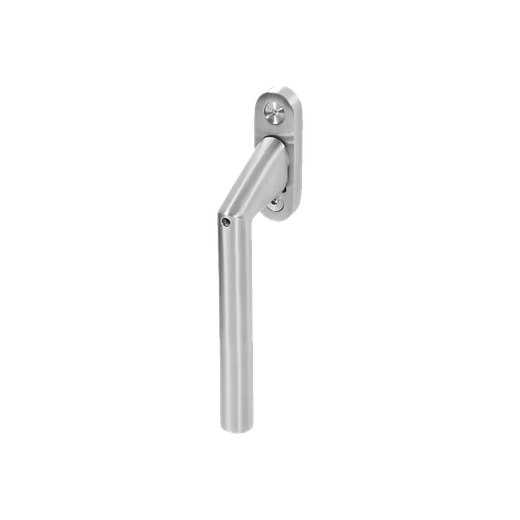

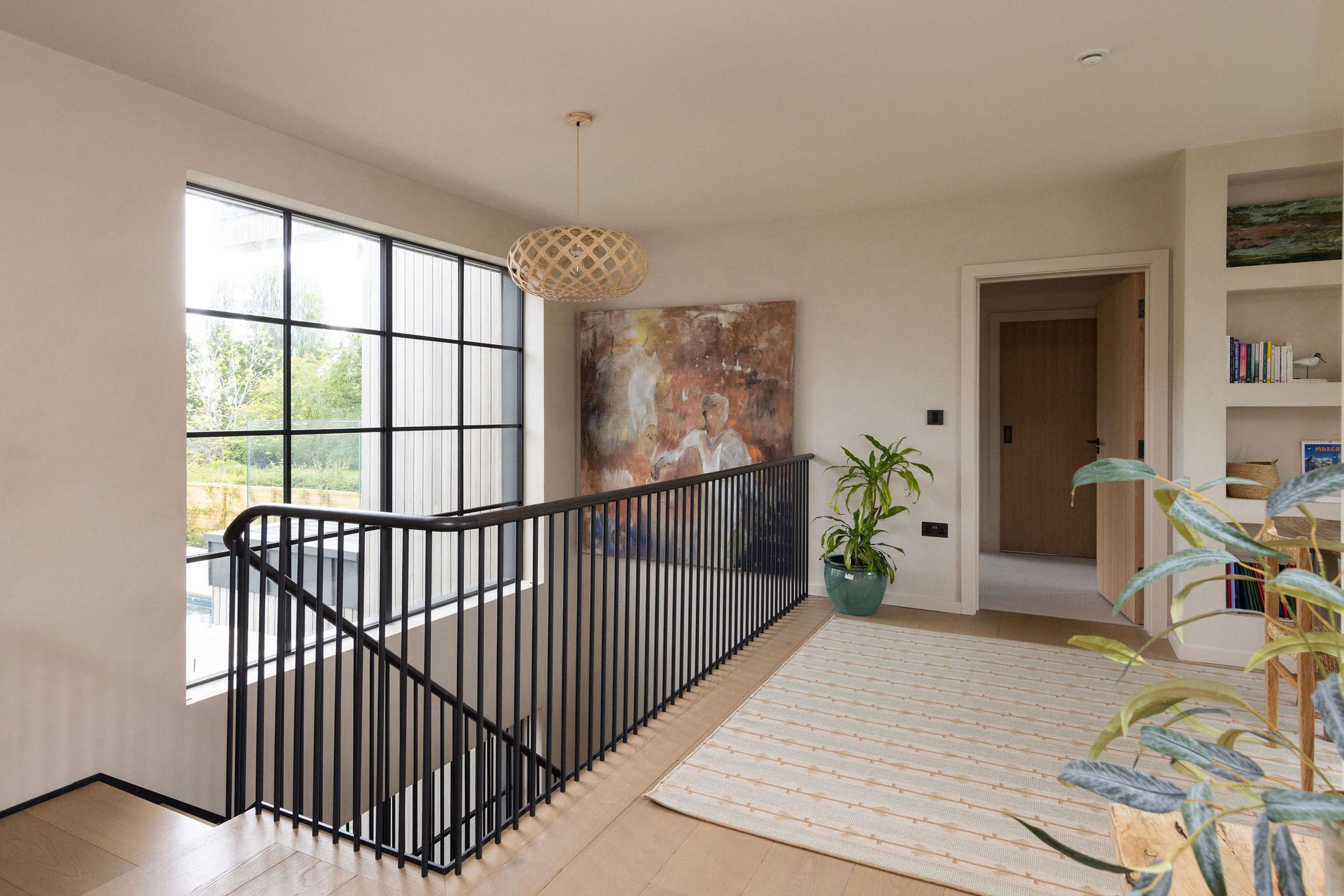

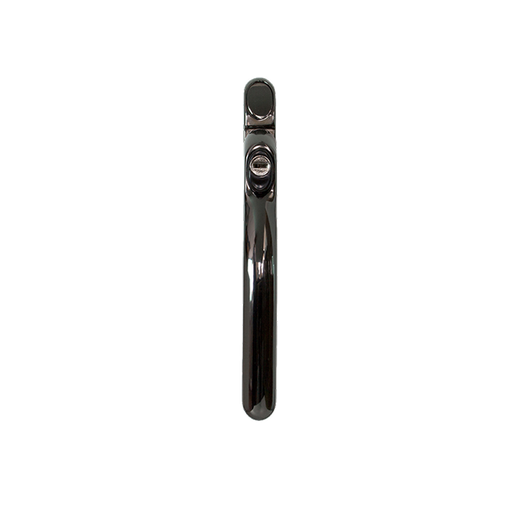

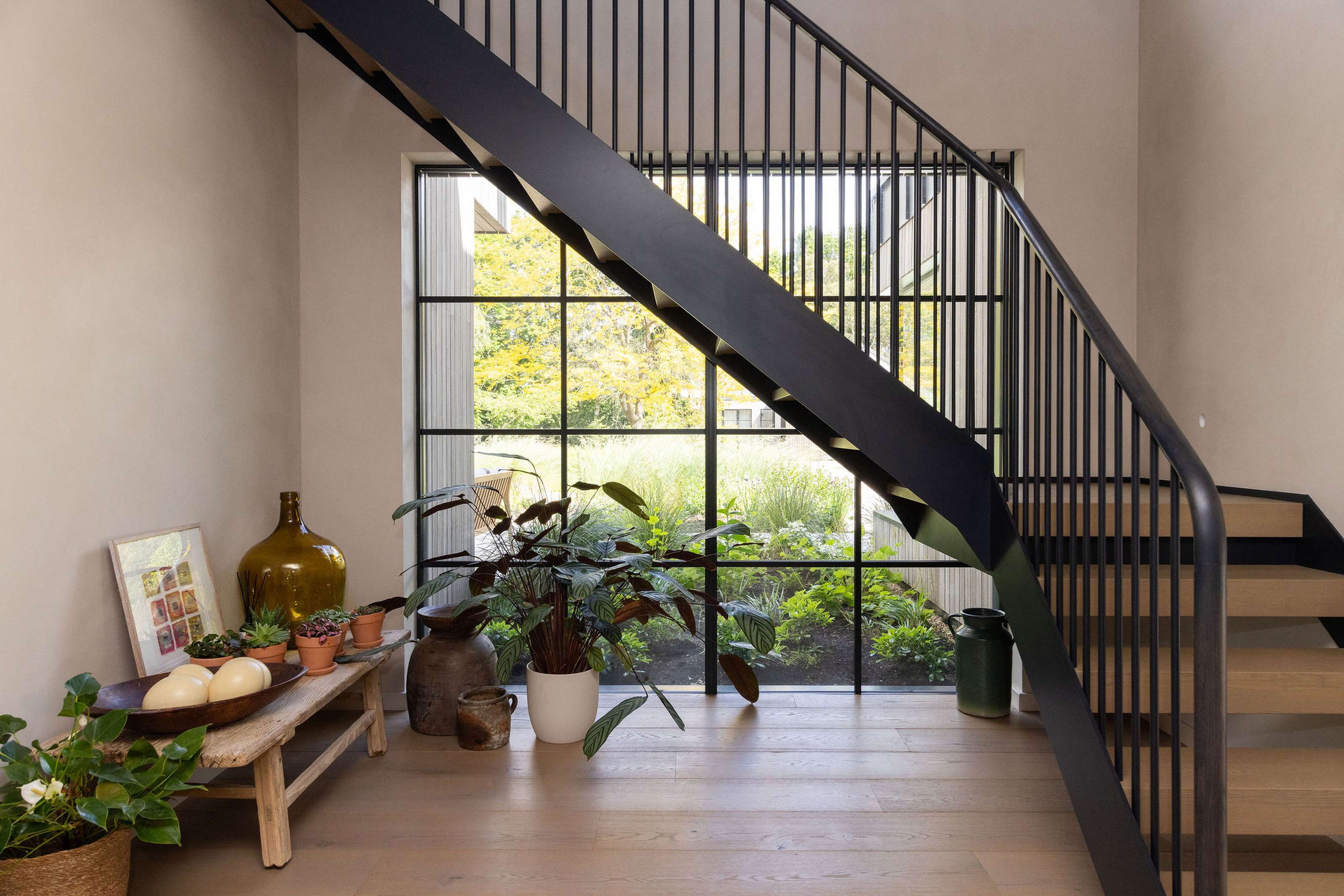

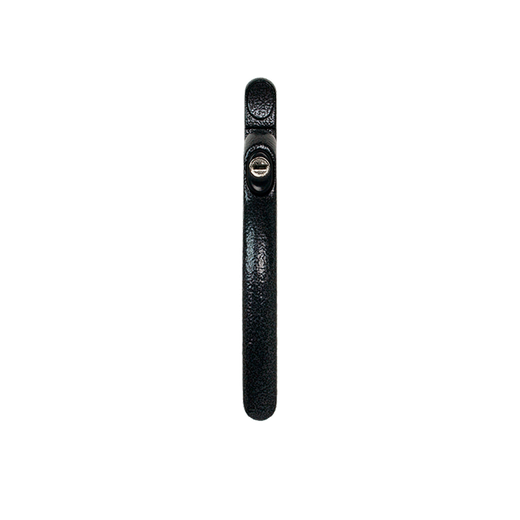

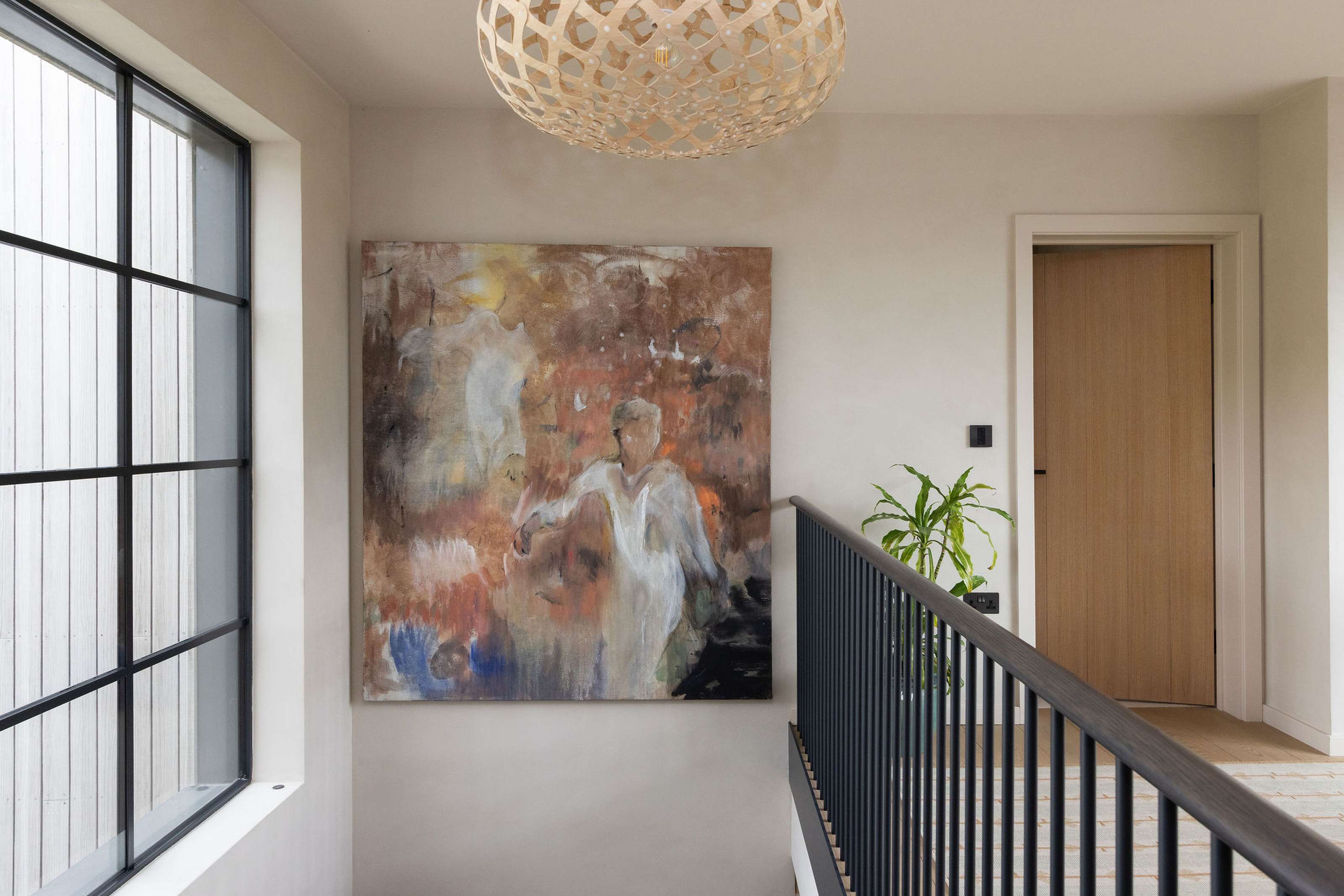

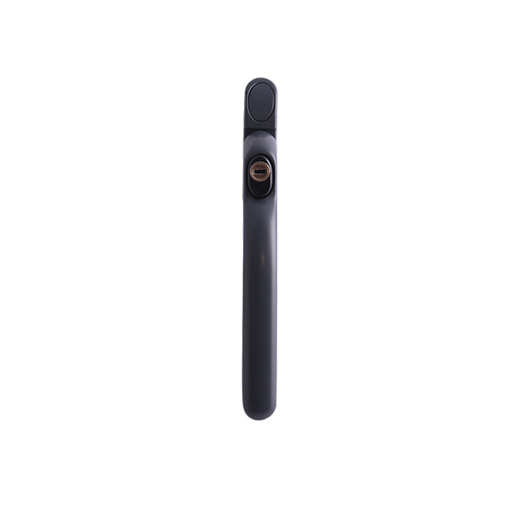

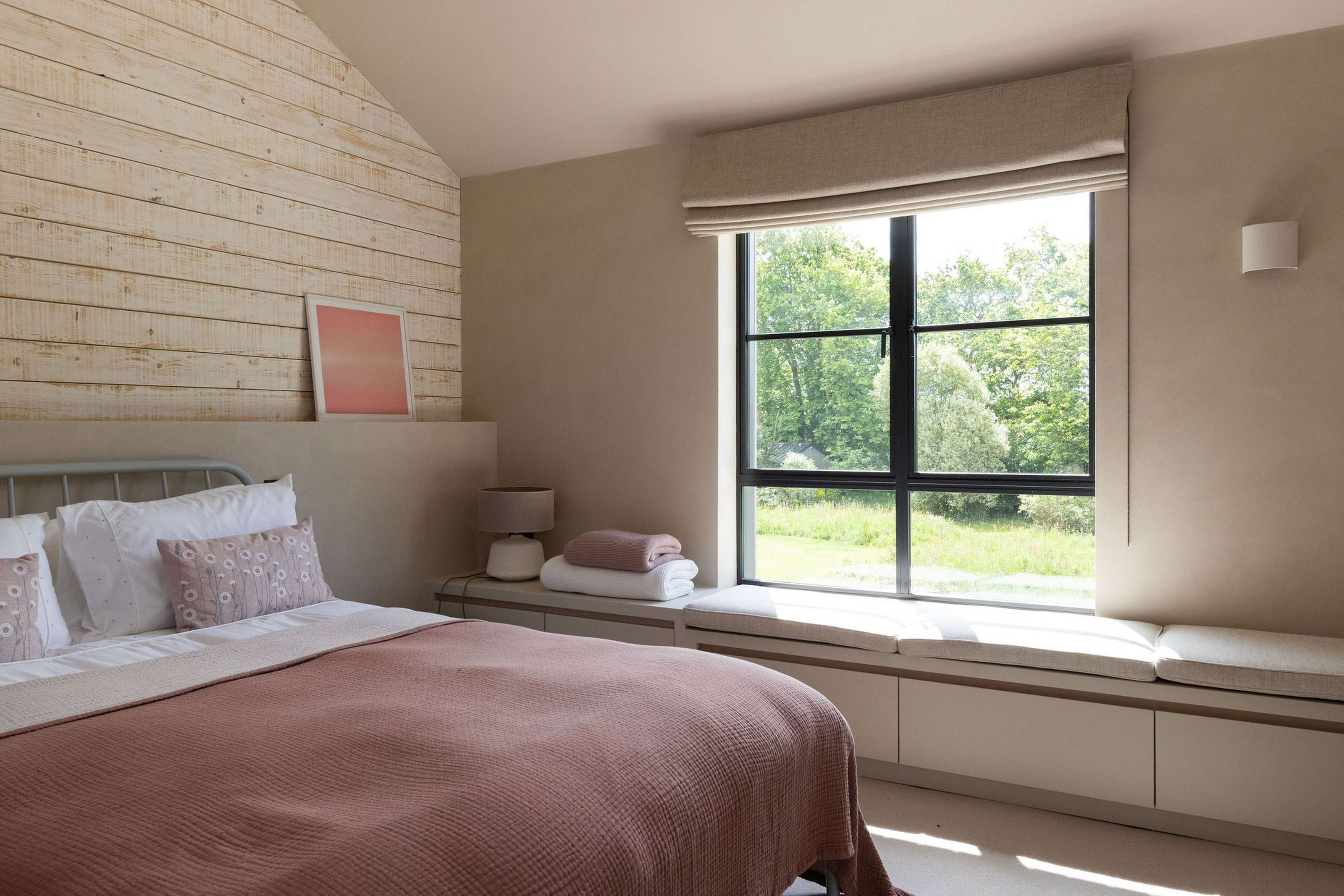

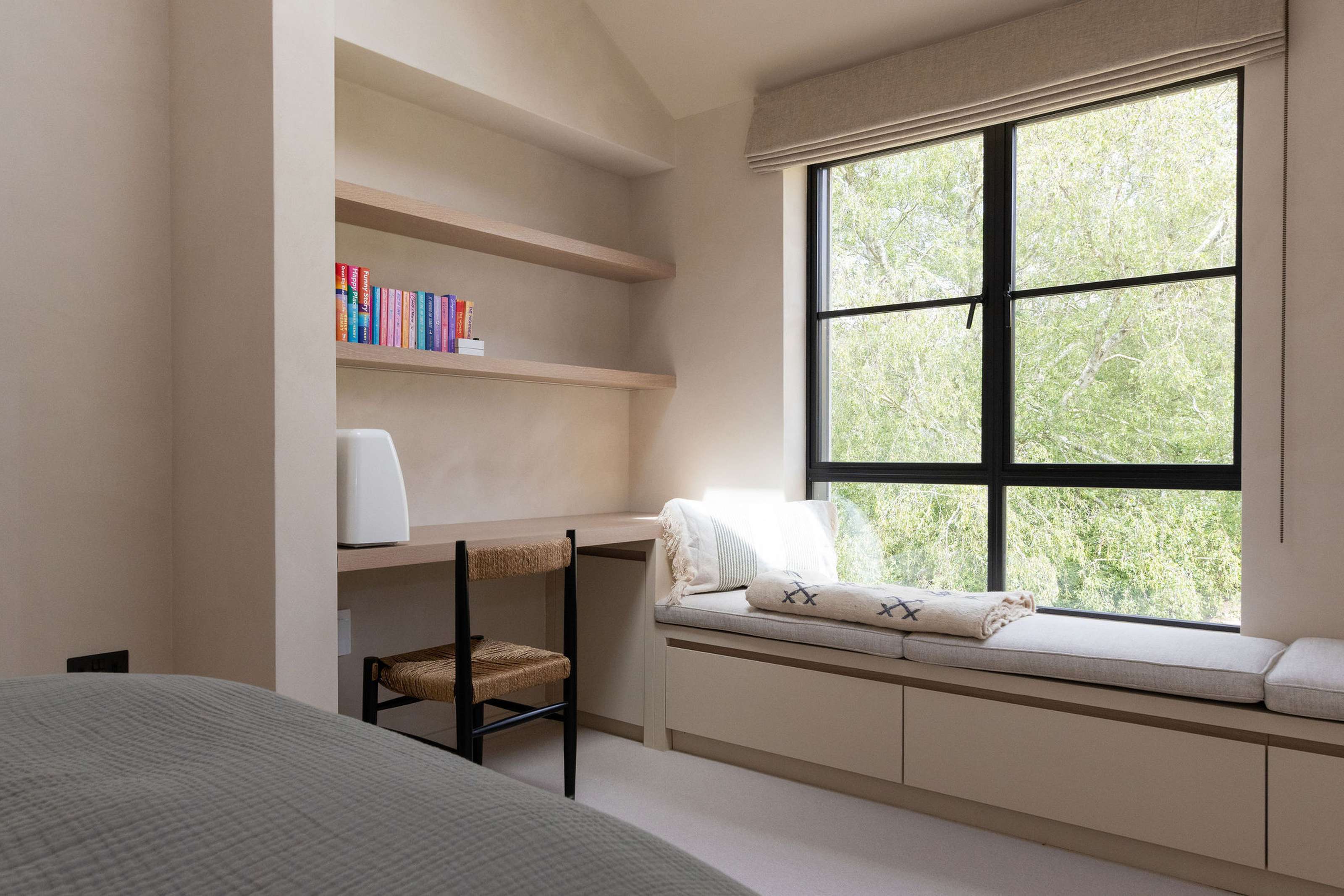

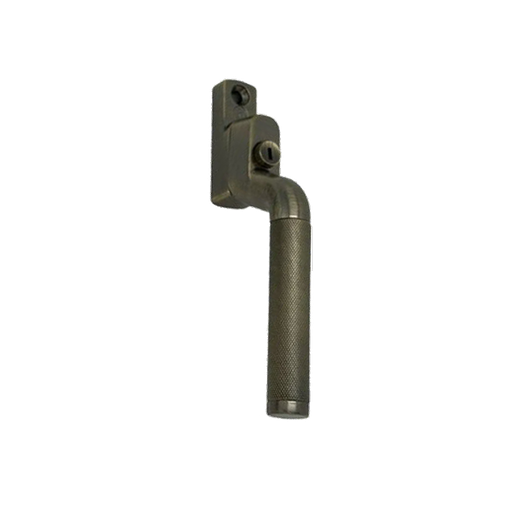

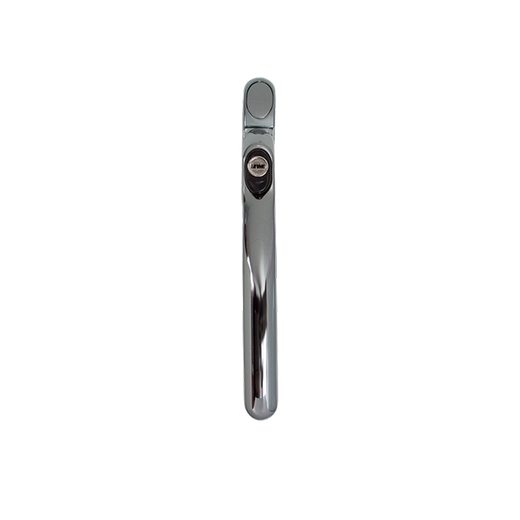

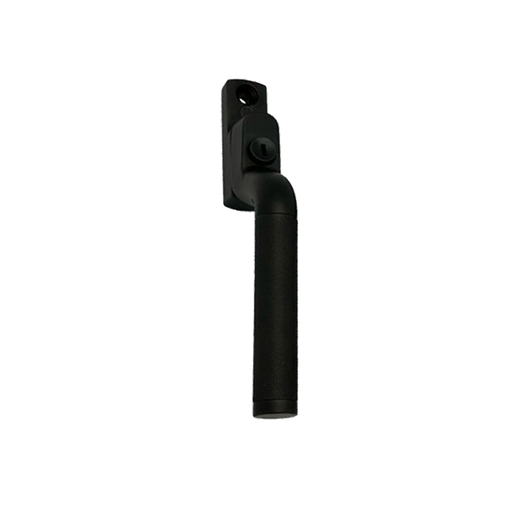

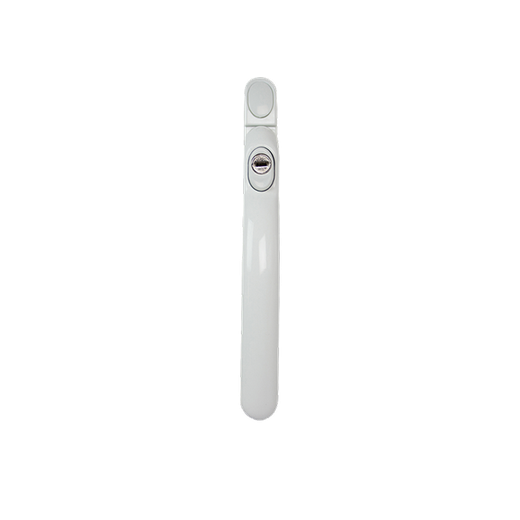

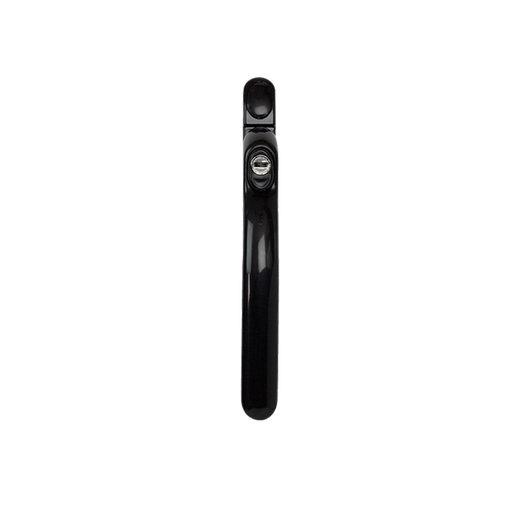

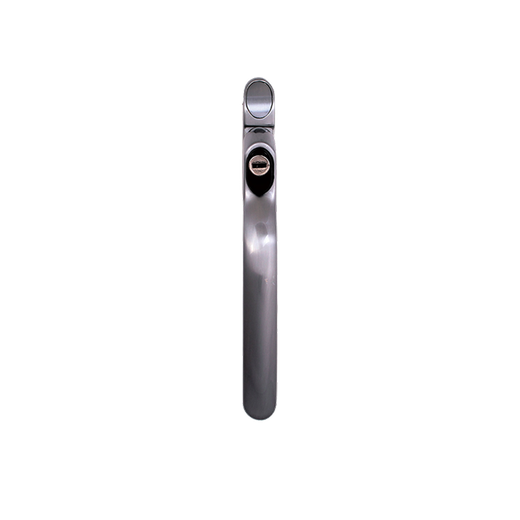

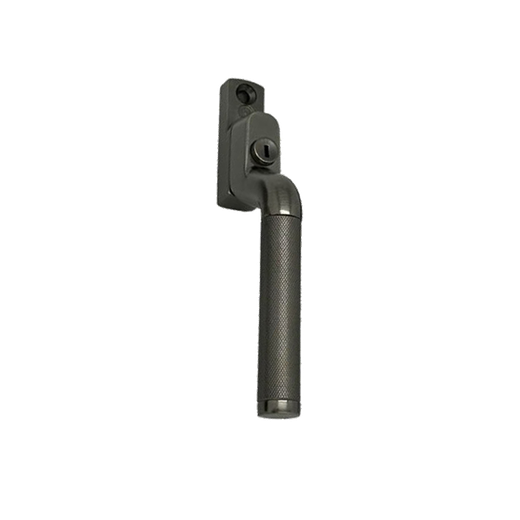

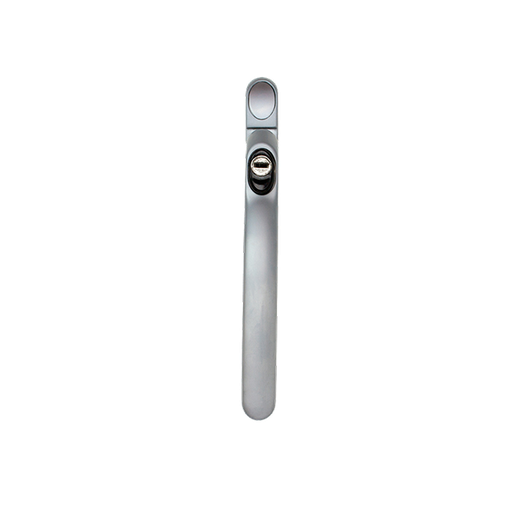

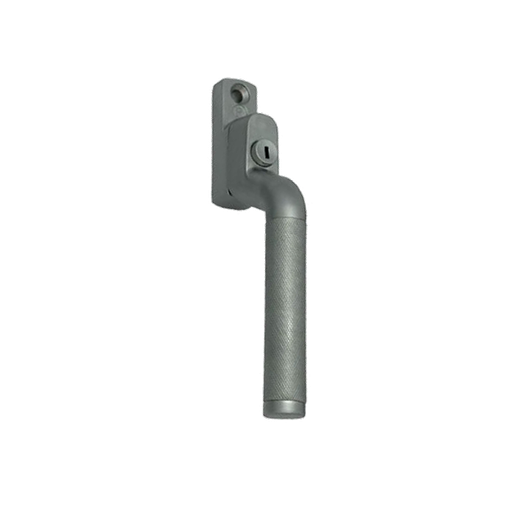

Steel look windows are characterised by black industrial-style frames and slim grid patterns that maximise natural light, giving period and contemporary homes alike the industrial appearance of traditional steel without steel’s usual drawbacks. Traditional steel windows give the slim gridded profile but conduct heat and need repainting; the Fluid Timeless Window is an aluminium system designed to replicate traditional steel aesthetics at a 58mm sightline in fully thermally broken aluminium, reaching U-values from 1.3 W/m²K, with concealed hardware and inline handles so the industrial language is structural rather than applied, using modern thermally insulated frames.

For architects, homeowners, and developers specifying replacement windows for period properties, conservation areas, or heritage-led schemes, the key question is whether that authentic look can be achieved without compromising performance. This guide focuses on the design and specification of steel look aluminium windows, including sightlines, glazing bars, finishes, thermal and acoustic insulation, security standards, and where they suit listed, historic, or design-sensitive projects.

Side-hung leaves run to 1400mm wide at sash weights up to 40kg, on glass up to 28mm — sized for the openings found in period properties rather than for contemporary full-height glazing. Side-hung, top-hung and fixed configurations combine within one elevation while holding a single grid, so these steel look windows suit both period and modern houses. Well-designed look windows can also blend with architectural styles from historical buildings to contemporary designs. That consistency helps preserve authentic styling across mixed openings, unlike simpler systems with a stepped frame design or stick-on bars instead of true steel detailing.

Optional glazing bars come in three widths. A 48mm bar reads as a heavier industrial division; a 20mm bar is a contemporary interpretation with slim sightlines that enhance views and create a stunning, timeless style. Matching the bar width to the period and scale of the building is what gives steel look windows a classic style and helps them make a powerful design statement, rather than merely approximating, and it is worth resolving before a conservation officer sees the application. By contrast, Simper steel look windows use a stepped frame design, which changes the intended effect.

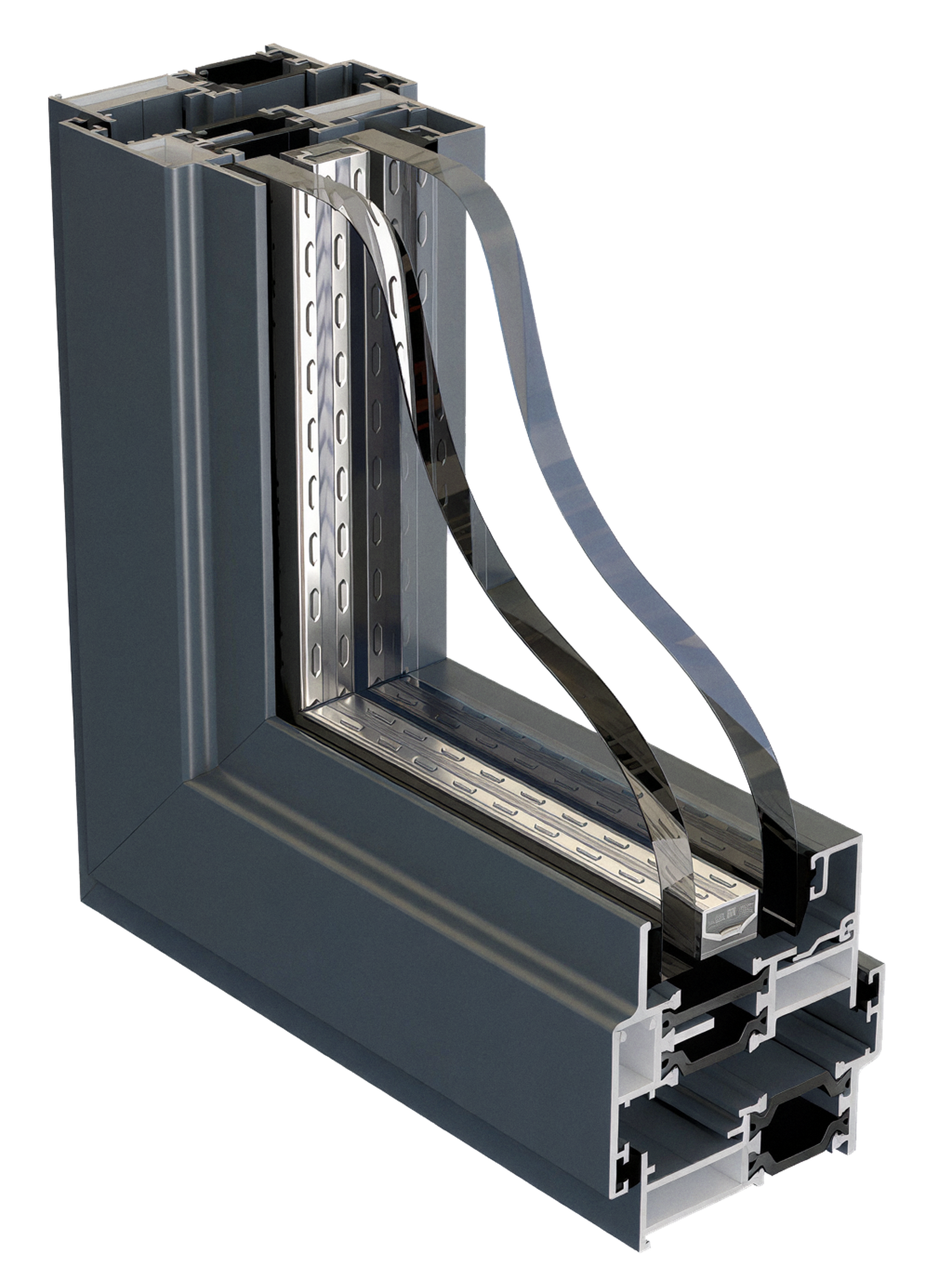

The system is fully thermally broken and can use A+ rated glass as standard, achieving U-values from 1.3 W/m²K with sound insulation to 36dB. Weather performance is Class 4 air permeability and Class 9A water tightness, and aluminium steel-look windows offer improved insulation compared with traditional steel, which covers exposed elevations while retaining a heritage appearance with modern performance. That combination is what a traditional steel window cannot offer without secondary glazing. In Steel look windows, this helps keep heat inside for excellent thermal performance and energy efficiency, making them more energy efficient.

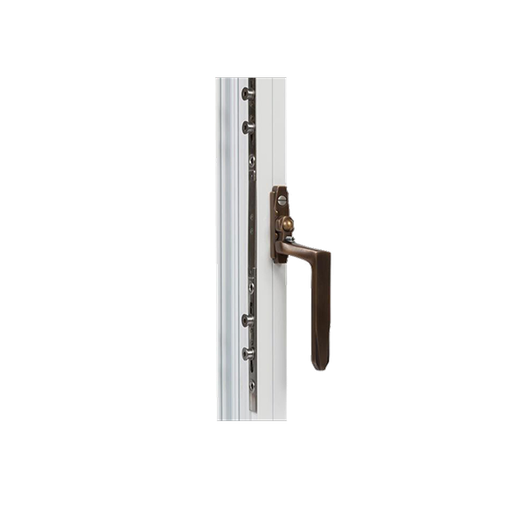

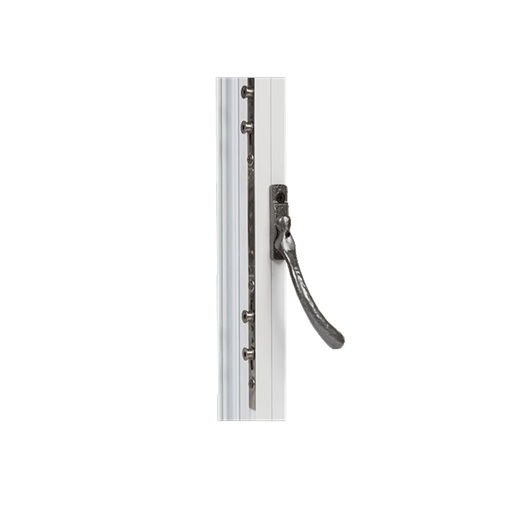

The system is PAS 24 certified. Robust locking systems with multipoint locking are standard in modern steel-look windows, and virtually all current brands build this in as part of everyday functionality. Glazing at or near floor level is supplied as double glazed units, with toughened safety glass standard in low-level windows and doors under Approved Document K and BS 6262-4 regulations, and laminated glass can be chosen for additional protection where security or acoustic performance requires it. Weatherstripping also helps prevent draughts.

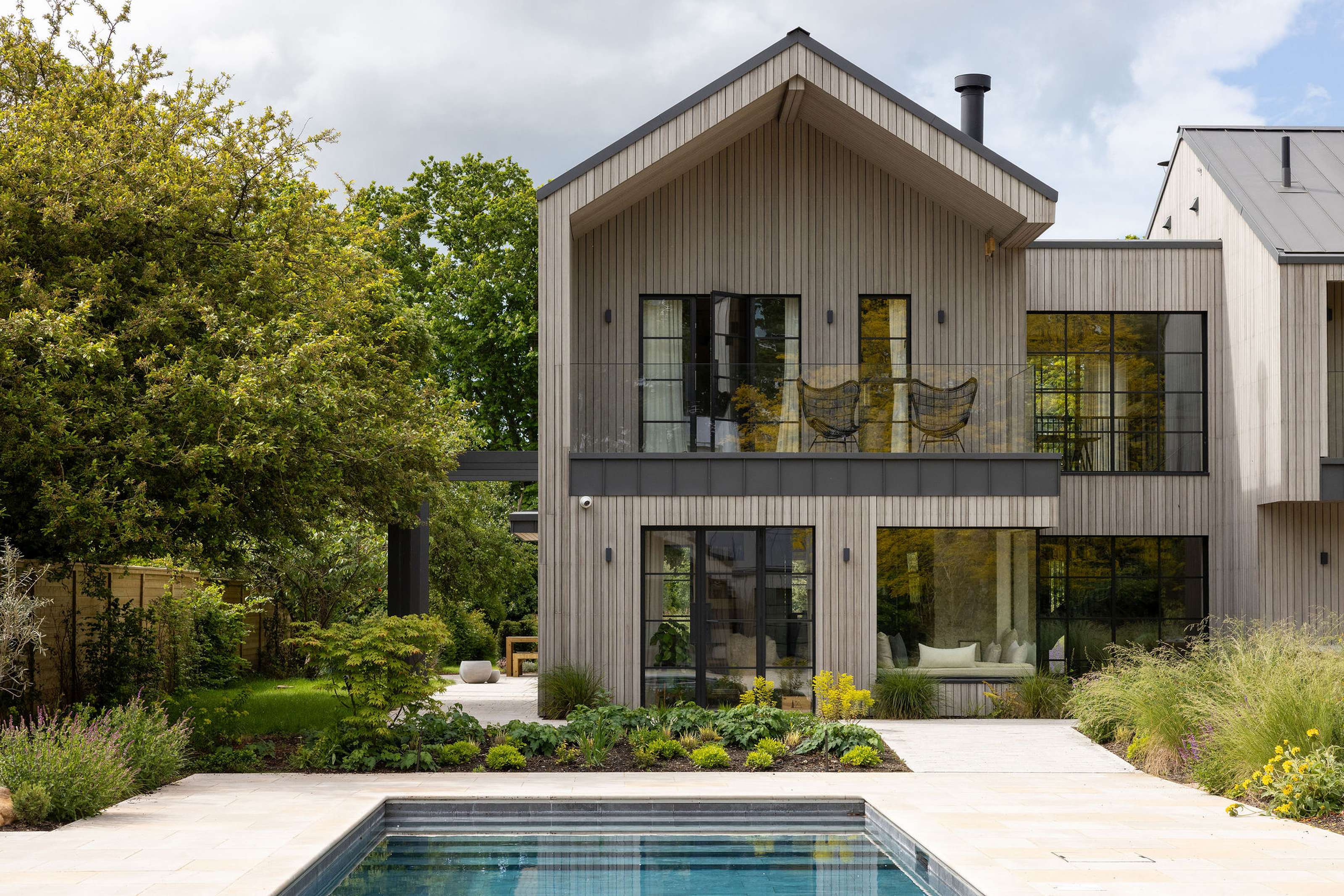

The windows and doors share sightlines, bar widths, hardware and finish, so the window and companion external doors read as one visual system. That matters on period buildings, where a mismatch in bar width between a window and adjacent doors is immediately visible, while matching elements complement each other across the elevation. This coordinated system can suit both heritage conservation work and contemporary new-build projects.

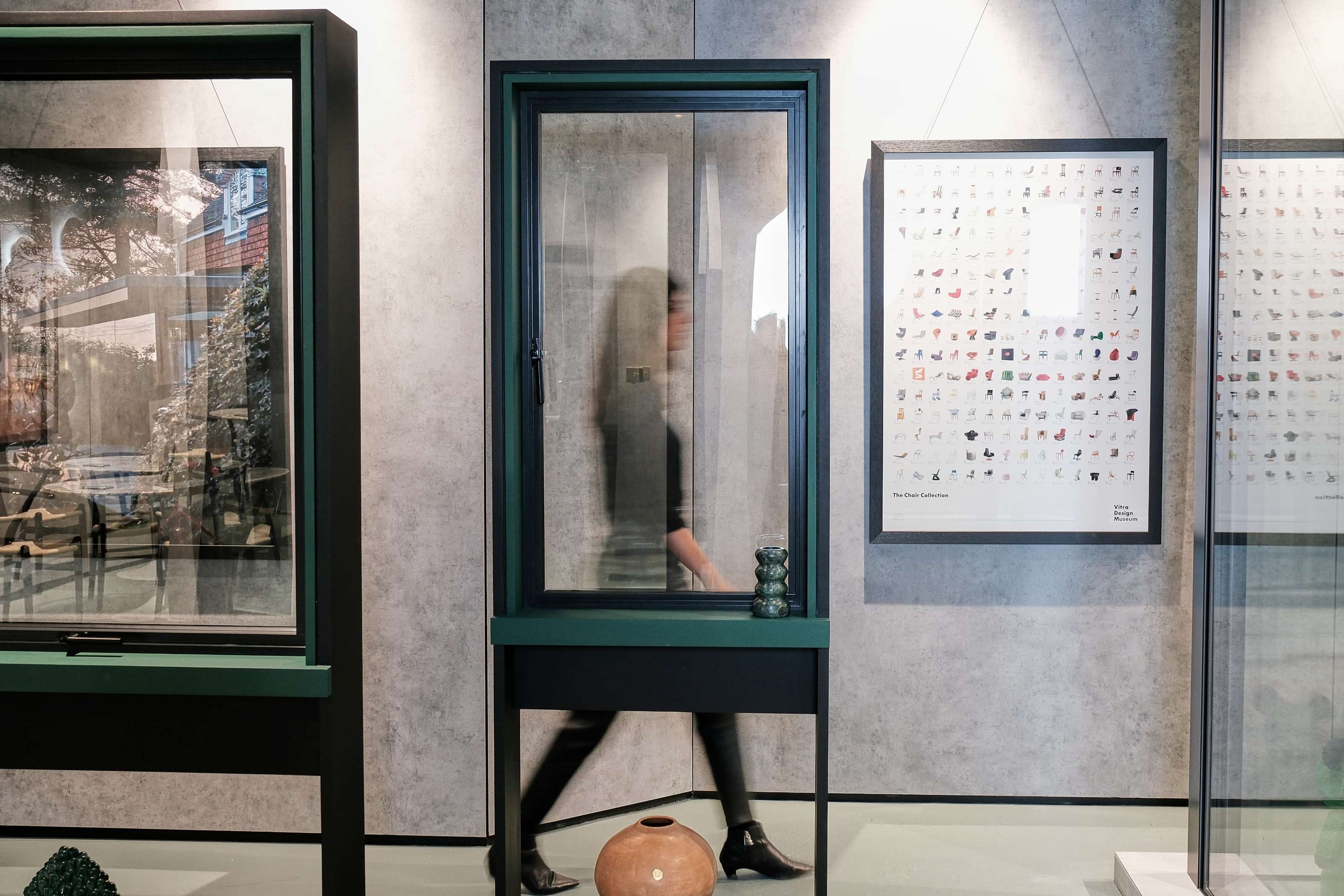

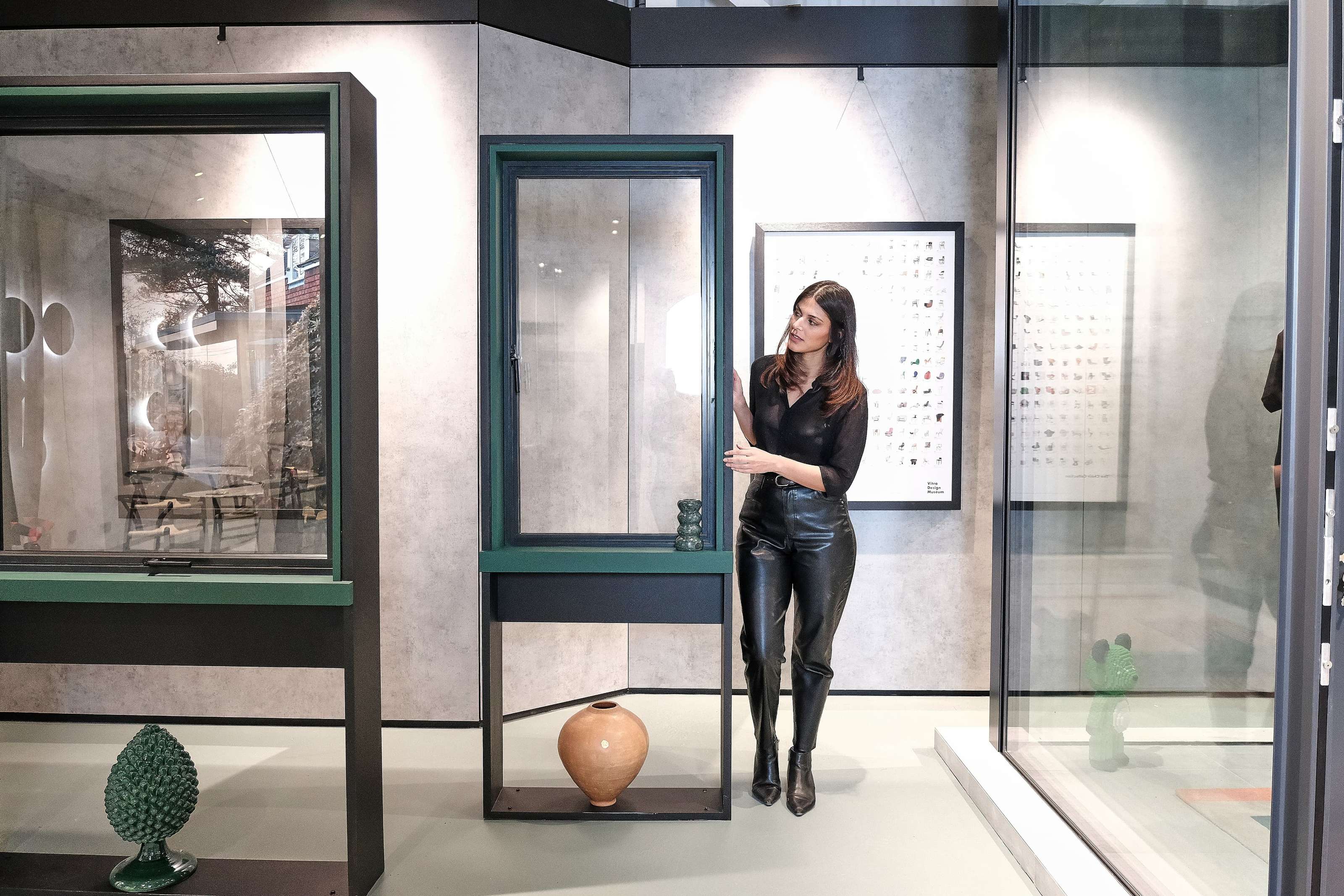

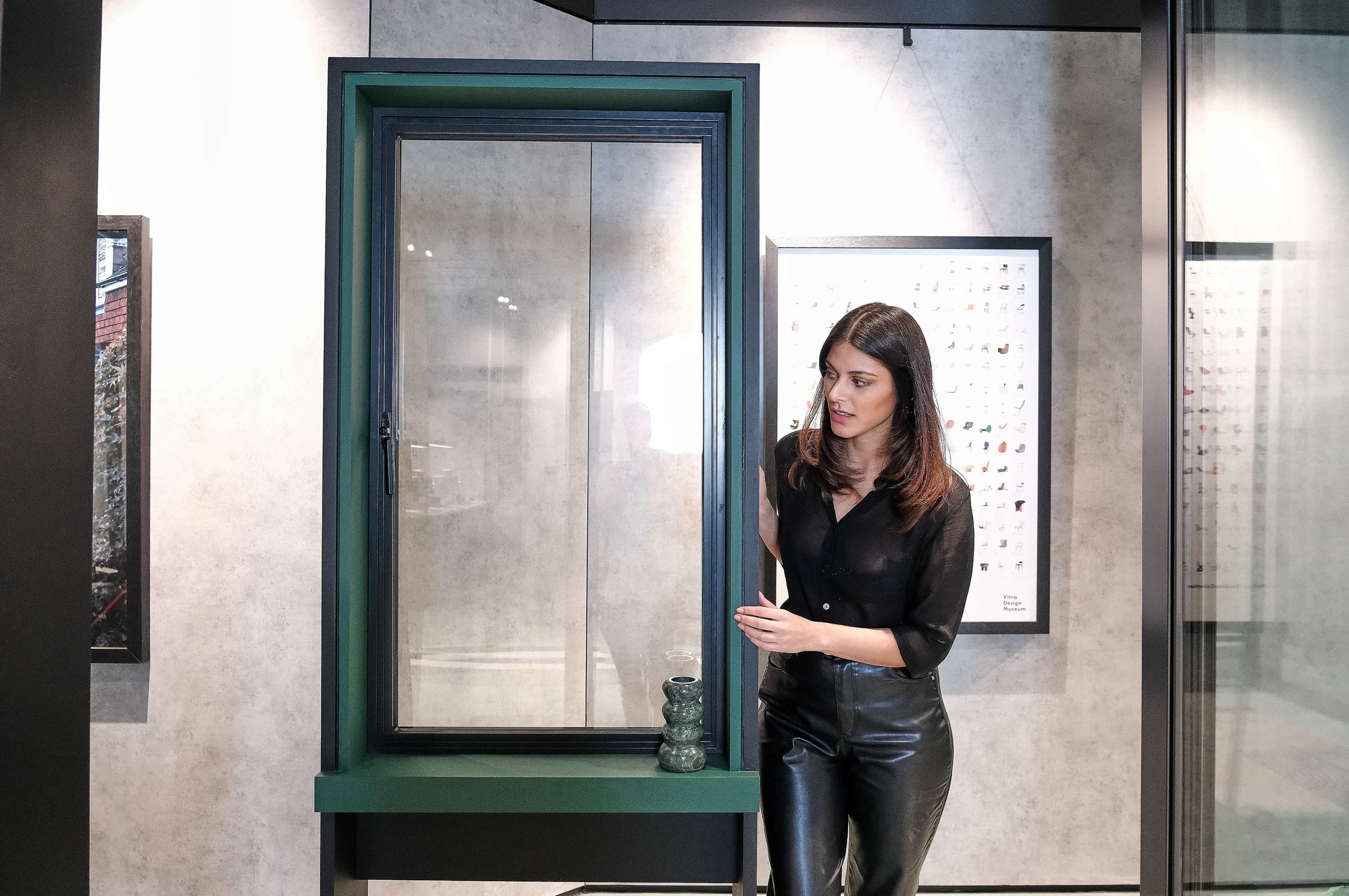

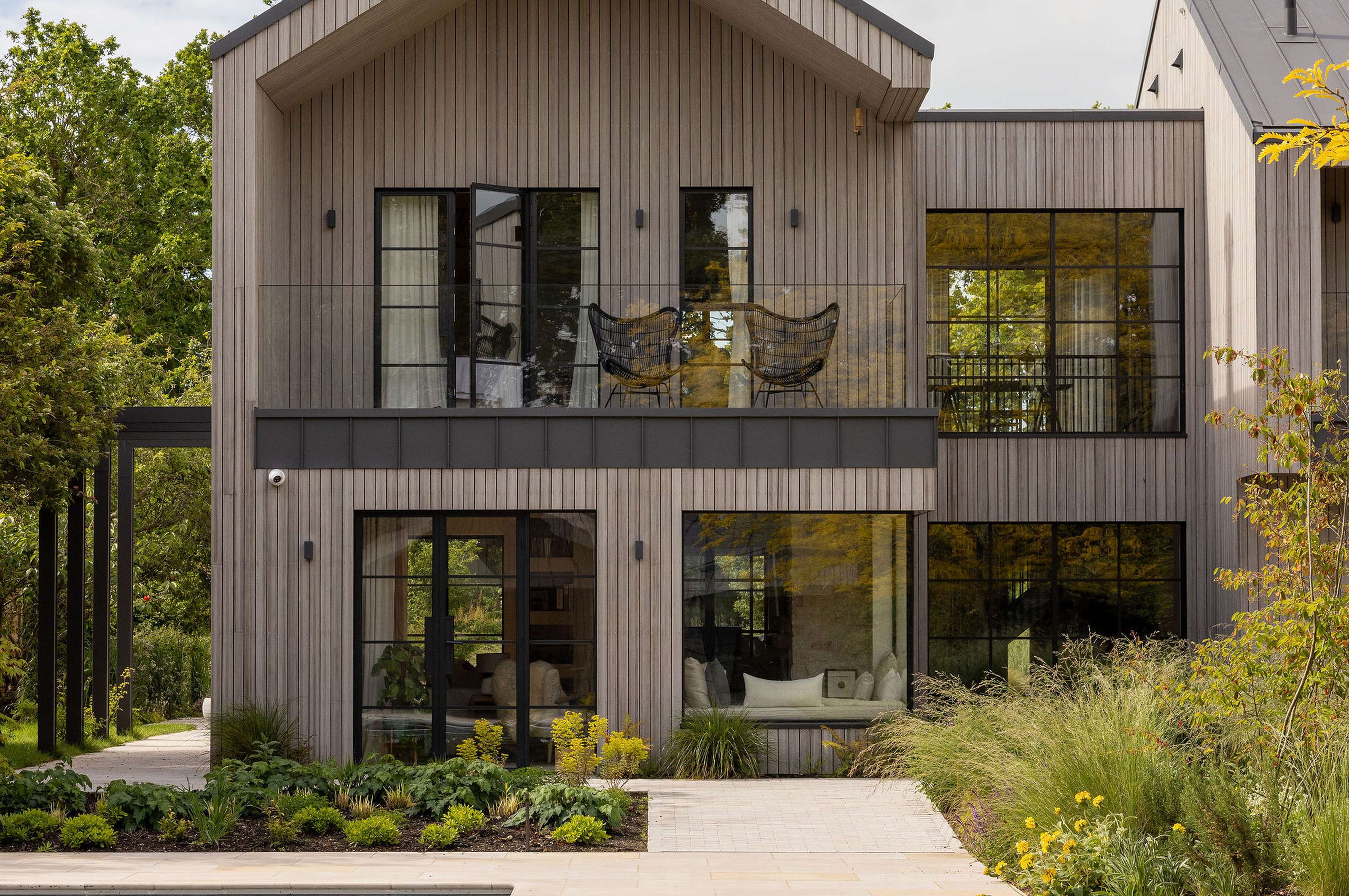

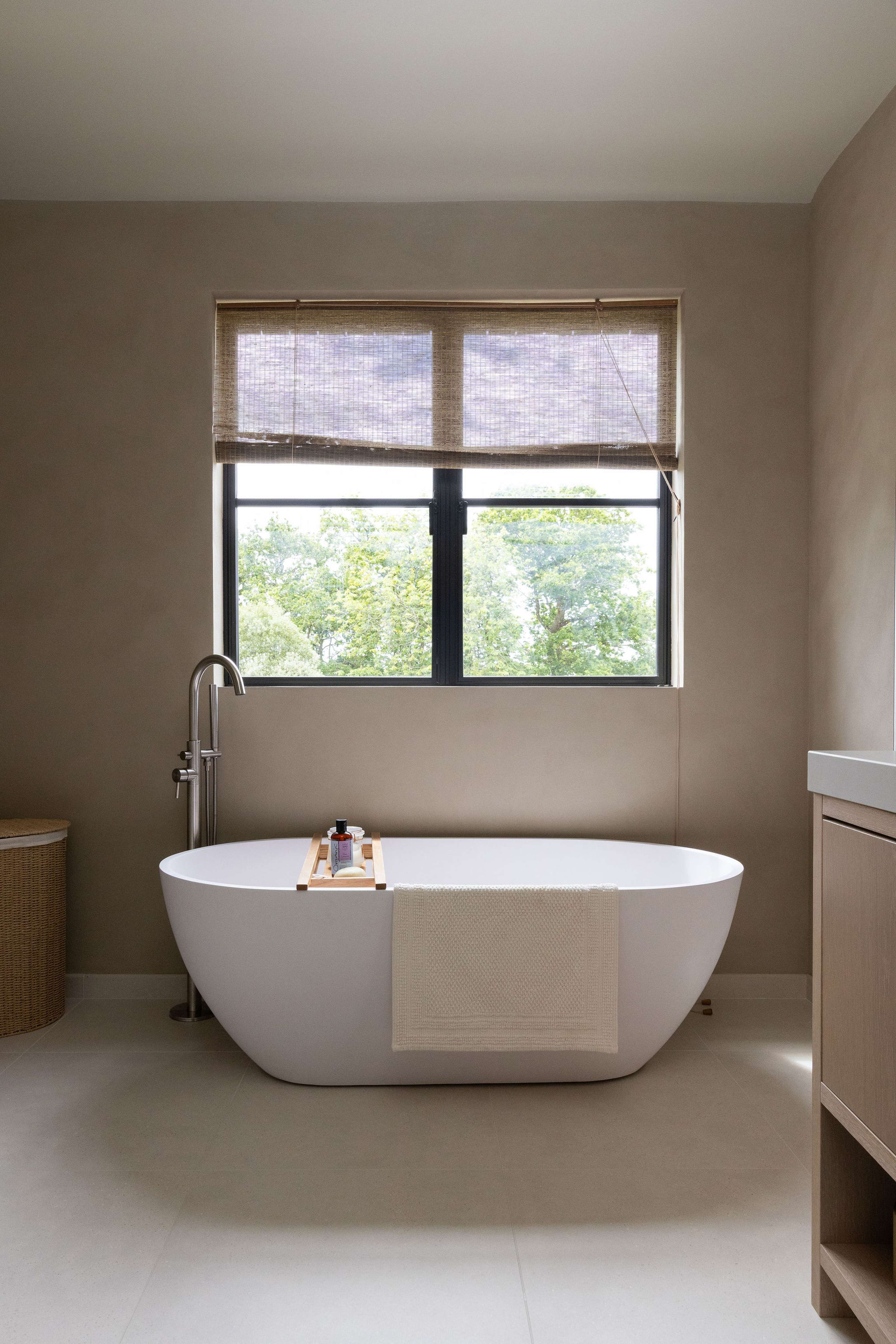

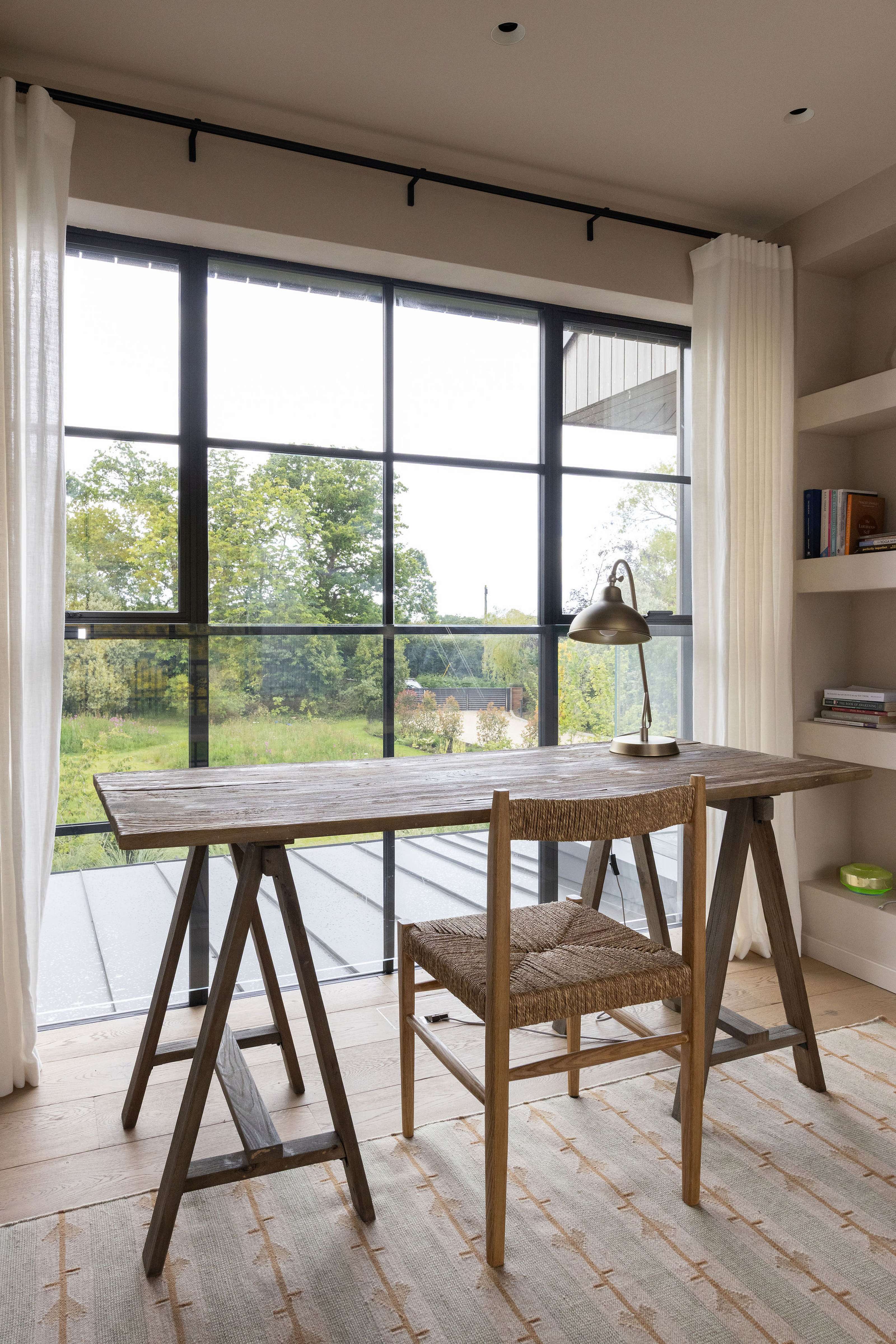

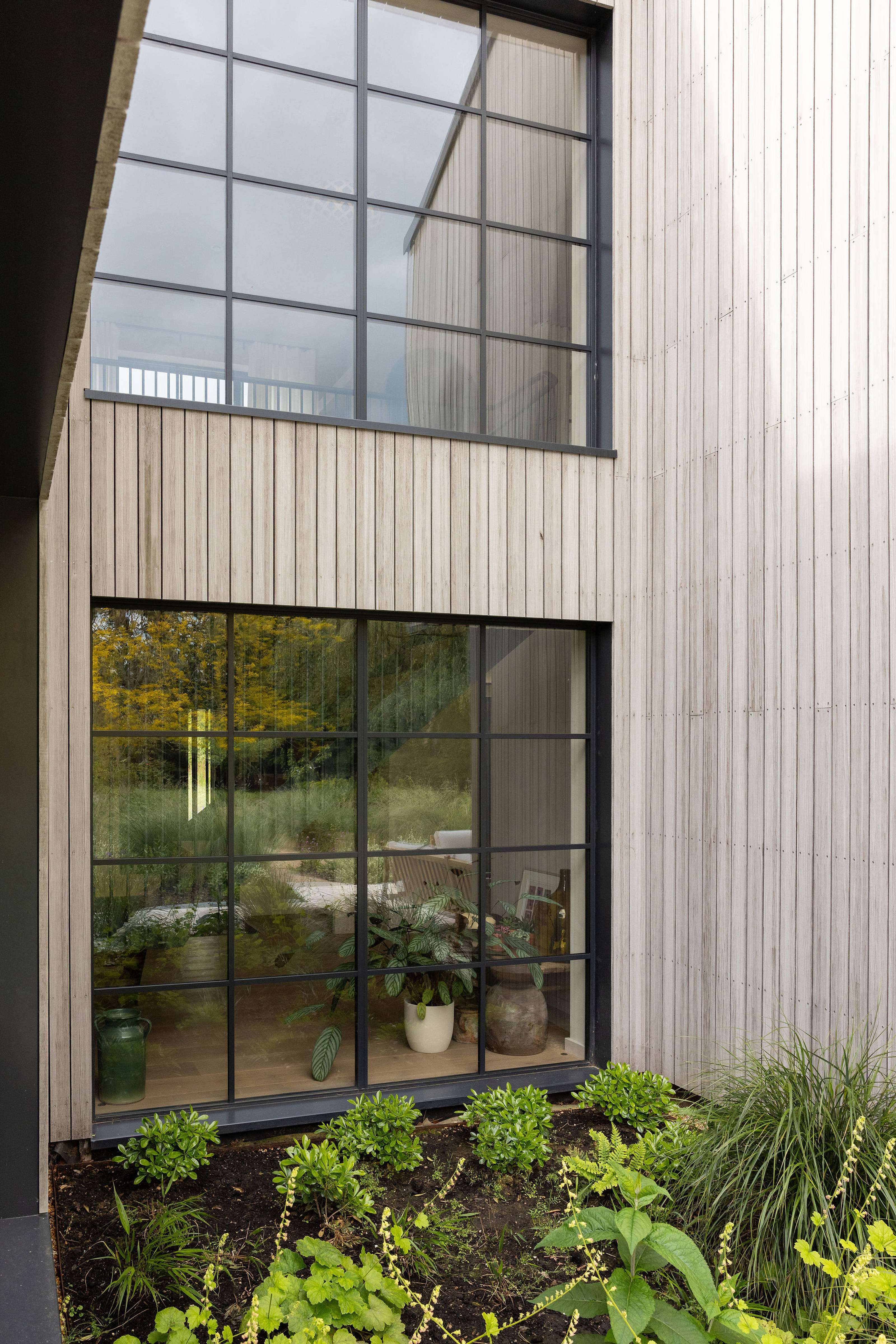

We design, engineer, fabricate and install in-house, so the grid is consistent across every opening rather than approximated between suppliers. Originating in the 1800s, this style rose in popularity in the early 1900s and even appeared on the Titanic. Aluminium steel-look windows emerged about 15 years ago to recreate that look with modern materials. Performance is evidenced rather than estimated. See the Fluid Timeless Window at Orchard House, or see one at our Watford showroom.

Architects — for listed buildings, conservation areas and heritage windows in period properties where a gridded frame is required and thermal performance still has to be evidenced.

Homeowners — for replacing failing steel windows with an upgrade inspired by the originals that can transform the property without losing the character that made it worth keeping.

Developers — where a heritage-referencing scheme needs one window and door system across every plot for contemporary new-build projects, helping teams make an informed decision across plots.
