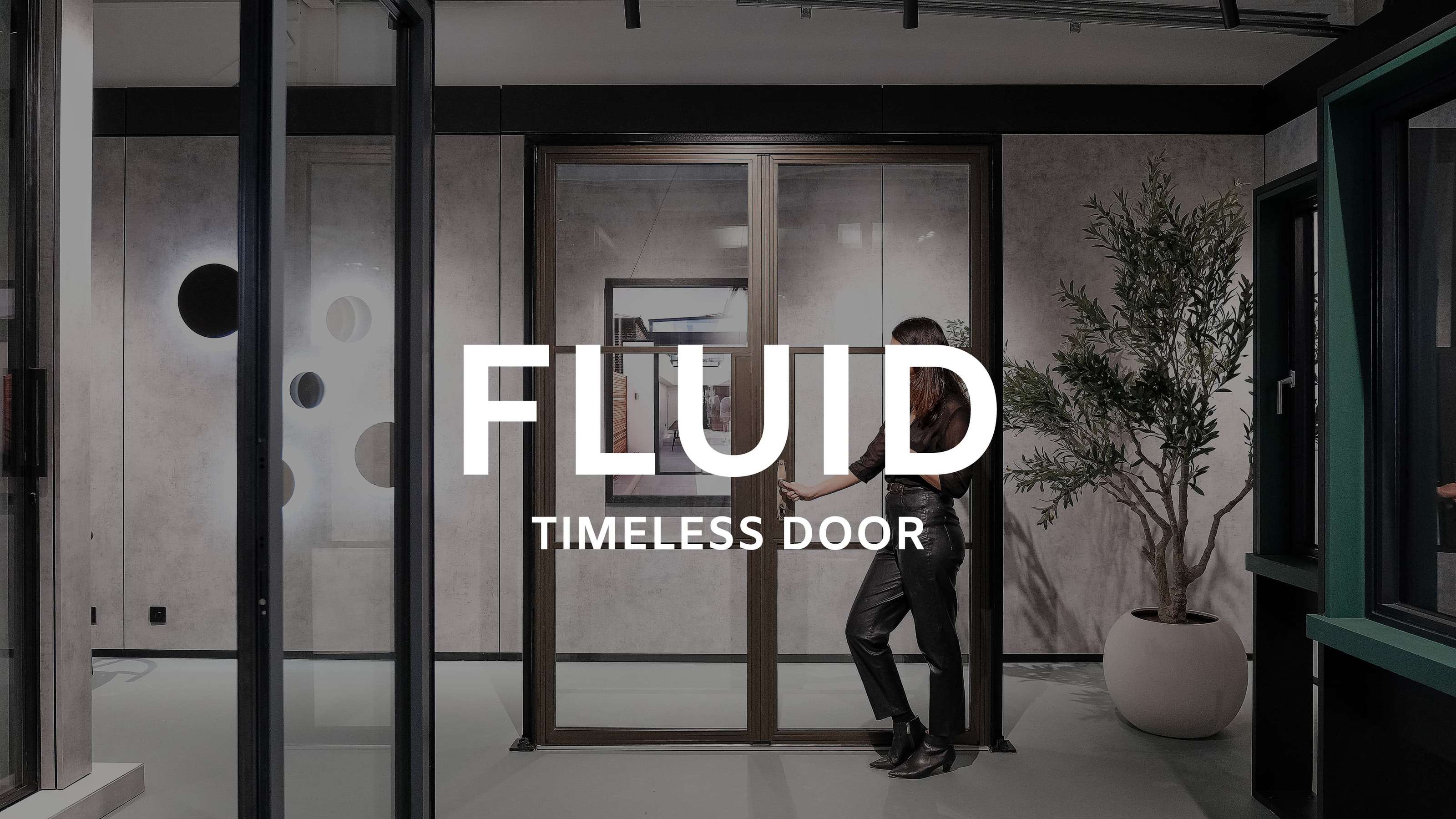

Fluid Timeless Door: Steel-Look Aluminium Doors with 58mm Sightlines

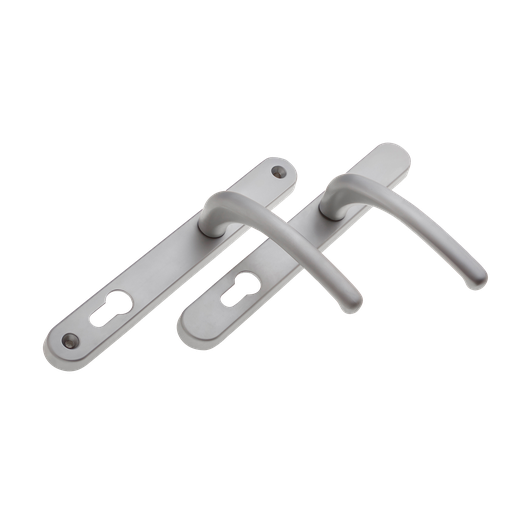

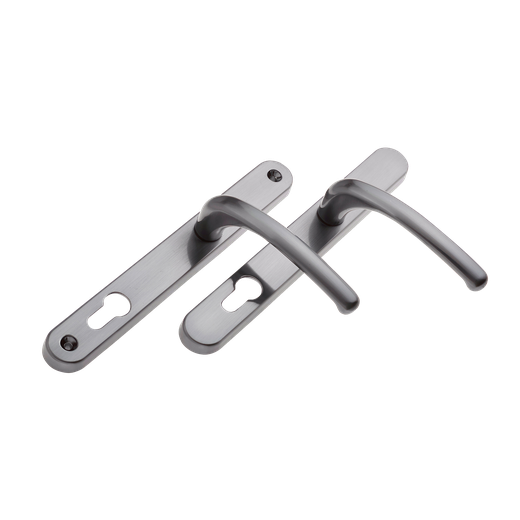

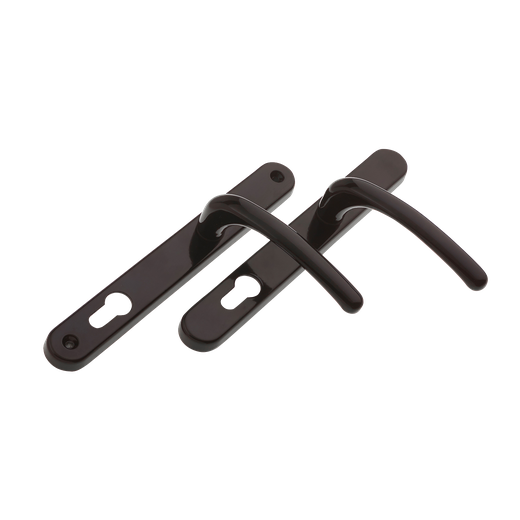

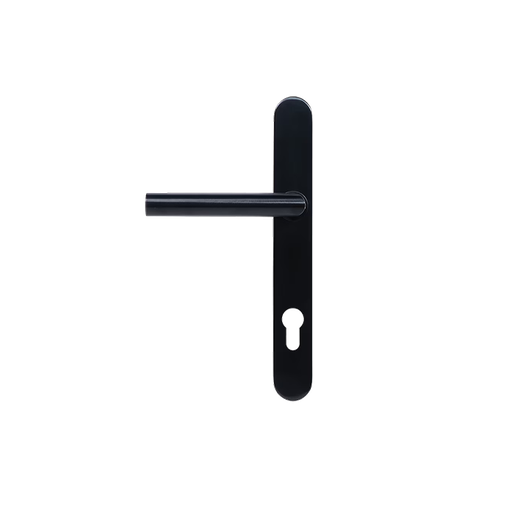

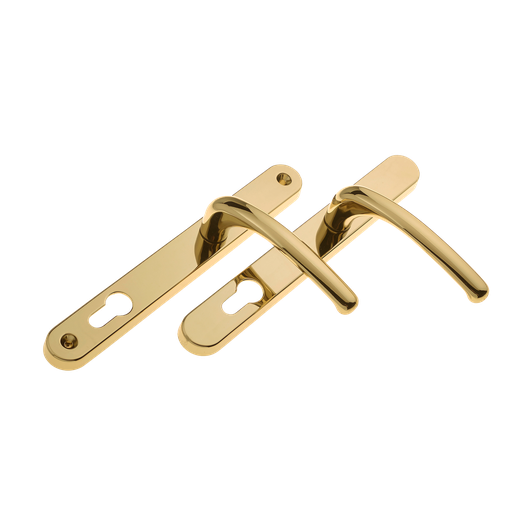

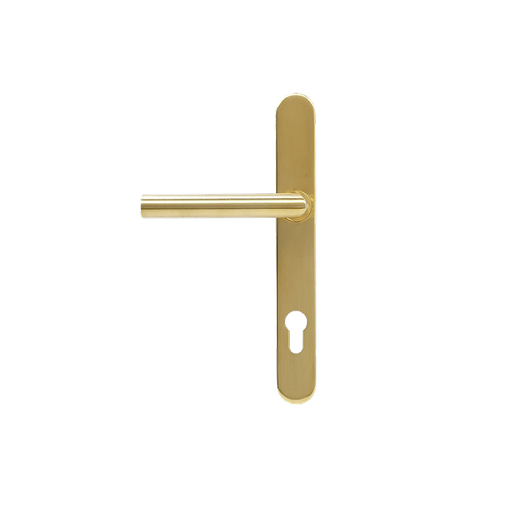

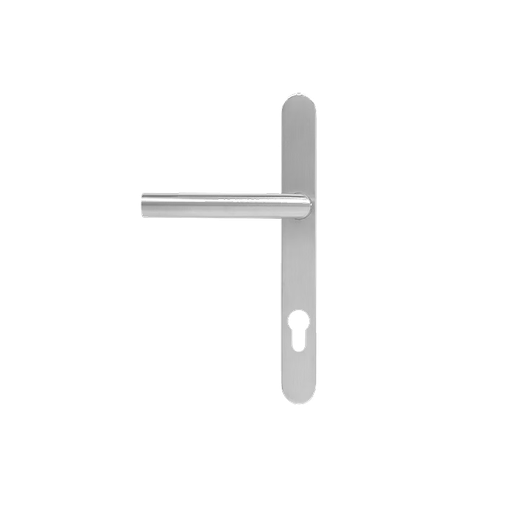

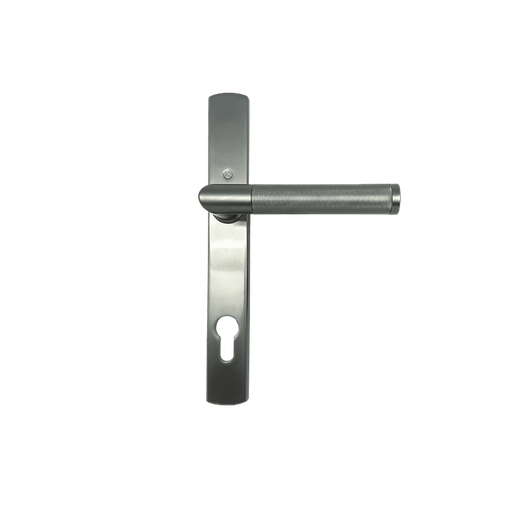

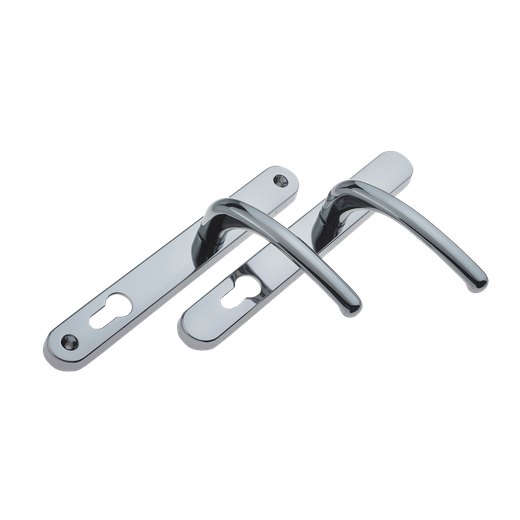

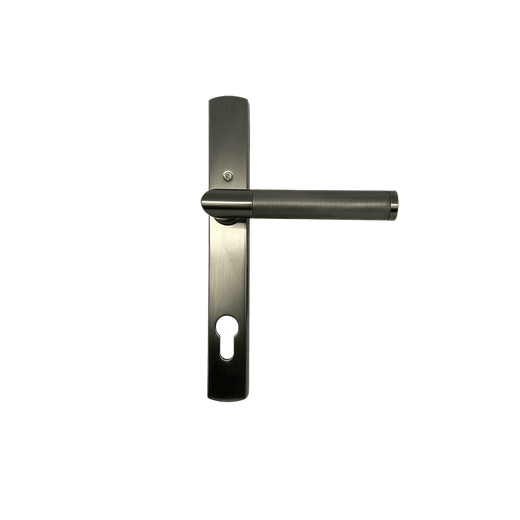

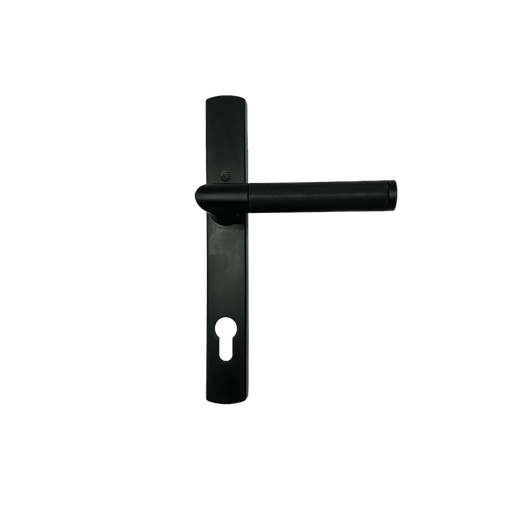

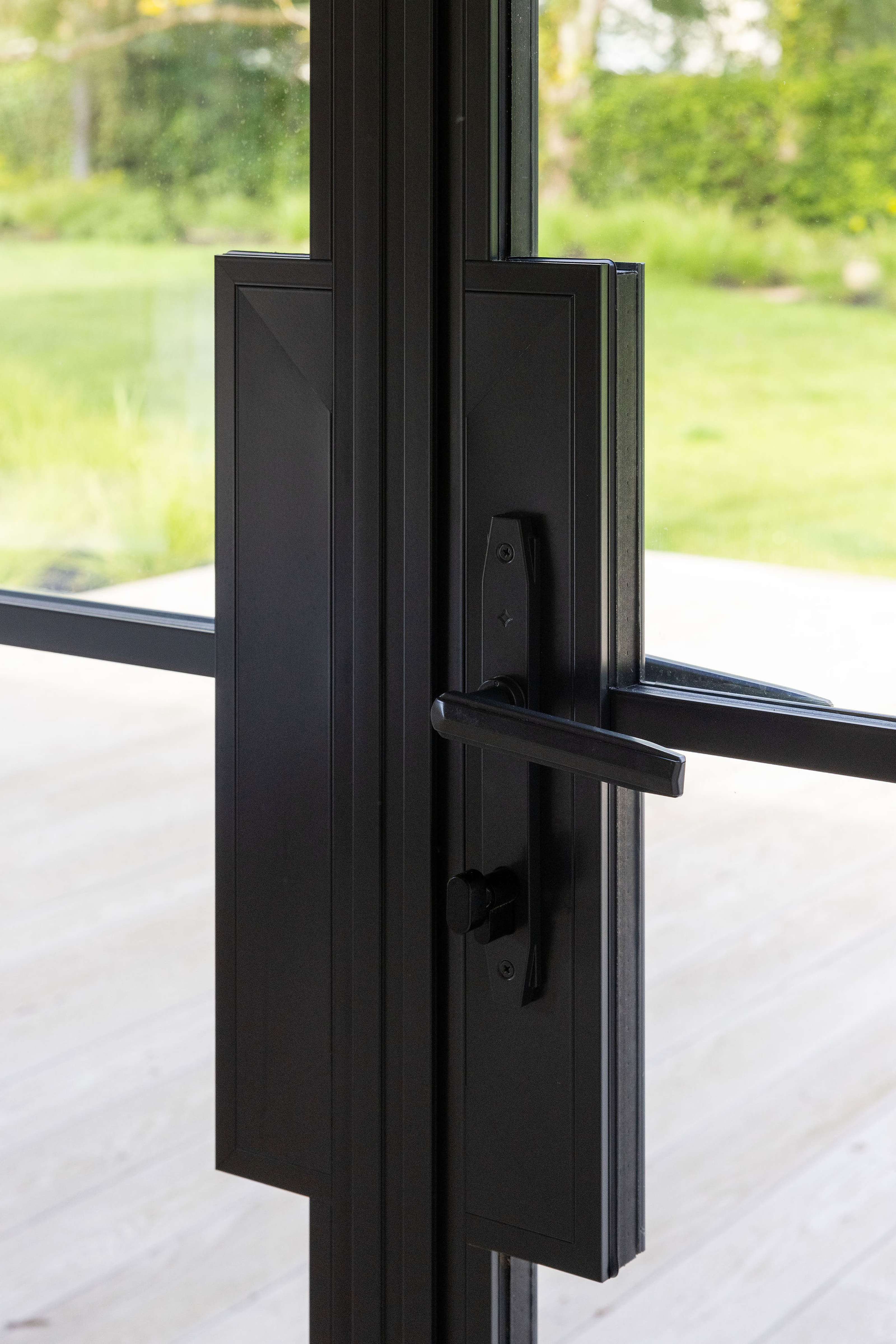

Traditional steel framing gives the slim profile but conducts heat. For architects, homeowners, and developers specifying steel look doors for period homes, conservation settings, or industrial-led new builds, the Fluid Timeless Door shows what that term means in practice: an aluminium steel look door that matches traditional steel proportions at a 58mm sightline while adding modern insulation, security, acoustic control, and low-maintenance performance. Made in fully thermally broken aluminium, it reaches U-values from 1.3 W/m²K where an uninsulated steel frame cannot, while also being lighter and corrosion resistant than traditional steel. Hardware is concealed and handles sit inline with the frame, preserving the industrial language without applied detail; the slim profile also helps create a contemporary look and improve light flow.

Doors run to 2400mm high at sash weights up to 60kg, on glass up to 28mm. That covers full-height internal and external openings while keeping the gridded proportion that defines the style. Multiple sash formats are available, including sliding doors and bifold doors, so a run can be set out in made to measure sizes to match an existing opening rhythm.

Optional glazing bars come in three widths — 20mm, 25mm or 48mm — so the density of the grid can be matched to the period and scale of the building. A 48mm bar reads as a heavier, more industrial division with an industrial style feel; a 20mm bar is closer to a contemporary interpretation and suits contemporary settings. This is the single decision that most affects whether the door reads as authentic in a period setting.

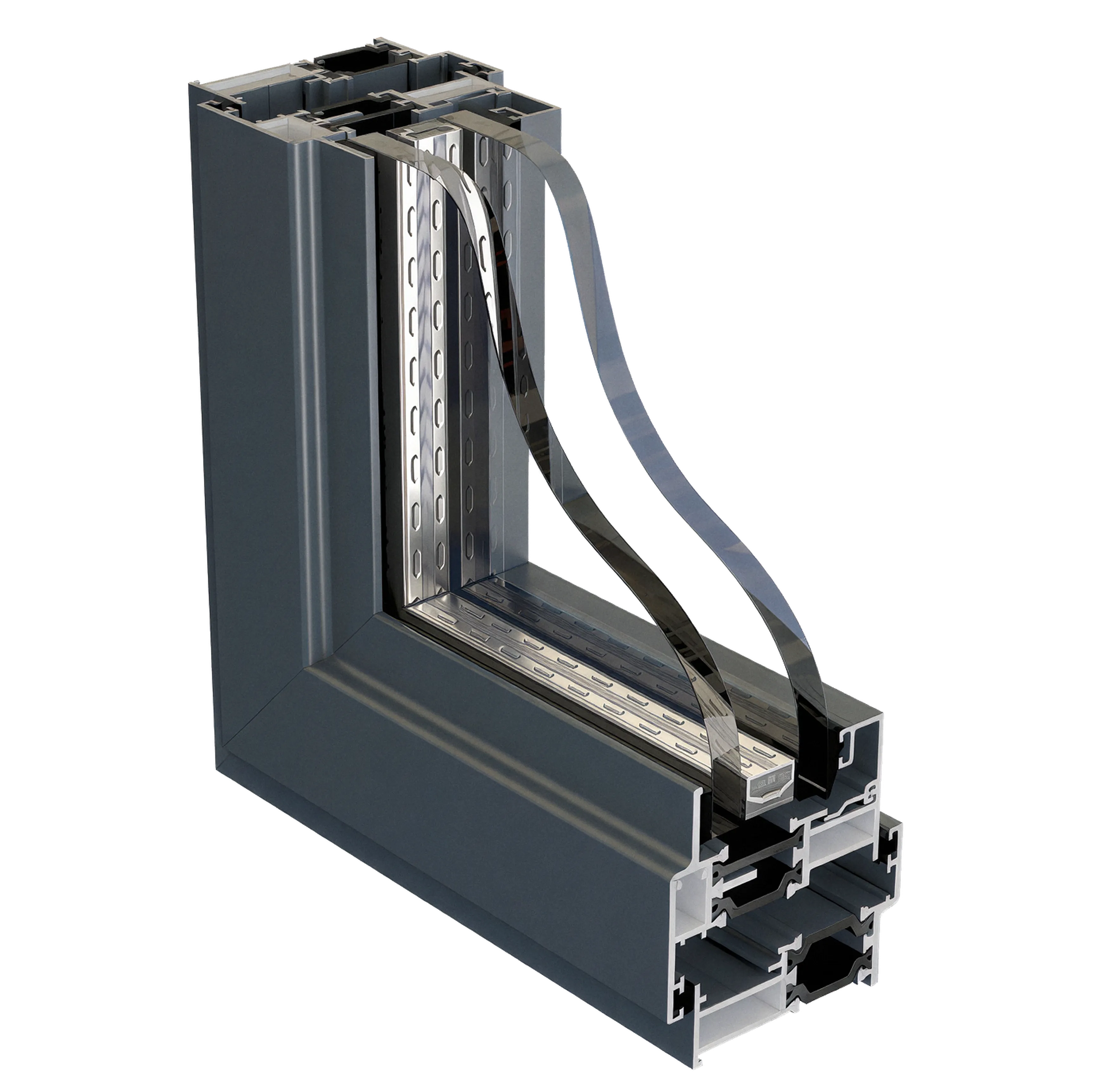

The system is fully thermally broken and achieves U-values from 1.3 W/m²K with sound insulation to 36dB, which is why aluminium heritage doors are used where energy efficiency must meet or exceed current Building Regulations. Modern systems typically use Low E double glazing as standard, supporting that thermal performance while also improving acoustic control. Weather performance is Class 4 air permeability and Class 9A water tightness — the highest water rating in the steel-look range and suitable for exposed elevations.

The system is PAS 24 certified, with a BS certified multi point locking system as part of the security specification, which covers local authority requirements for new dwellings. Glazing at or near floor level is toughened glazing where required for safety under Approved Document K and BS 6262-4, and laminated glass can be specified where security or acoustic performance requires it. Steel-look doors are designed to resist forced entry attempts, and this locking setup provides superior security for homes.

Planners in conservation areas will frequently accept a slim gridded frame where a frameless or minimally framed system would be refused, and the aesthetic appeal of heritage doors often makes them a stronger fit in planning-sensitive settings. The Timeless Door is the system for those applications, and pairs with the Timeless Window on the same elevation to keep one grid across the building. This heritage style works well in modern homes and more classic interiors when the same grid is carried through. Pre-application advice is worth taking before the bar width is fixed.

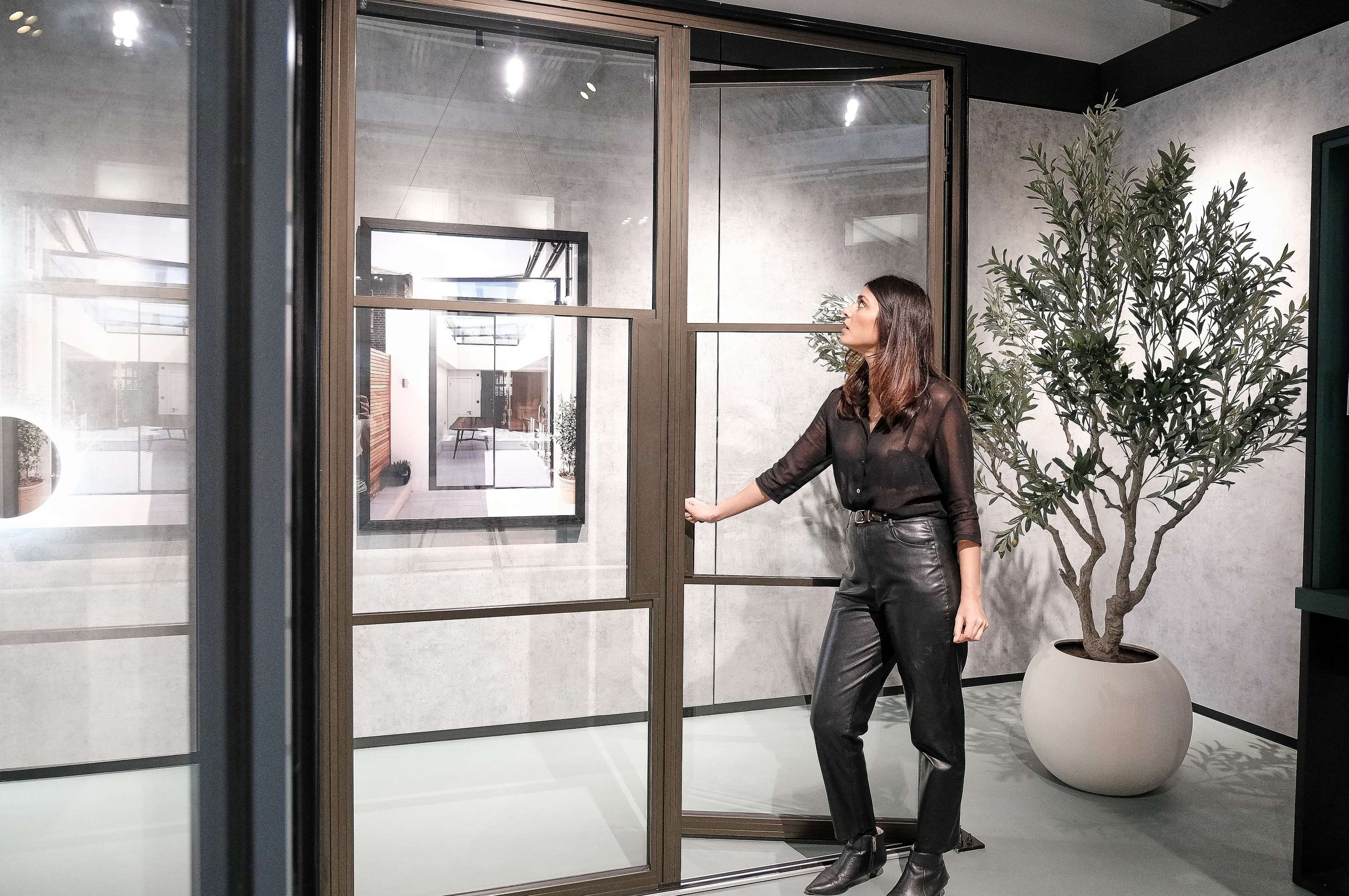

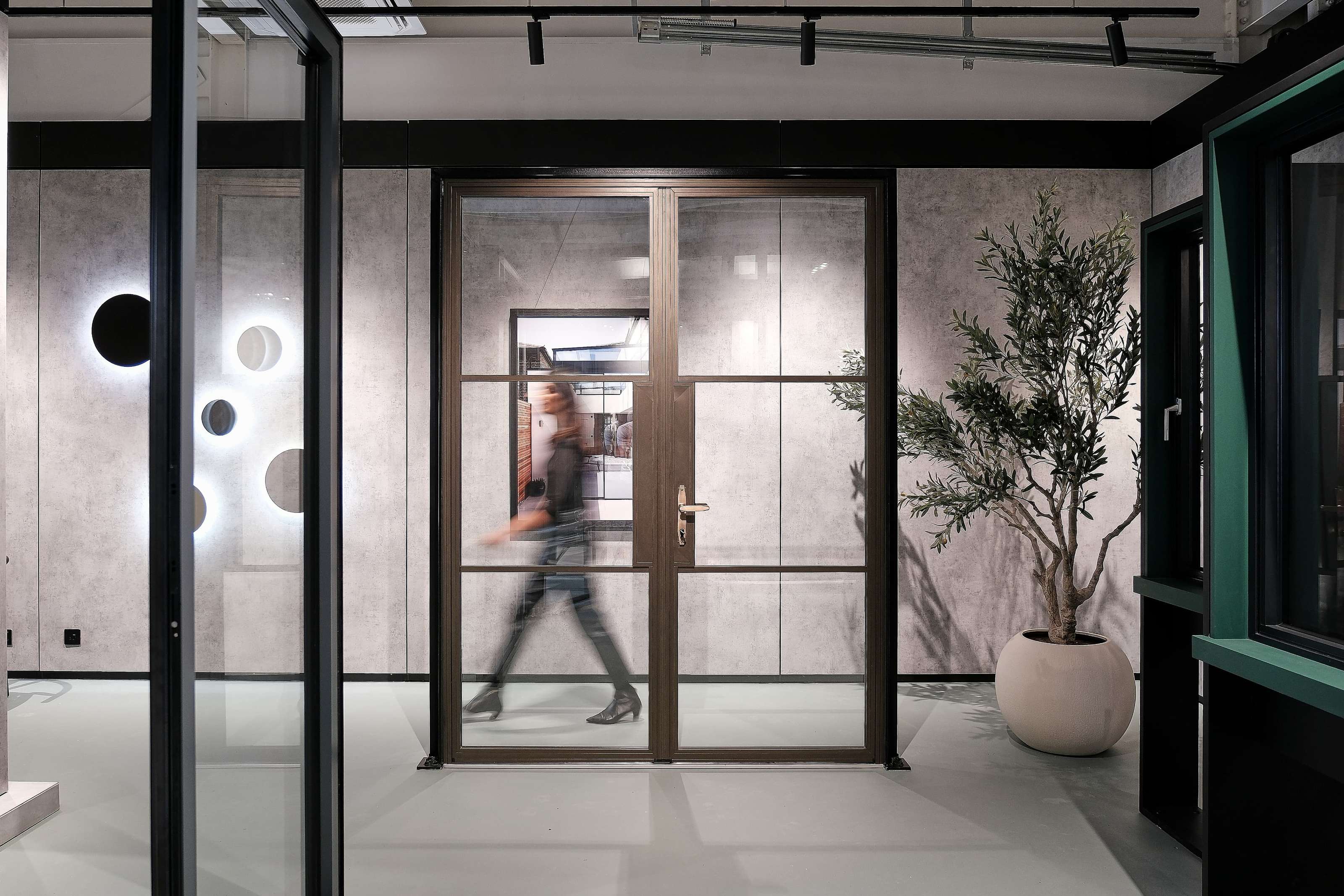

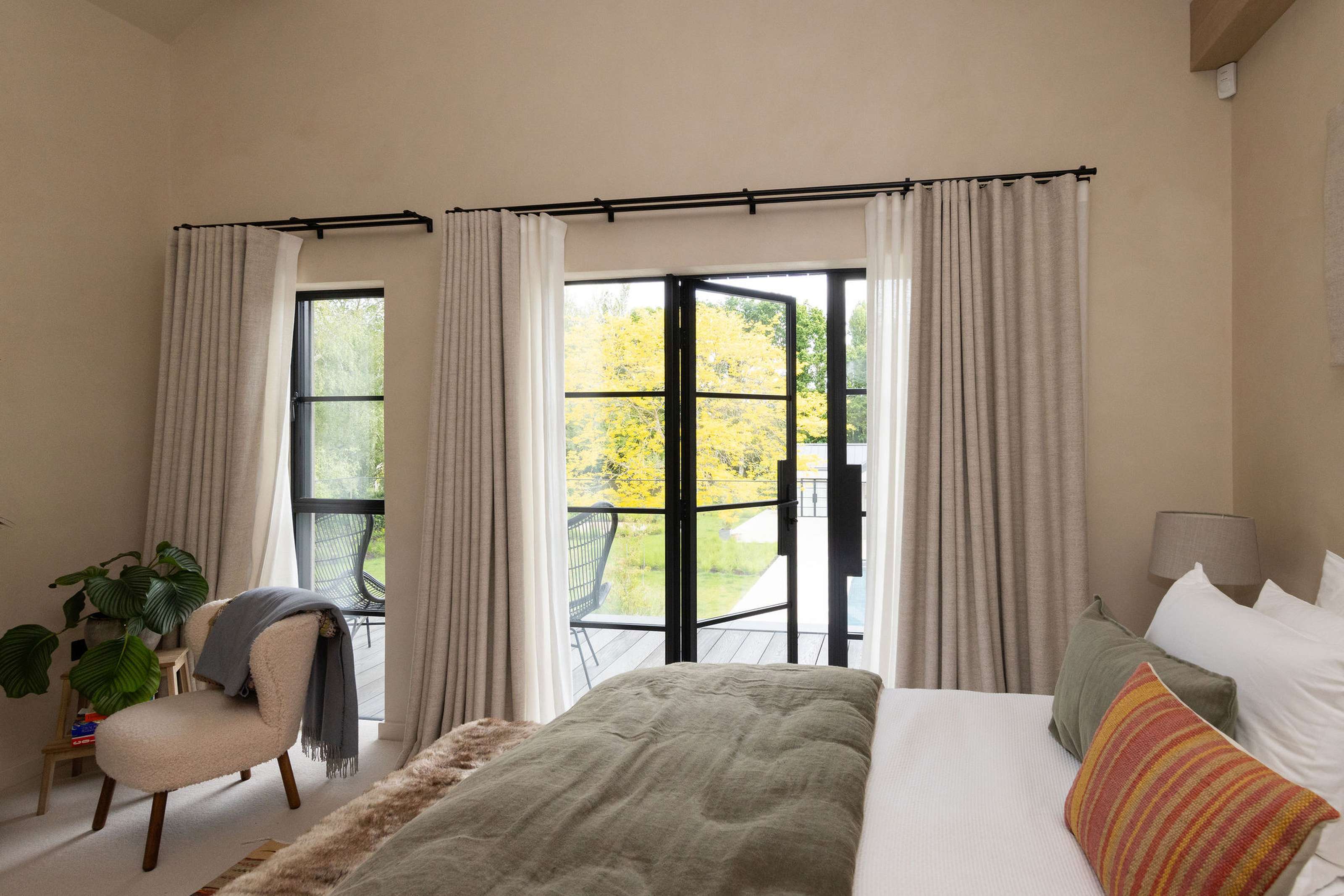

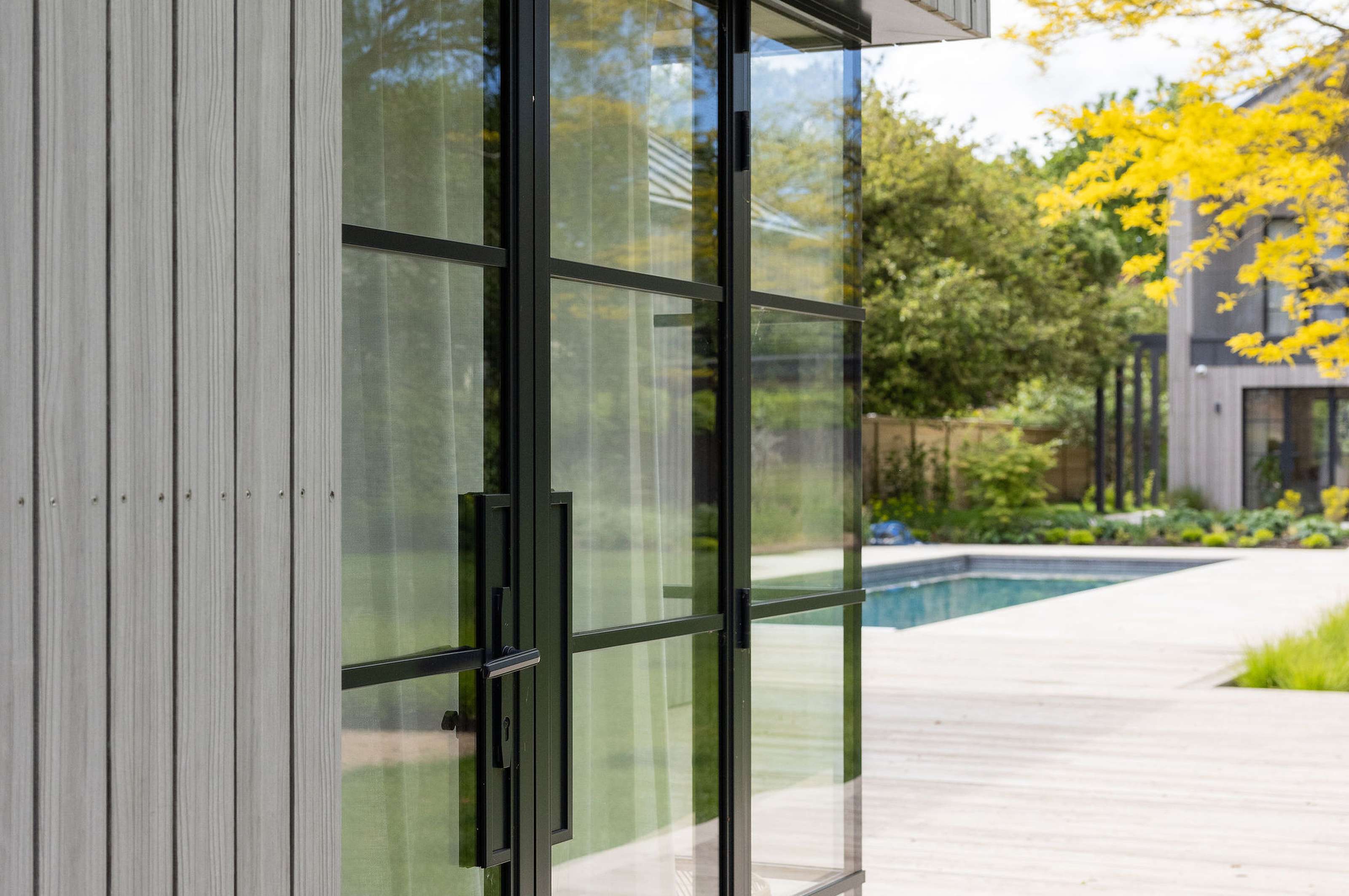

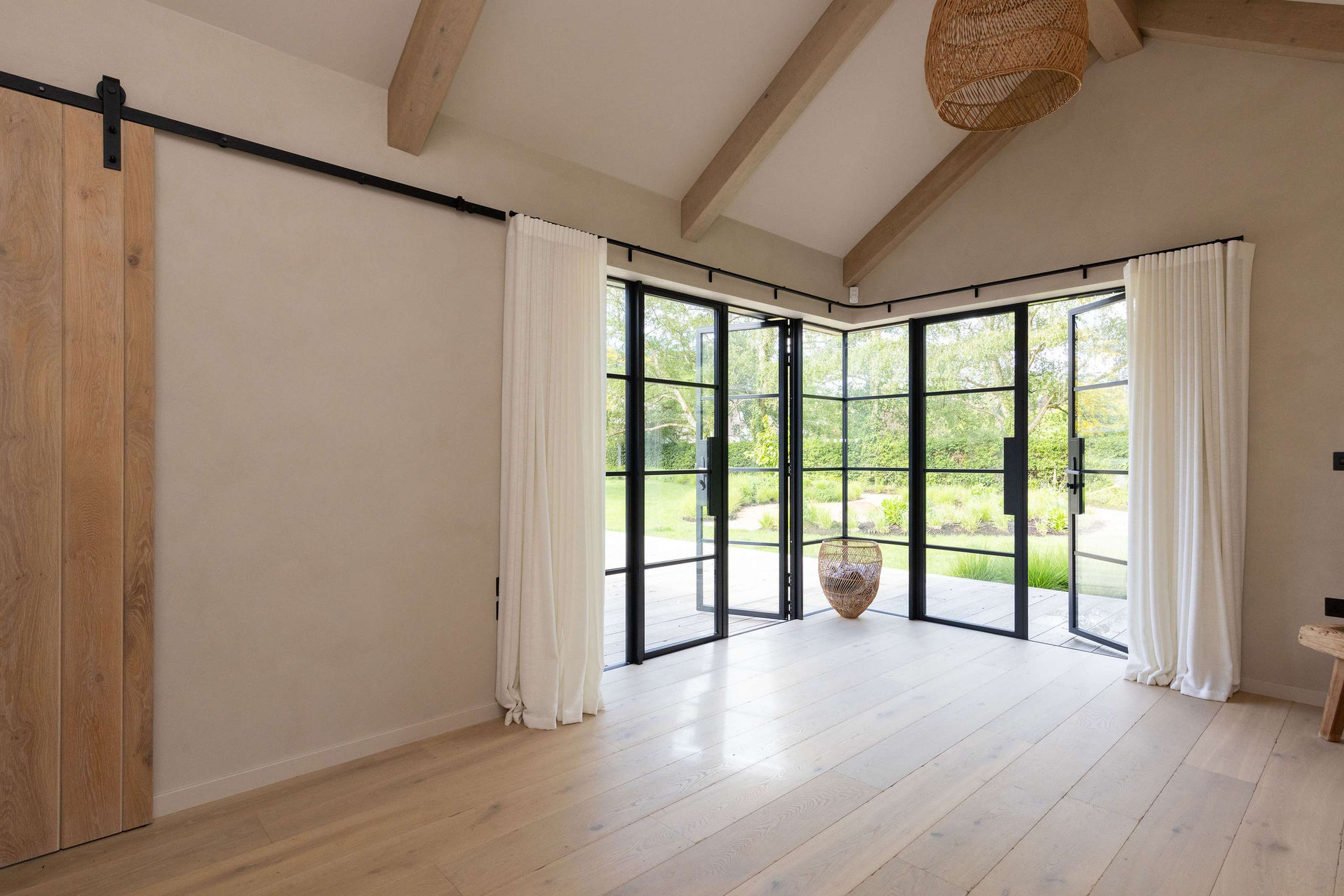

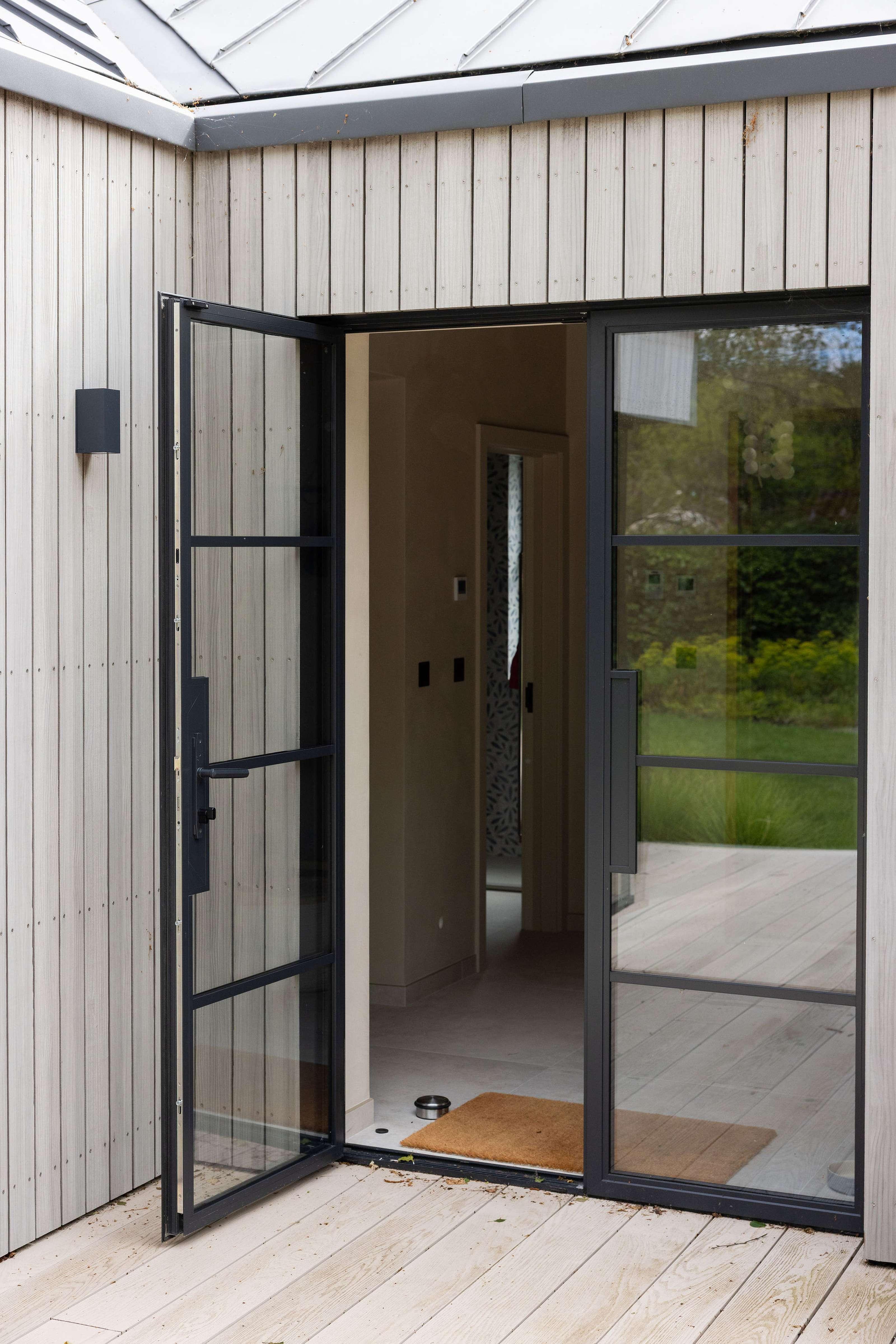

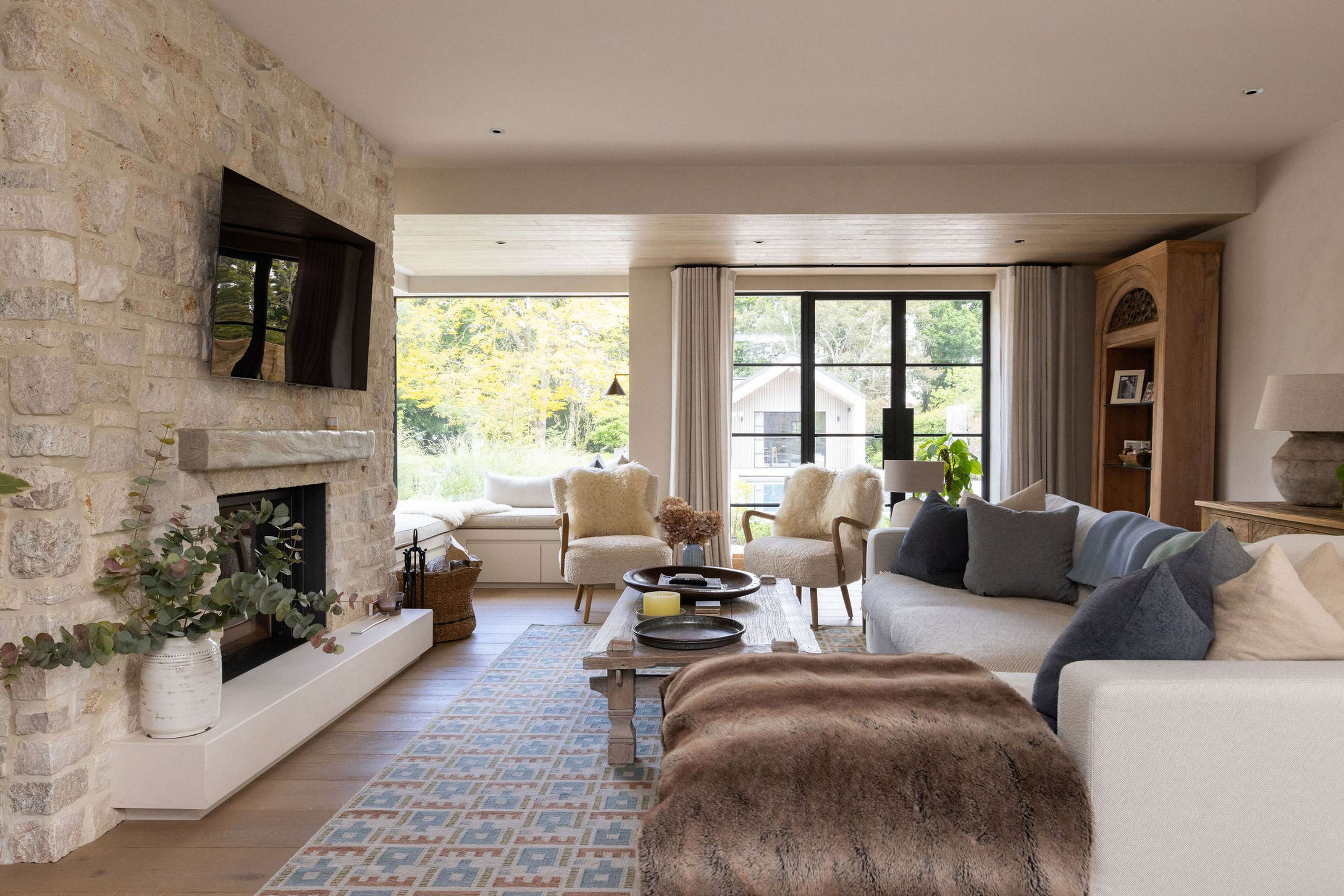

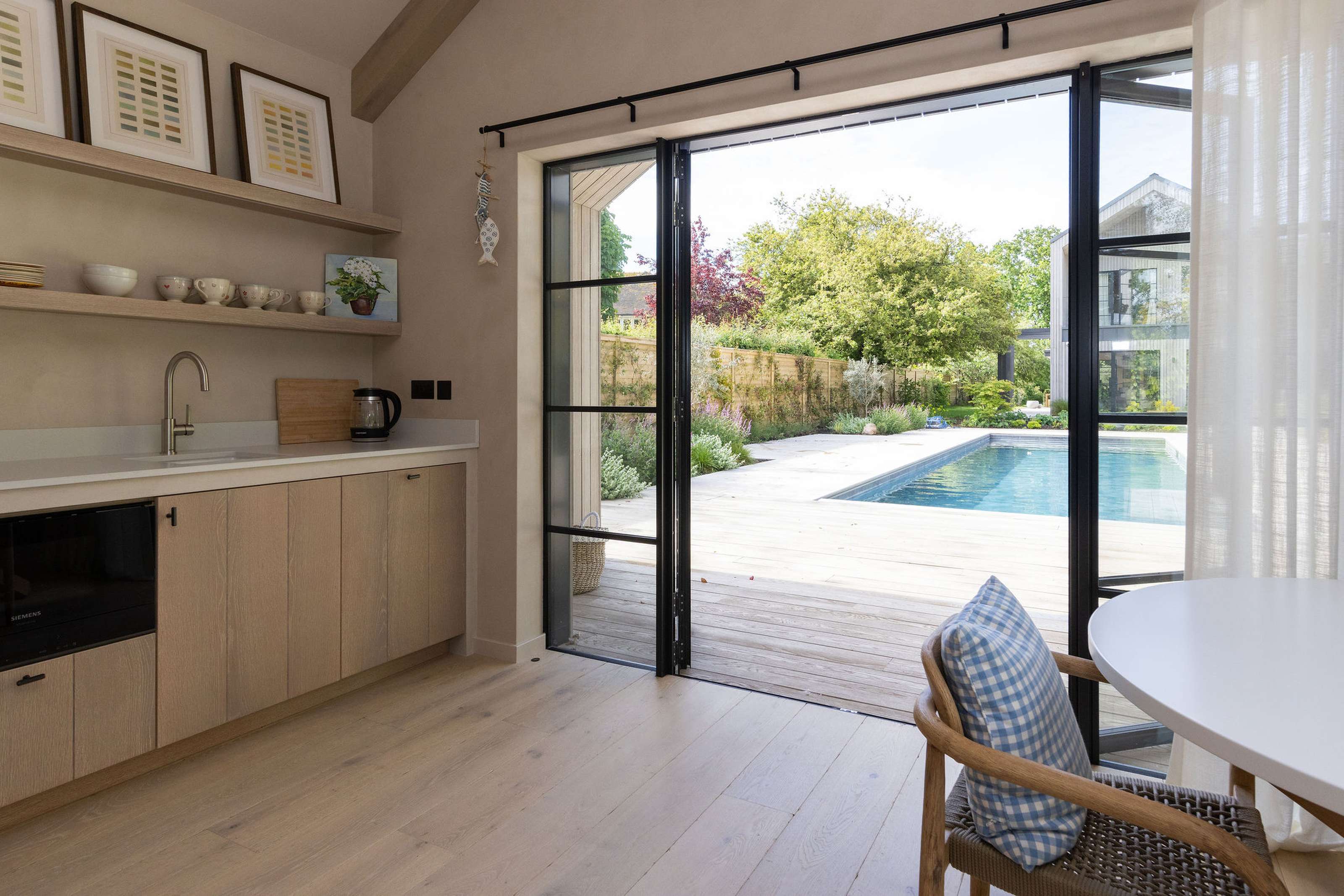

We design, engineer, fabricate and install in-house, so doors and windows in the same range are matched in bar width, sightline and finish rather than assembled from separate suppliers. Performance is evidenced rather than estimated. See the Fluid Timeless Door at Orchard House, or see one at our Watford showroom.

Architects — for conservation areas, period properties and industrial-referencing new builds where a gridded frame is required and thermal performance still has to be evidenced.

Homeowners — for a steel look without the cold frames, condensation and maintenance of traditional steel; aluminium doors offer a cost effective alternative because they are cheaper to produce than steel-framed products, and with proper maintenance can last up to 40 years.

Developers — where one heritage-style system has to cover doors and windows across a scheme, with a heritage range that includes matched windows and doors.
