Fluid Steel Door (Internal)

Technical Specifications

With five distinct models—Standard, E30, EW30, E60, and EW60—the Steel Door offers flexible performance that aligns with both design intent and safety requirements.

Dimensions

  • Sightlines : 45 mm

  • Max Glass Thickness : 45mm

  • Max Leaf Height : 2400 mm

  • Max Leaf Width : 1200 mm

  • Max leaf weight : 120 kg

Features

  • Fixed glazing

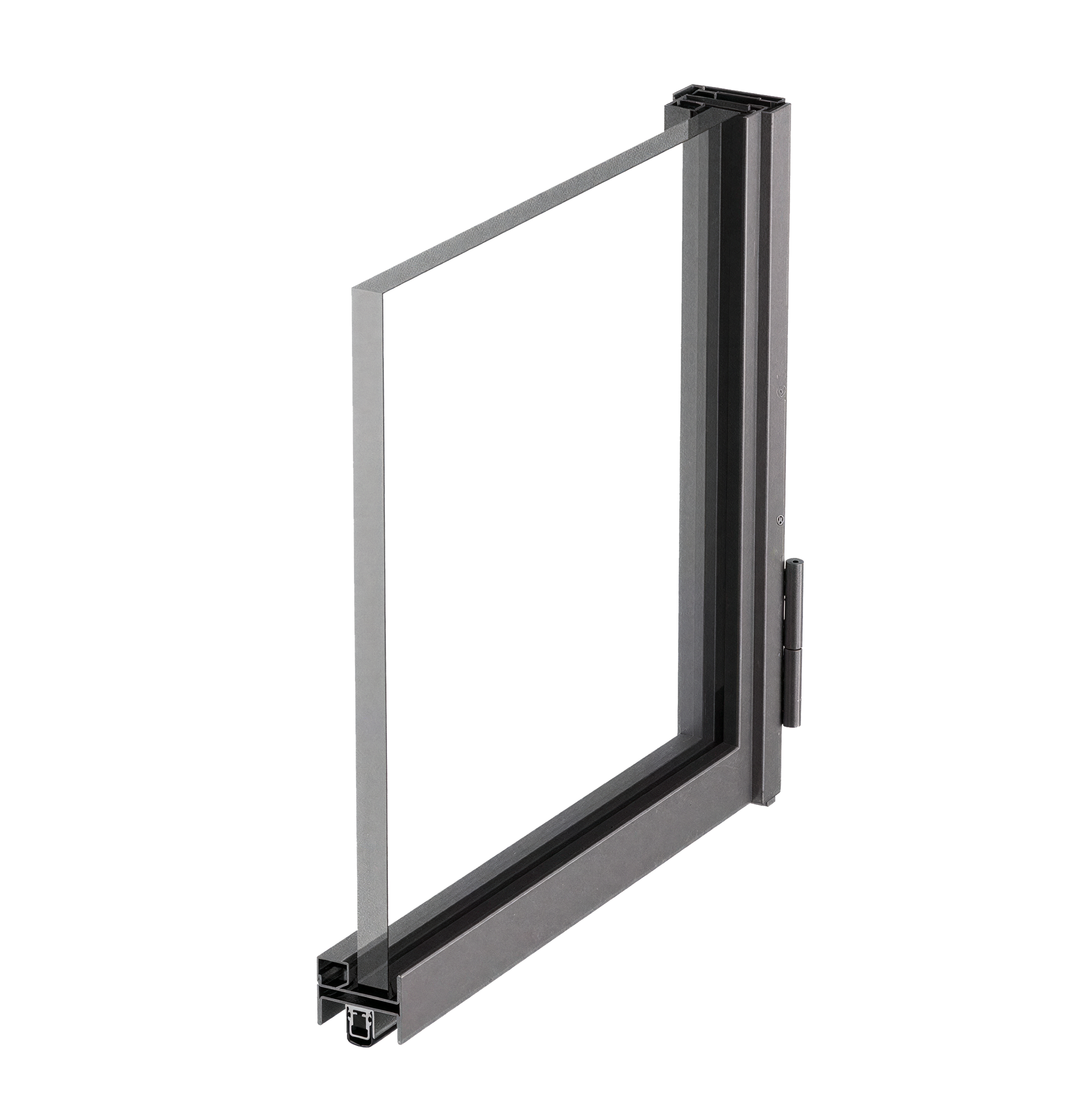

  • Structural depth 50 mm

  • Max. filling element thickness 24 mm

  • Steel glazing beads

  • Wet and dry glazing

  • Hot-dip surface galvanizing approved

Performance

  • CE/UKCA marking : EN 16034

  • Self-closing properties : Class 6 (EN 12400)

  • Escape / emergency routes : EN 179 & EN 1125

  • Operating forces : Class 3 (EN 12217)

  • Barrier-free : DIN 18040

  • Sound Insulation : Up to 35 dB (EN ISO 140-3)

Options

  • Flush and recessed versions

  • Sidelights / fanlights

Heat Control

Optional radiant heat control for 30 or 60 minutes, meeting EN 13501-2 standards.

Ideal for safety-critical spaces, they deliver discreet protection without compromising on design.

Model

Fire Resistance

Integrity (E)

Radiation (W)

Duration

Standard

No

No

No

-

E30

Yes

Yes

No

30 minutes

EW30

Yes

Yes

Yes

30 minutes

E60

Yes

Yes

No

60 minutes

EW60

Yes

Yes

Yes

60 minutes

E (Integrity): Prevents the passage of flames and hot gases
EW (Integrity + Radiation Control): Prevents flames and also limits heat radiation to nearby surfaces

Handles

Our door handles are designed to complement the refined geometry of our steel profiles, offering a polished matt finish and a precise 9mm spindle.

Their clean, minimalist form enhances the timeless elegance of the Fire Steel Door—providing both visual consistency and tactile quality.

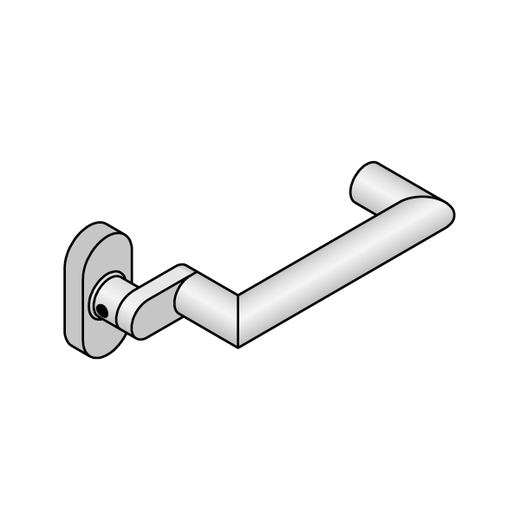

907351

907351

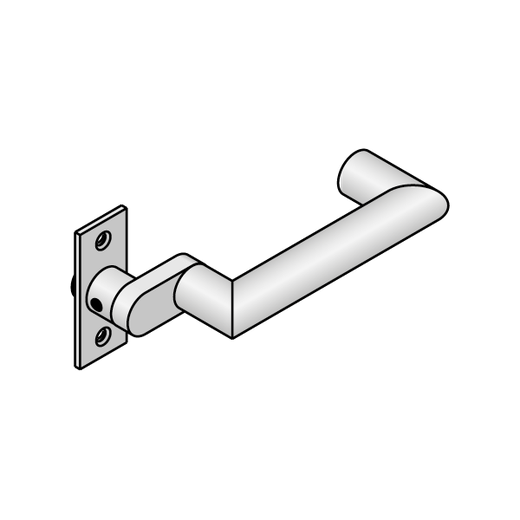

907326

907326

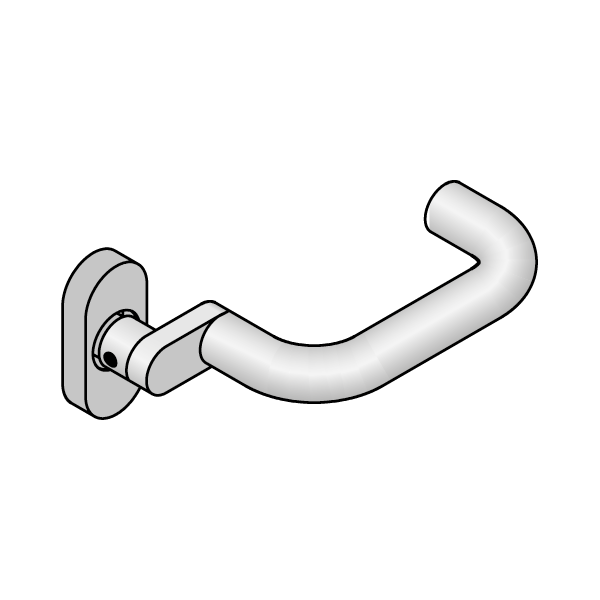

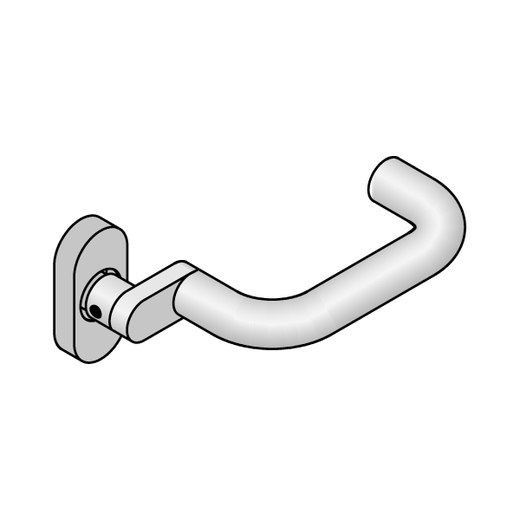

907350

907350

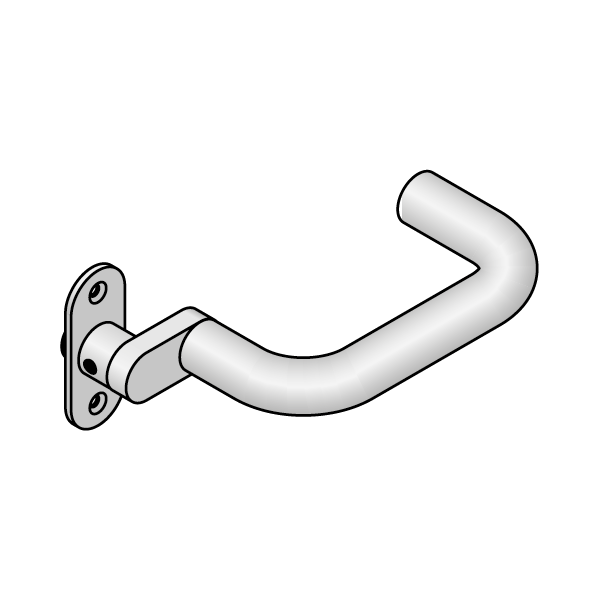

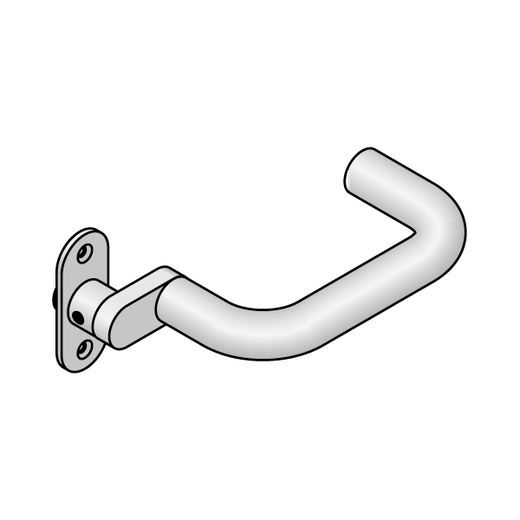

907327

907327

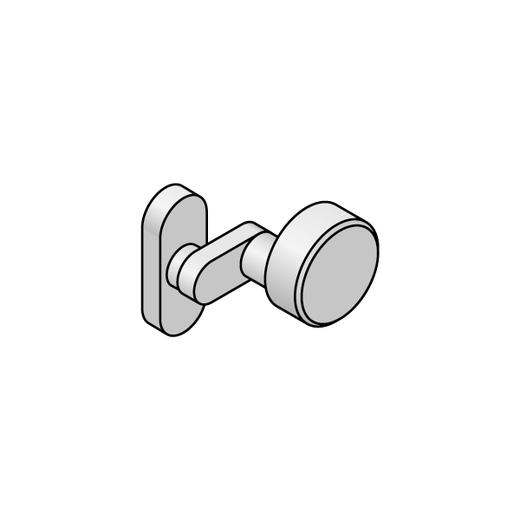

907356

907356

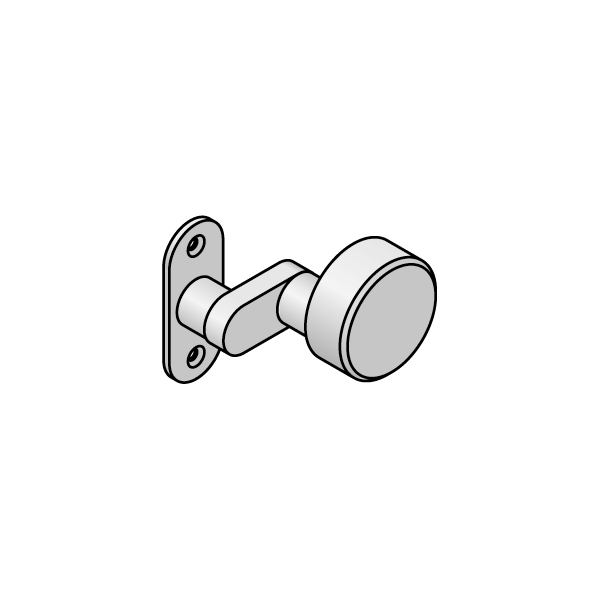

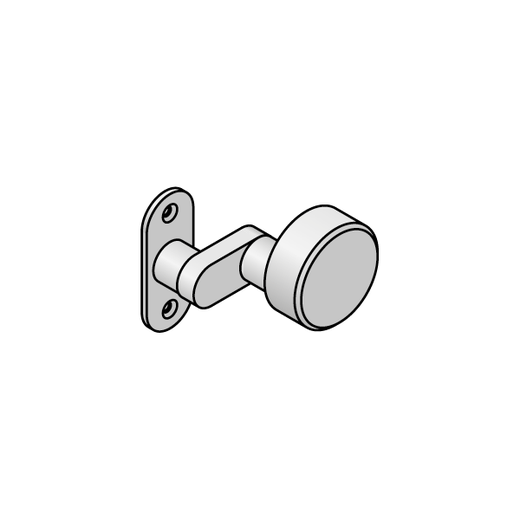

907329

907329

From material choice to installation detailing, the Fluid Steel Door is designed with timelessness in mind.

Benefits

Its minimal aesthetic lends itself to clean, modern interiors as well as character-sensitive renovations.

From material choice to installation detailing, the Fluid Steel Door is designed with timelessness in mind.

Design

Its minimal aesthetic lends itself to clean, modern interiors as well as character-sensitive renovations.

Integrated Elegance
Available in bright steel or steel zinc magnesium, it offers surface finishes including powder coating or galvanising. Options for frameless installation and flush integration allow the design to sit quietly within any interior setting.

Tailored to Space
Whether specified as a pivoting centrepiece or subtle side-hung partition, the Fluid Steel Door adapts in size, form, and finish—ensuring each project benefits from both visual continuity and functional sophistication.

Behind the refined appearance is a performance-led system engineered for longevity and internal functionality.

Technology

The Fluid Steel Door is fully fabricated from recyclable steel, meeting strict European performance standards. It offers sound insulation up to 35 dB, barrier-free access, and is tested to 200,000 open/close cycles.

Fire-Rated Models
Where additional performance is required, Fluid Steel is available in four certified internal fire-rated variants: E30, EW30, E60, and EW60, compliant with EN 16034. Each model is tested for safety, durability, and acoustic insulation, with discreet design integration.

Performance Meets Practicality
With steel or aluminium glazing beads, wet or dry glazing options, and capacity for glass up to 42mm thick, the system delivers robust functionality in a slim, versatile frame.

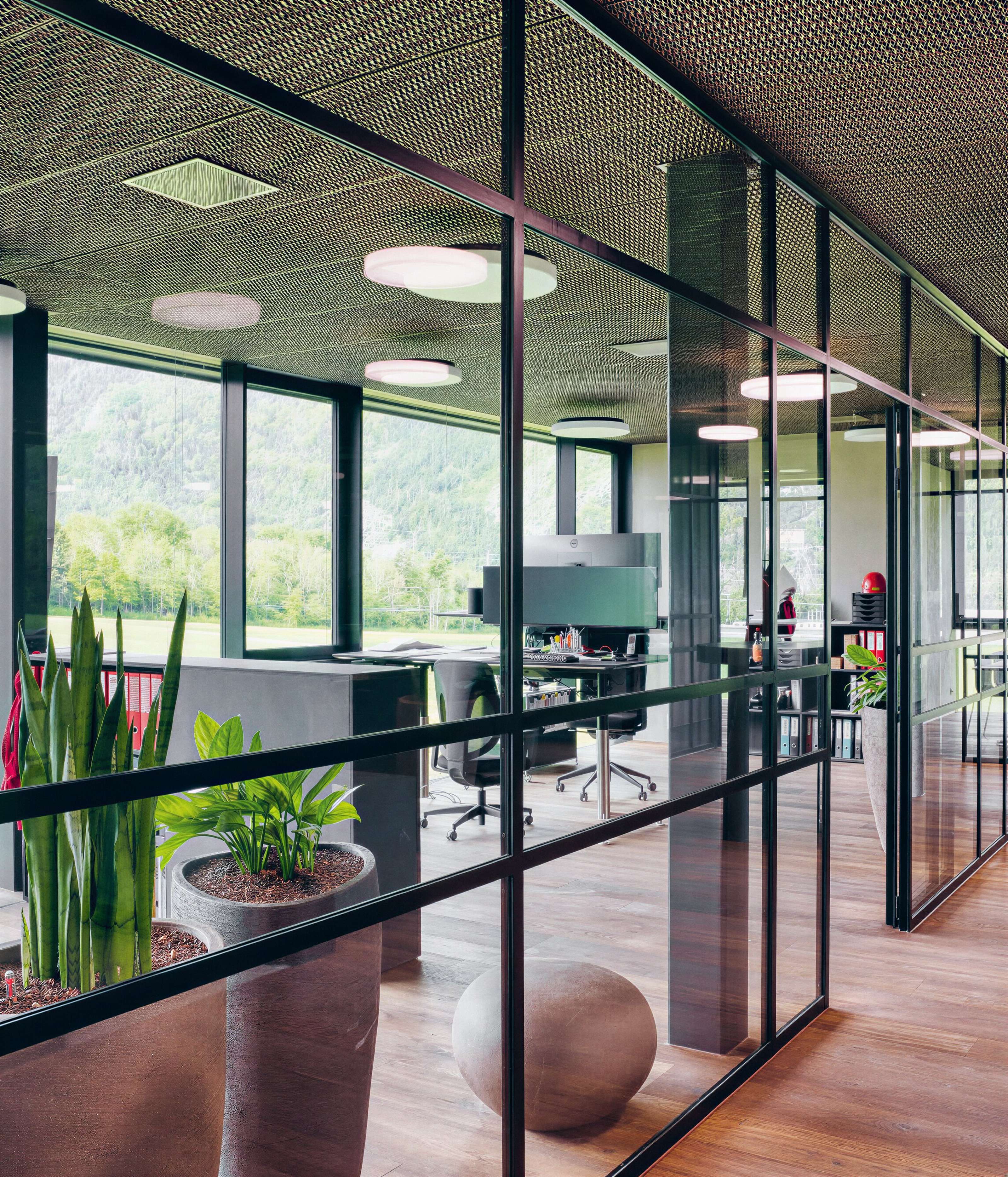

A modern expression of restraint and strength, the Fluid Steel Door elevates the interior fabric of a building.

Architecture

It’s designed to blend quietly into architecture while enhancing openness and spatial clarity. Its slender lines and refined proportions make it ideal for linking rooms, creating quiet zones, or marking subtle thresholds in open-plan spaces.

A Light-Filled Division
With face widths starting at just 23mm, the door introduces light while offering acoustic separation—ideal for homes, workspaces, and public interiors seeking a visual connection without compromise.

Adaptable Compositions
Available in single or double-leaf designs, with options for sidelight and fanlight integration, the system supports a range of spatial configurations without overpowering the architectural language.
