What’s the Difference Between Toughened, Tempered, and Laminated Glass?

Understanding the differences between toughened, tempered, and laminated glass is crucial for selecting the right safety glass for your project. While toughened and tempered glass are actually the same product with different names, laminated glass uses a completely different manufacturing process and safety mechanism.

This comprehensive guide explains each glass type, their applications, and helps you choose the perfect solution for your architectural or design needs.

Each safety glass type offers unique properties and safety benefits for different applications.

Toughened Glass (Also Called Tempered Glass)

Toughened glass is thermally treated safety glass manufactured through a precise heating and rapid cooling process. Tempered glass is made from annealed glass that undergoes a thermal tempering process, where it is heated to around 620 °C (1,148 °F) and then rapidly cooled to increase its strength. This creates internal stresses that make the glass approximately four to five times stronger than normal glass of the same thickness.

The glass must be cut to size or pressed to shape before the tempering process begins, as it cannot be re-worked once tempered. During the manufacturing process, polishing the edges or drilling holes in the glass must be completed before the tempering process starts to ensure the glass maintains its integrity.

Toughened glass is designed to shatter into thousands of tiny, blunt pieces to reduce injury risk, making it safer than standard glass. This characteristic breakage pattern distinguishes toughened safety glass from standard float glass, which breaks into dangerous sharp shards.

All toughened glass panels must comply with British safety standards BS EN 12150, with heat-soaked products meeting BS EN 14179 to reduce the risk of spontaneous breakage from nickel sulphide inclusions.

Laminated Glass

Laminated glass consists of two or more glass layers bonded together with a polymer interlayer, most commonly Polyvinyl Butyral (PVB). When broken, the plastic interlayer holds glass fragments together, preventing them from falling and significantly reducing injury risk.

The manufacturing process involves placing cleaned glass plies with interlayers, then subjecting the assembly to heat and pressure in an autoclave. This bonds the layers, removes air, ensures optical clarity, and cures the interlayer.

Beyond safety, laminated glass blocks up to 99% of UV radiation compared to just 75% for standard clear glass. Sound reduction properties are substantial – a typical 6.4 mm laminated panel with PVB interlayer achieves approximately 33-34 dB sound reduction, while acoustic variants can reach 40-54 dB depending on configuration.

Laminated safety glass must comply with BS EN 14449, with security ratings falling under EN 356 (P1A through P8B classifications).

Key Terminology Clarification

Toughened and tempered glass are identical products with different regional names. “Toughened glass” is the standard terminology in the UK and Europe, while “tempered glass” is more common in the United States. All industry standards and certifications treat them as the same product with identical manufacturing processes and performance characteristics.

An alternative method of toughening glass is chemical toughening, which involves ion exchange to create a surface layer of compression, enhancing toughness compared to thermal tempering. However, chemically toughened glass may not qualify as safety glass because it can still produce sharp shards when broken.

Understanding the fundamental differences helps you make informed decisions for your specific project requirements.

Safety Performance

The breakage patterns of these glass types differ dramatically. When toughened glass breaks, it shatters entirely into small, blunt pieces – the panel collapses but fragments are less likely to cause severe cuts. Laminated glass cracks in a characteristic “spider web” pattern while the interlayer holds all fragments in place, maintaining barrier integrity.

Regarding impact resistance, toughened glass offers superior pre-break strength per monolithic pane. However, laminated glass excels in post-breakage safety, maintaining its protective barrier function even when damaged.

Both glass types carry impact classifications under BS EN 12600, with Class 1(B)1 being the highest safety rating for pendulum impact testing.

Security and Protection

For burglar resistance and forced entry protection, laminated glass significantly outperforms toughened glass. Security-rated laminated glass with EN 356 P-series classifications (P1A through P8B) can delay or prevent forced entry using tools such as hammers, axes, or bricks. Once toughened glass breaks, it offers no barrier resistance whatsoever.

Building codes in various countries, including the United States, require the use of tempered or laminated glass in specific situations, such as near doorways, stairways, and large windows, to enhance safety.

For blast and storm resistance applications, laminated glass configurations maintain barrier integrity even when the glass breaks, protecting building occupants from flying debris and pressure waves, while specialist solar control glass solutions help manage solar heat gain without sacrificing natural light.

Cost and Availability

Typical UK supply costs for toughened glass at 6 mm thickness range from approximately £35-45 per square metre. Laminated glass in standard 6.4 mm PVB configuration costs around £42-55/m², representing a 20-40% premium over equivalent toughened panels. Security or acoustic-rated laminated glass can reach £70-110/m² or higher.

Toughened glass cannot be cut, drilled, or mechanically altered after tempering, so all cut outs, drill holes, radius corners, and dubbed corners must be specified beforehand. Laminated glass requires additional manufacturing steps including autoclaving, resulting in longer lead times.

When used in double or triple glazing, toughened glass improves energy efficiency and is 100% recyclable, offering excellent long-term value alongside environmental benefits.

For detailed specifications and bespoke requirements, contact the Fluid Glass technical team.

Different glass types excel in specific applications based on their unique safety and performance characteristics.

Ideal Uses for Toughened Glass

Toughened glass is commonly used in buildings for applications such as frameless glass doors, skylights, and large windows, particularly in areas where safety is a concern due to potential human impact. Structural glazing applications include curtain walls, storefronts, and commercial facades where wind load resistance and thermal stresses are primary considerations.

In residential settings, toughened glass is often utilized for shower doors, glass table tops, and glass shelves, providing both safety and aesthetic appeal. Toughened glass can be used in various applications, including shower screens, glass doors, low-level windows, and automotive side and rear windows.

It is commonly used for safety barriers and balustrades to provide safety without blocking views, especially in balustrade structural glazing systems that prioritise uninterrupted sightlines. Clear toughened glass is ideal for frameless installations where polished edges and optical clarity are essential.

Toughened glass is increasingly used in public venues such as bars and pubs to minimize the risk of injury from broken glass, as it shatters into small, blunt pieces rather than sharp shards.

Toughened glass can withstand high temperatures and rapid temperature changes better than normal glass, which can shatter under thermal stress – making it suitable for glass roofing and canopies exposed to varying weather conditions, and products demonstrated in our architectural glazing showroom showcase how these systems perform in real environments.

Toughened glass provides acoustic insulation, reducing sound levels by up to 60 dB, and offers better UV protection than standard glass.

Explore Fluid Glass toughened glass products for your next project.

Ideal Uses for Laminated Glass

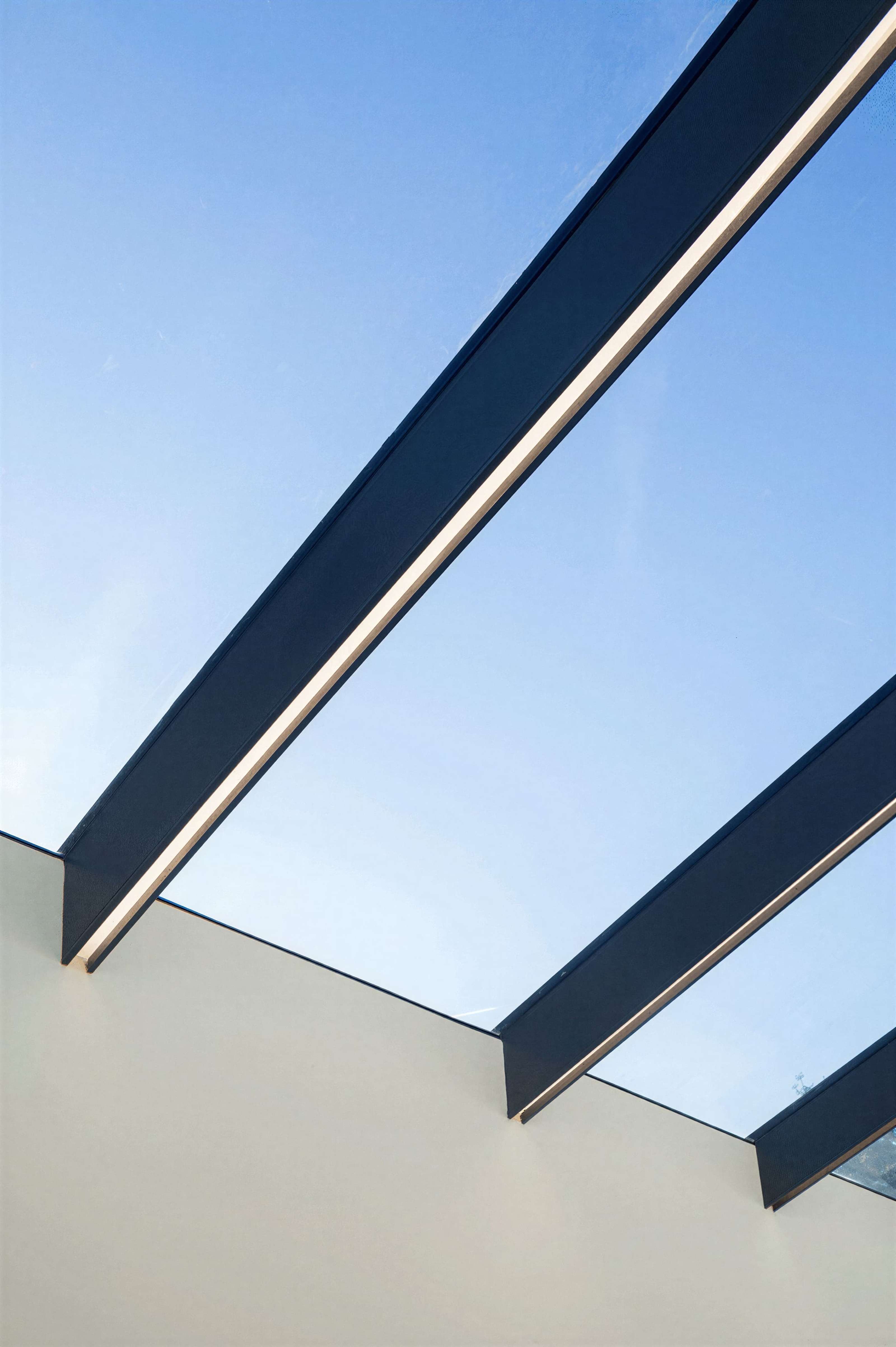

Laminated glass excels in overhead glazing and glass roofing applications. UK building regulations mandate that the inner pane in sloped or overhead glazing must be laminated safety glass to prevent falling fragments.

Security-sensitive applications including banks, retail premises, and residential properties benefit from laminated glass’s forced entry resistance. The interlayer maintains barrier function even when the glass surface is compromised, as demonstrated by structurally glazed links like the Chiltern Hills residential glass connection that preserve security while maximising light.

Acoustic applications such as schools, hospitals, and properties near busy roads utilize specialized acoustic laminated glass achieving 40-54 dB sound reduction. UV protection makes laminated glass ideal for museums, galleries, and spaces with valuable furnishings susceptible to sun damage.

Review Fluid Glass laminated glass case studies for project inspiration.

Building Regulation Requirements

In the UK, toughened glass products must comply with specific safety standards, including those outlined in Approved Document K, which details where toughened glass should be used in critical locations to avoid injuries.

Critical locations requiring safety glass include:

• Glazing in doors and side panels within 300 mm of doors

• Low-level glazing below 800 mm

• Glazing near doors less than 1,500 mm in height

• Wet areas including bathroom spaces

• Balustrades and protective barriers

Safety glass must be permanently marked with manufacturer identification, product standard (BS EN 12150 for toughened, EN 14449 for laminated), heat soak treatment where applicable (EN 14179), and impact classification (EN 12600).

For overhead glazing up to 85° from vertical, the inner pane must be laminated safety glass meeting Class 1(B)1 performance.

Selecting the correct safety glass depends on your specific project requirements, location, and safety priorities.

For Structural and Architectural Projects

When selecting toughened glass thickness, considerations include the span, support, and intended use, which can guide the choice of thickness for specific projects. Evaluate wind load requirements, building height, and exposure conditions when specifying glass for facades and structural glazing.

For architectural needs requiring large glass panels, toughened glass offers superior strength-to-weight ratios. However, larger panels may require heat-soak testing to minimize spontaneous breakage risk.

The Fluid Glass technical team provides specification support for complex structural glazing projects.

For Security and Safety Applications

Assess risk levels when choosing between glass types. For high-security environments, laminated glass with appropriate EN 356 ratings provides measurable forced entry resistance. Toughened glass alone offers no security benefit once broken.

Consider insurance requirements and liability factors – many commercial policies specify minimum glazing standards for burglary coverage. Laminated security glass often qualifies for reduced premiums.

For Residential and Commercial Interiors

For table tops, shelves, and furniture applications, clear toughened glass offers excellent aesthetics with superior durability. Mirror and frosted finishes are available for enhanced design flexibility.

Consider acoustic requirements in your space – standard toughened glass provides moderate sound reduction, while laminated variants significantly improve acoustic performance.

Budget and timeline constraints may favour toughened glass for simpler applications, with laminated glass justified where post-break safety or security is paramount.

Proper installation is crucial for safety glass performance and compliance with UK building regulations, and Fluid Glass follows a structured architectural glazing project process from design through to installation.

Professional measurement and installation ensures correct glass cut to size specifications, appropriate edge treatments, and compliance with safety standards. Incorrect installation compromises both safety performance and warranty coverage.

Fluid Glass provides comprehensive design and installation services for both toughened and laminated glass products, with a dedicated architectural glazing enquiry page to request quotes or technical guidance. Our quality assurance processes ensure all glass products meet relevant British and European standards, with full documentation and certification.

For technical consultations on glass thickness, desired shape, or bespoke specifications including irregular shapes with radius corners and cut outs, contact our specification team.

• British Standards Institution (BSI) – BS EN 12150 (thermally toughened safety glass), BS EN 14179 (heat-soaked toughened), BS EN 14449 (laminated safety glass), BS EN 356 (security glazing), BS EN 12600 (impact classification)

• Building Regulations Approved Document K – Requirements for safety glazing in critical locations

• Glass and Glazing Federation (GGF) – Technical guidelines for safety glass specification and installation

• Health and Safety Executive (HSE) – Workplace safety glass requirements

• Datsiou & Overend (2017) “The Strength of Aged Glass” – Academic research on glass strength degradation

• National Protective Security Authority (NPSA) – Glass and glazing systems quality assurance guidance

• Saint-Gobain Glass Technical Documentation – STADIP laminated glass specifications
