The Fluid Sliding Door brings refined simplicity and smooth performance to architectural openings. With ultra-slim 20mm sightlines and high-spec thermal and acoustic insulation, it allows large glass panels to glide effortlessly while maintaining a minimalist aesthetic. Whether opening onto a terrace, framing a garden, or connecting interior zones, it enhances space, light, and usability without visual compromise.
The Fluid Sliding Door features ultra-slim 20mm sightlines and supports panels up to 3m high, 2.5m wide, and 320kg. With a 30mm glazing capacity, it offers internal/external locking, minimal frames, and options including corner openings, pocket systems, hidden rails, motorisation, and trickle ventilation.
- Sightlines : 20 mm
- Max Leaf Height : 3 m
- Max Leaf Width : 2.5 m
- Max Glass Thickness : 30mm
- Max Leaf Weight : 320 kg
- External and internal locking
- Minimal head and base frame
- Integrated locking system in coupling
- Trickle ventilation
- Corner
- Hidden Rail
- Motorisation
- RAL colours
- Anodised finishes
- Thermal Coefficient Uw : 1,3 W/m² K
- Sound Insulation : Up to 41 dB
- Water Tightness : Class 7A
- Air Tightness : Class 4
- Wind Tightness : Class C5
- PAS24
The Fluid Sliding Door is designed for architects who seek clean lines, expansive views, and a seamless relationship between indoors and out. Its minimal framing and concealed threshold detail integrate smoothly into contemporary and heritage settings alike, delivering clarity and continuity across all elevations.
Slim by Design

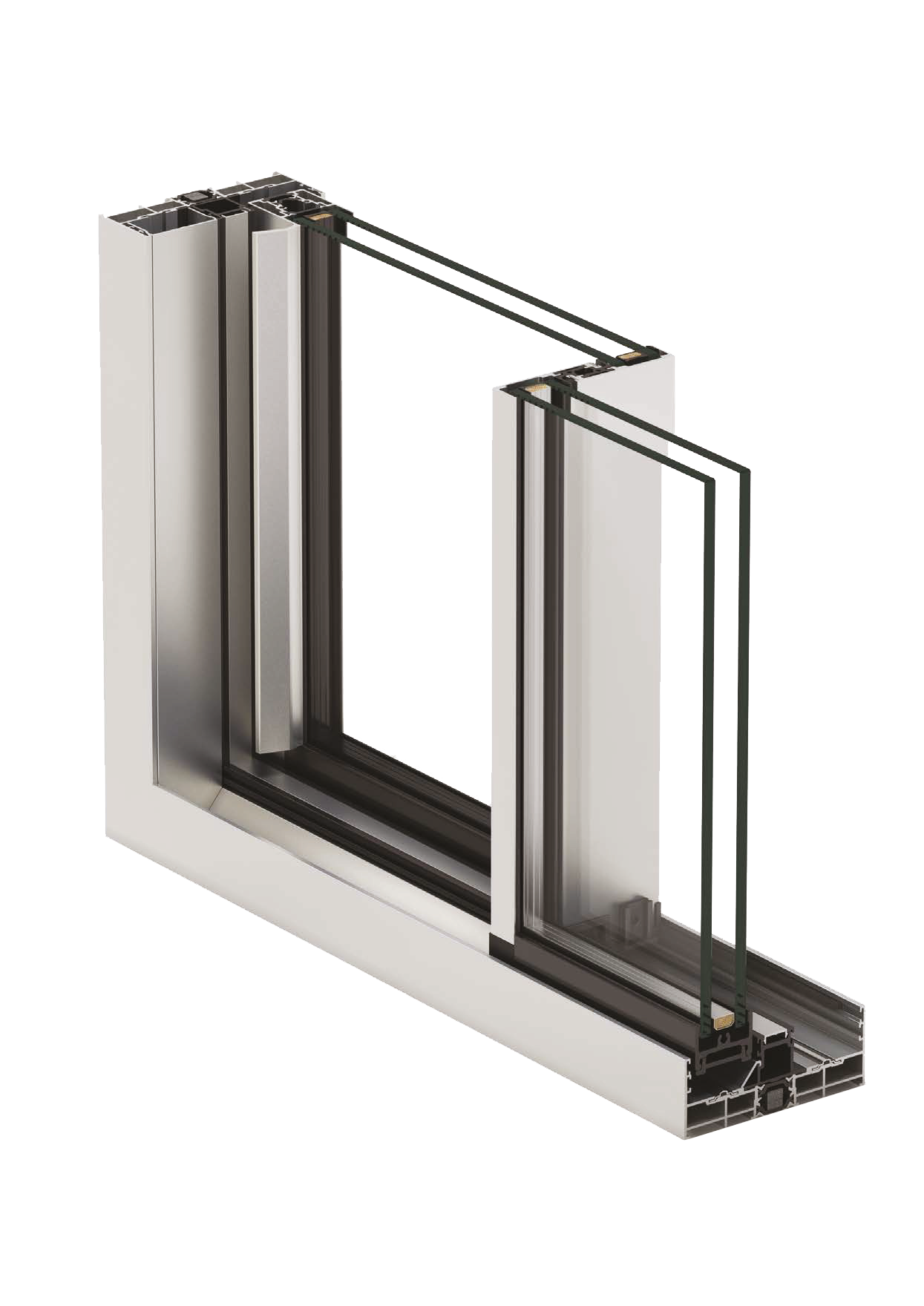

At just 20mm, the interlock sightlines allow for uninterrupted views, while the minimal head and base frames reduce visual bulk and maintain architectural rhythm.
Flexible Integration
Available in a wide range of configurations—including corner, pocket, and hidden rail systems—the Fluid Sliding Door offers versatility for both bold statements and subtle transitions within a project.
Available in a curated range of finishes, colours, and handle profiles, the design language is quietly luxurious—refined, understated, and endlessly customisable. Each door is a singular expression of design intent, precision-engineered for timeless architecture.
Built for performance, the Fluid Sliding Door combines precision engineering with best-in-class materials to deliver high-performance glazing in demanding environments.
Seamless Strength
With a glazing capacity up to 30mm and panel sizes up to 3m high and 2.5m wide, each leaf moves with stability and ease. Integrated locking in the coupling ensures discreet functionality, even in multi-panel configurations.
Tested Excellence
Achieving a thermal coefficient of Uw 1.3 W/m²K and sound insulation up to 41 dB, the system meets Class 7A water tightness, Class 4 air tightness, and Class C5 wind resistance. It is fully PAS24 compliant for security and suitable for both residential and commercial applications.
With its quiet detailing and refined form, the Fluid Sliding Door complements both restrained and expressive architectural languages. Every component has been designed to reduce clutter and maximise transparency, allowing light and materiality to define the space.
Custom Motion

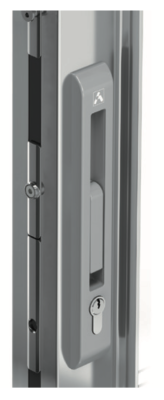

Smooth sliding action is achieved even at panel weights up to 320kg, with optional motorisation available for effortless operation. With internal and external locking, it’s both elegant and secure.
Visual Lightness, Lasting Impact
Flush tracks, concealed profiles, and integrated locking systems preserve the clarity of the opening, ensuring that the architecture—not the frame—takes focus. Options for RAL colours, anodised finishes, and trickle ventilation allow further tailoring to project context.
