The Fluid TT Window combines performance with refined minimalism. Designed for inward-opening applications, it offers exceptional thermal and acoustic insulation, making it ideal for modern living. Its slim 66mm sightlines and concealed handles preserve a clean, contemporary aesthetic, while flexible options allow it to adapt to diverse architectural needs.
The Fluid TT Window features a slim 66mm sightline and a 70mm frame depth, supporting leaf heights up to 3.5m and weights up to 160kg. With inward-only opening, an integrated hidden handle, and options like tilt-only operation, RAL colours, anodised finishes, and wood-effect powder coating, it combines sleek design with robust performance.
- Max Leaf Height standard : 2.4 m
- Max Leaf Width standard : 1.3 m
- Max Leaf Height HD : 3.5 m
- Max Leaf Width HD : 1.2 m
- Max Glass Thickness : 40mm
- Sightlines : 66mm
- Max Leaf Weight : 160 kg
- Frame depth : 70mm
- Integrated hidden handle
- Inward opening only
- Tilt only mechanism
- RAL colours
- Anodised finishes
- Wood effect powder coating
- Thermal Coefficient Uw : 1.0W/m2.K
- Air tightness : Class 4
- Wind resistance : Class C5
- Water tightness : Class E1650
- Sound insulation : 46 dB
- Security : PAS24/RC2

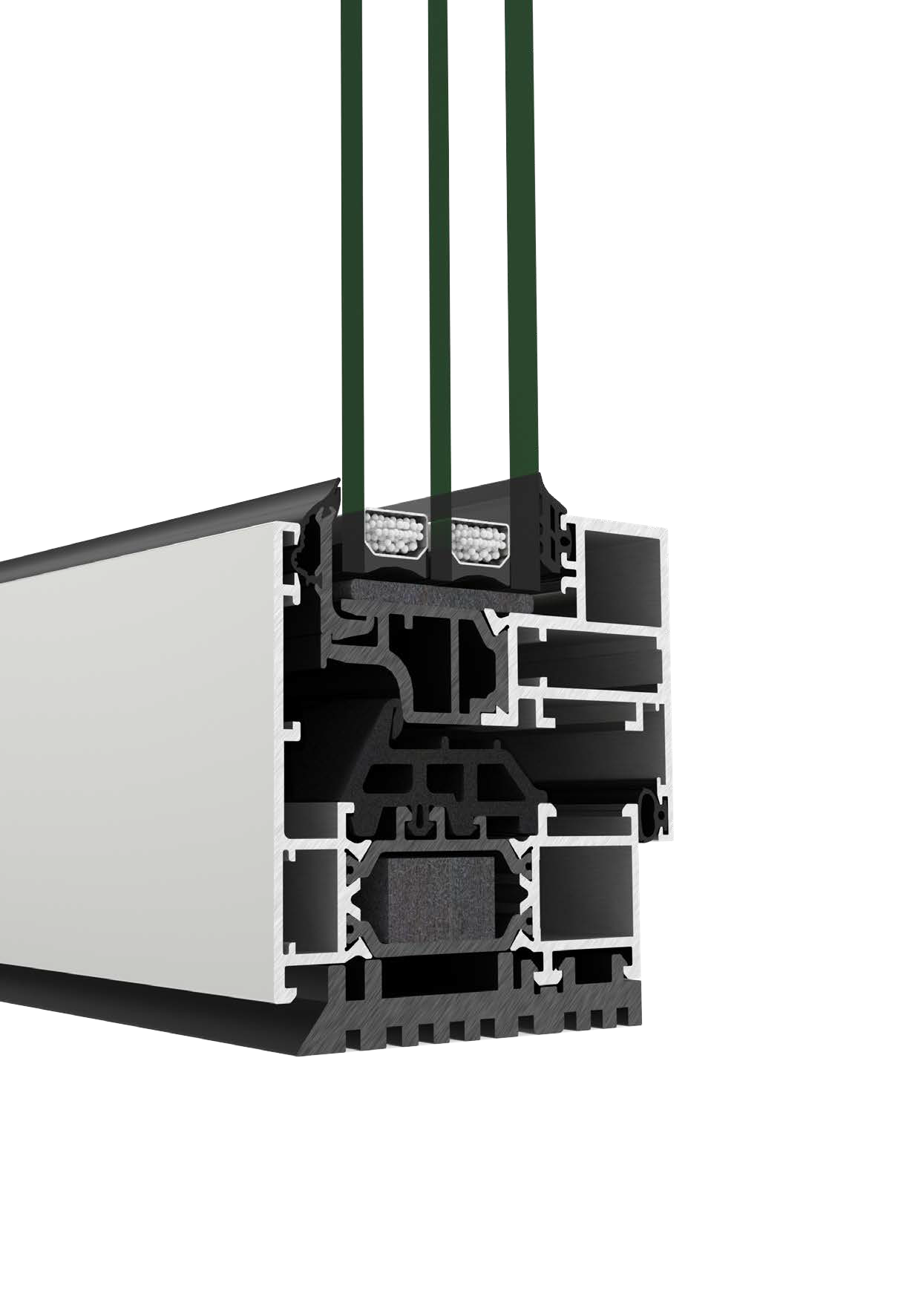

With a 40mm glazing capacity, concealed insulation foam, and a hidden sash profile, the Fluid TT Window delivers sleek aesthetics with outstanding thermal and acoustic performance.
- 40 mm Glazing Capacity
- Hidden Sash Profile
- Insulation Foam Hidden
The Fluid TT Window has been carefully engineered to align with contemporary architectural intent while honouring classic proportions. Its inward-opening design supports clean, cohesive elevations, and its slim profiles allow for maximum light and transparency without compromising performance or scale.
A Purist’s Approach
The Fluid TT Window is purpose-built for clean, coherent façades. Its inward-opening configuration preserves the purity of external finishes, offering flexibility for architects seeking minimal external disruption.
Elevated Functionality
With leaf heights up to 3.5 metres and a weight capacity of 160kg, the system brings generous dimensions into refined form. The 70mm frame depth and large glazing capacity create seamless, proportionally balanced openings in both new builds and renovations.
The Fluid TT Window features a fully concealed handle and hidden hinges, preserving the appearance of a fixed pane. With no visible hardware inside or out, the design maintains visual purity, enhancing the window’s minimalist character and architectural elegance.
The Fluid TT Window is designed exclusively for inward opening, offering a refined, contemporary solution with flexible functionality. It is available with either a tilt-only mechanism or a tilt-and-turn configuration, allowing for controlled ventilation or full access when needed. This versatility makes it ideal for a range of applications—from secure upper-floor installations to modern open-plan spaces—while maintaining clean lines and minimal visual disruption.
Behind its minimalist appearance lies a technical system of outstanding performance. Every detail of the Fluid TT Window has been developed to enhance energy efficiency, durability, and user experience, while maintaining the crisp, clean aesthetic required of modern fenestration.
Discreet Strength
A hidden sash profile and integrated handle maintain the system’s minimal look, while supporting large-scale glazing and robust opening functionality. The tilt-turn mechanism allows inward ventilation and ease of cleaning, ideal for multi-storey or hard-to-reach applications.
Advanced Performance, Seamlessly Delivered
The thermally broken aluminium frame achieves a Uw value of 1.0 W/m²K, with acoustic insulation up to 46 dB. The system offers Class C5 wind resistance, Class E1650 water tightness, and is fully compliant with PAS24/RC2 security standards.
At the heart of the Fluid TT Window is a dedication to clarity and control. Its discreet components and refined detailing offer a canvas for design expression, allowing the architecture to take centre stage while ensuring flexibility in finish, function, and feel.
Minimal Disruption, Maximum Impact
From its seamless handle integration to its inward-only opening logic, the Fluid TT Window reduces visual noise while enhancing spatial rhythm. Available in a range of RAL colours, anodised finishes, and timber-effect coatings, it adapts to suit both bold and subtle design intent.
Tailored for Control
Offered with tilt-only or tilt-turn configurations, the system delivers ventilation, access, and control with elegance. Its coherent aesthetic makes it suitable for repetition across elevations, maintaining visual unity across large or mixed-use developments.
